Marantz NR1605/U1B - Page 93

OPTION OPTION
OPTION
OPTION
OPTION
BKT4142
OPTION
OPTION
¡Ü
¡Ü
¡Ü
¡Ü
After primary side rectification
(Caution: High voltage, electric shock)
Primary drain
(Caution: High voltage, electric shock)
After secondary rectifications
A B
C

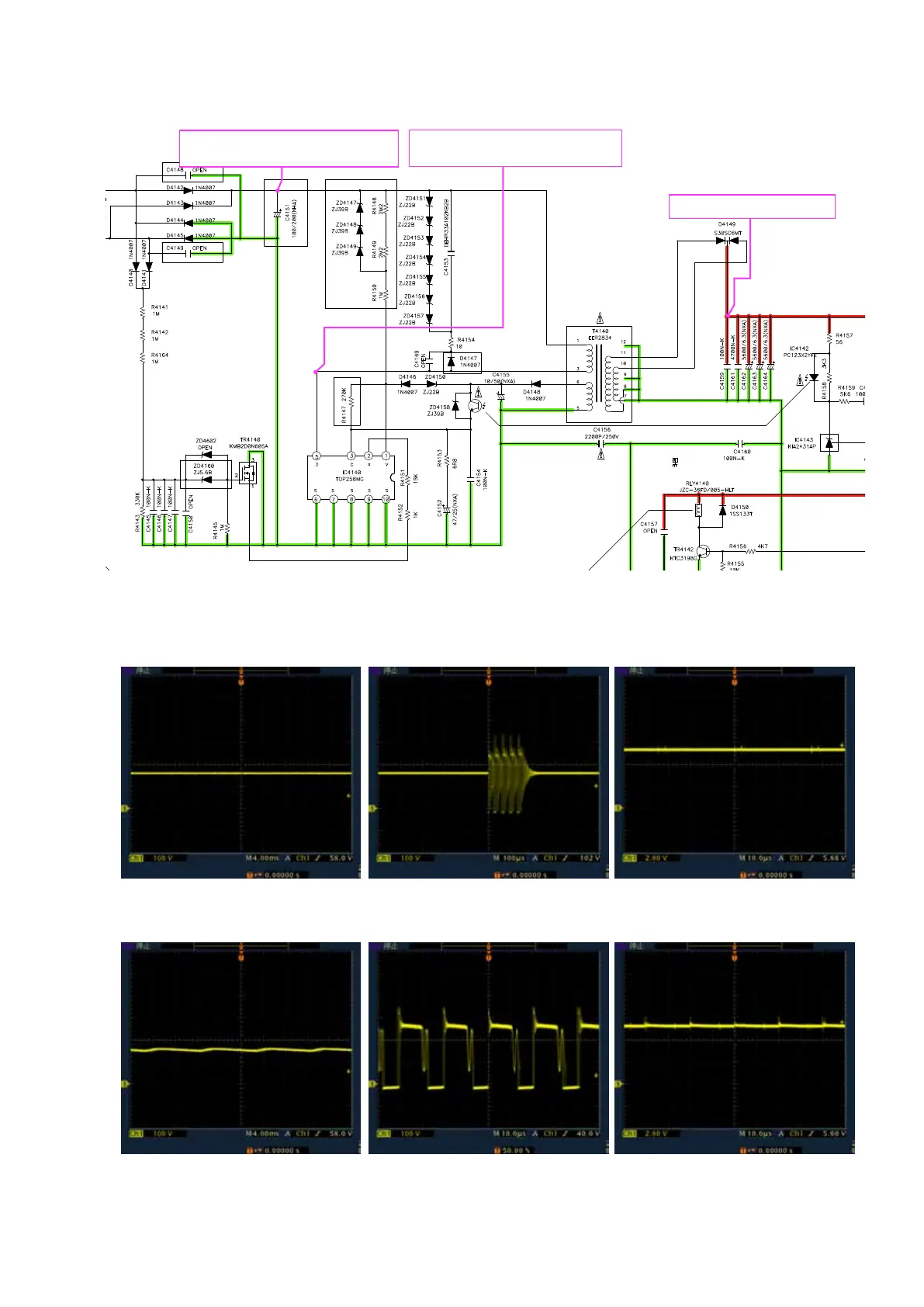

Operation waveform for each part
A B C
A B C
SMPS unit
(Unloaded)
Set
