Marantz NR1606/U1B - 3. HDMI PCB; 4. SPK PCB

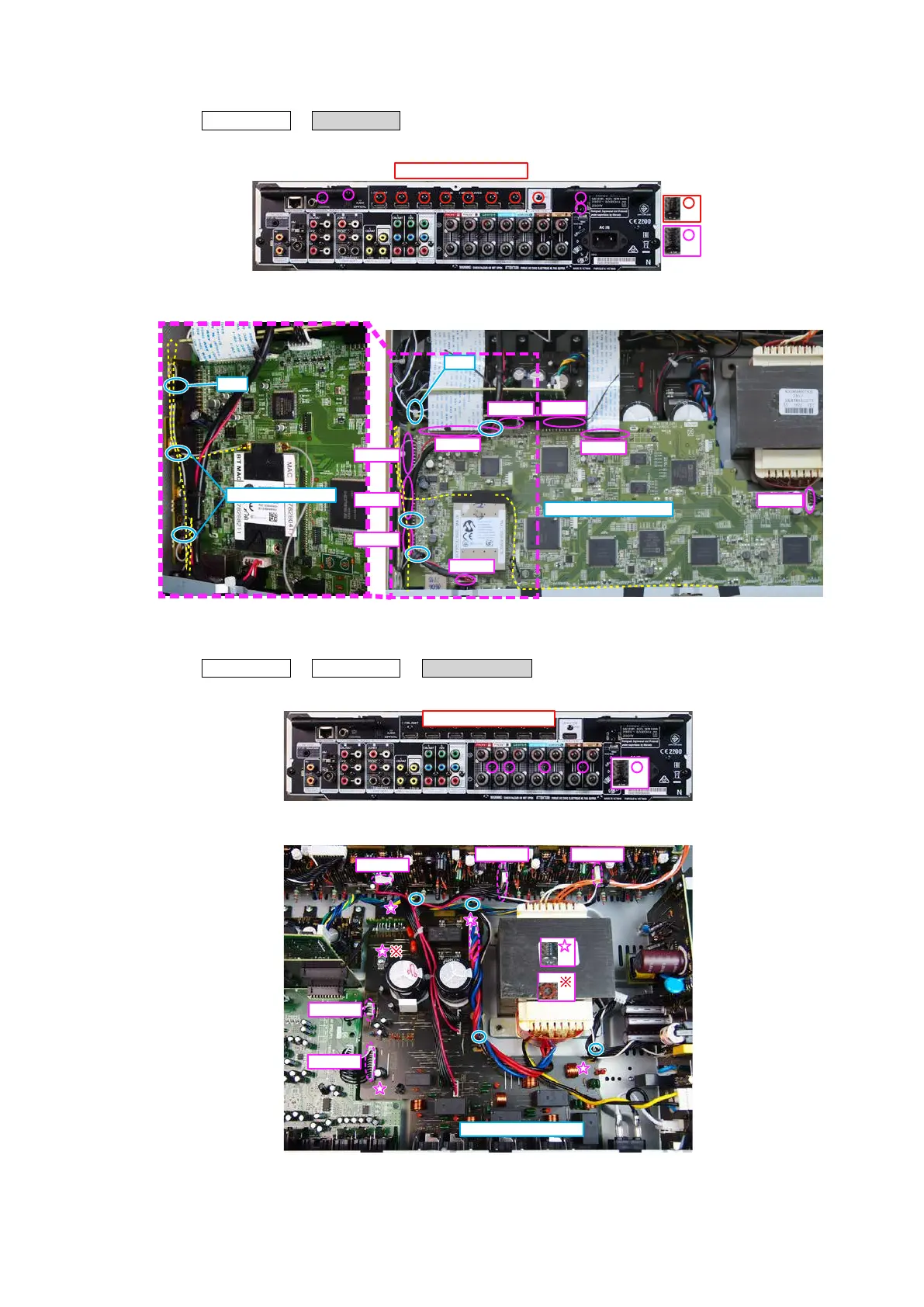

3. HDMI PCB
Proceeding : TOP COVER
→
HDMI PCB
(1) Remove the screws.
(2) Remove the CORD HOLDER. Cut the wire clamp, then remove the connector. Remove the FFC.
4. SPK PCB
Proceeding : TOP COVER
→
HDMI PCB
→
SPK PCB
(1) Remove the screws.
(2) Remove the screws. Remove the CORD HOLDERs and connector wires.
Shooting direction: A
x8
x4
N1033
FFC
FFC
N1019
N1039
N1008
CORD HOLDER
CORD HOLDER x 3
CUT
CUT
N1014
N1016
N1020
Shooting direction: A
x4
x5
x1
CP4802
CP4000
CP4002
CP4801
CP4803
CORD HOLDERx4
s
15
