Marantz NR1606/U1B - 5. TRANS; 6. SMPS PCB

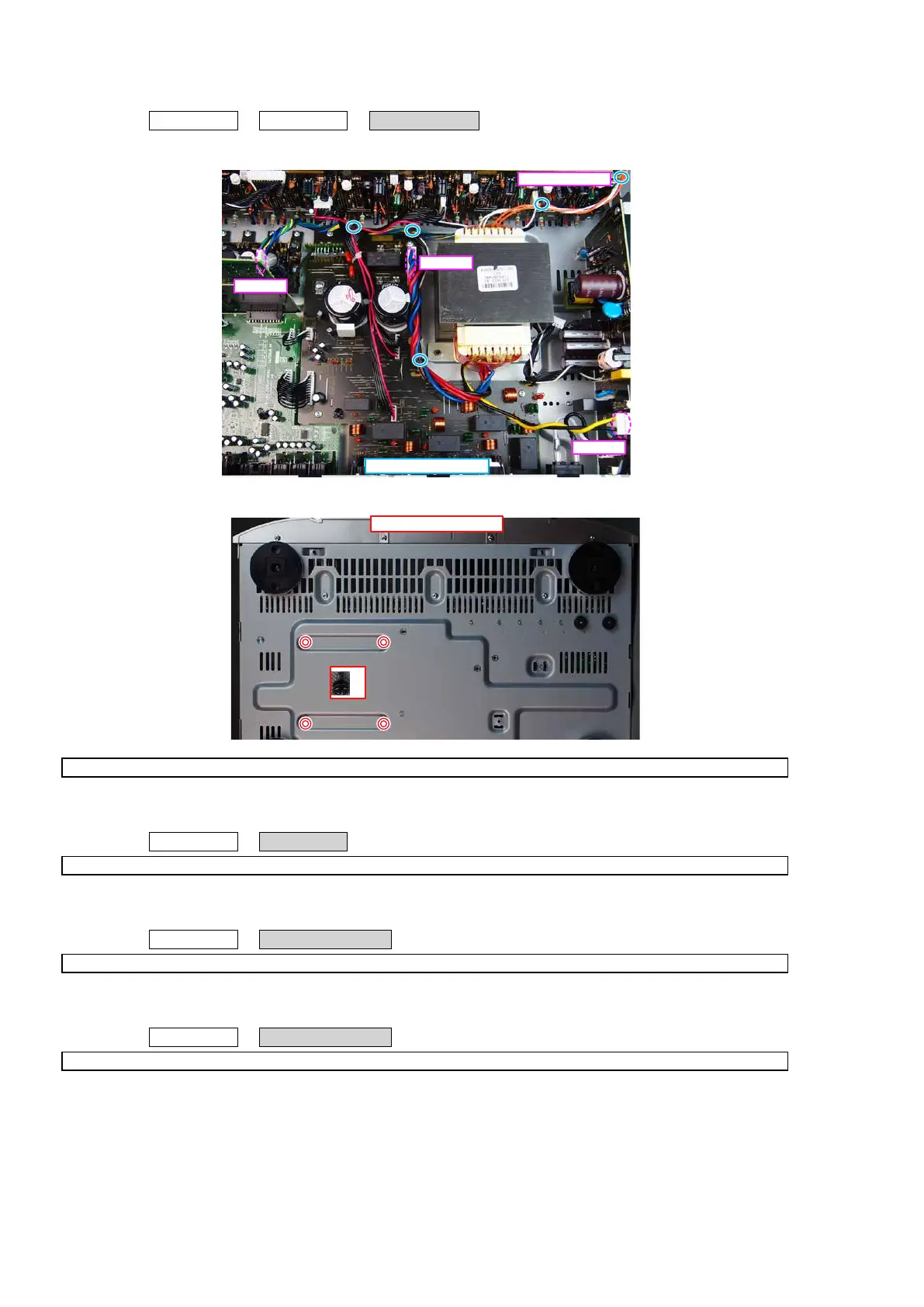

5. TRANS
Proceeding : TOP COVER
→
HDMI PCB
→
TRANS
(1) Remove the CORD HOLDERs and connector wires.
(2) Remove the screws.
NOTE : It will separate and TRANS will fall from SET, if screws is removed.
6. SMPS PCB
Proceeding : TOP COVER
→
SMPS PCB
See "EXPLODED VIEW" for instructions on removing the SMPS PCB.
7. REG PCB
Proceeding : TOP COVER
→
REG PCB
See "EXPLODED VIEW" for instructions on removing the REG PCB.
8. AV PCB
Proceeding : TOP COVER
→
AV PCB
See "EXPLODED VIEW" for instructions on removing the AV PCB.
CP4001
from CP4401
CP4607
CP4142
CORD HOLDERx5
View from the bottom
x4
16
