1
1. TECHNICAL SPECIFICATIONS
Power output (20 Hz ~ 20 kHz simultaneous drive of both channels)
................................................................. 90W x 2 (8
Ω
load)
............................................................... 140W x 2 (4
Ω
load)
Total harmonic distortion (20Hz ~ 20kHz simultaneous drive of both
channels, 8
Ω
load) .................................................................. 0.05%
Power band width (8
Ω
load, 0.05%) ..............................5Hz ~ 40kHz
Frequency response (CD, 1W, 8
Ω
load .......................5Hz ~ 100kHz
Dumping factor (8
Ω
load, 20Hz ~ 20kHz).................................... 100
Input sensitivity/Input impedance
PHONO (MC) .......................................................... 300µV/100
Ω
PHONO (MM).......................................................... 3.2mV/47k
Ω
CD/LINE/RECORDER ........................................... 240mV/20k
Ω
Output voltage/Output impedance
PRE OUT .................................................................. 1.7 V/330
Ω
Maximum allowed PHONO input (1kHz)
MC ..................................................................................... 15mV
MM ................................................................................... 150mV
RIAA deviation (20Hz ~ 20kHz) ....................................... ±0.5dB
S/N (IHF-A, 1W, 8
Ω
load)
PHONO (MC) ............................................... 77dB (0.5mV input)
PHONO (MM).................................................. 85dB (5mV input)
CD/LINE/RECORDER ................................ 90dB (500mV input)
Tone control
Bass (50Hz) ..................................................................... ±10dB
Treble (20kHz) ...................................................................±10dB
Power requirement .........................................AC 100V 50/60Hz [/F]
........................................ AC 220V 50/60Hz [/K]
..............................................AC 110V 60Hz [/L]
..........................................AC 230V 50Hz [/N/S]
Power consumption
(EN60065).......................................................................... 220W
(4
Ω
, 140W x 2 output)....................................................... 550W
Accessories
Remote controller...................................................................... 1
AAA batteries ............................................................................ 2
Detachable AC power cable...................................................... 1

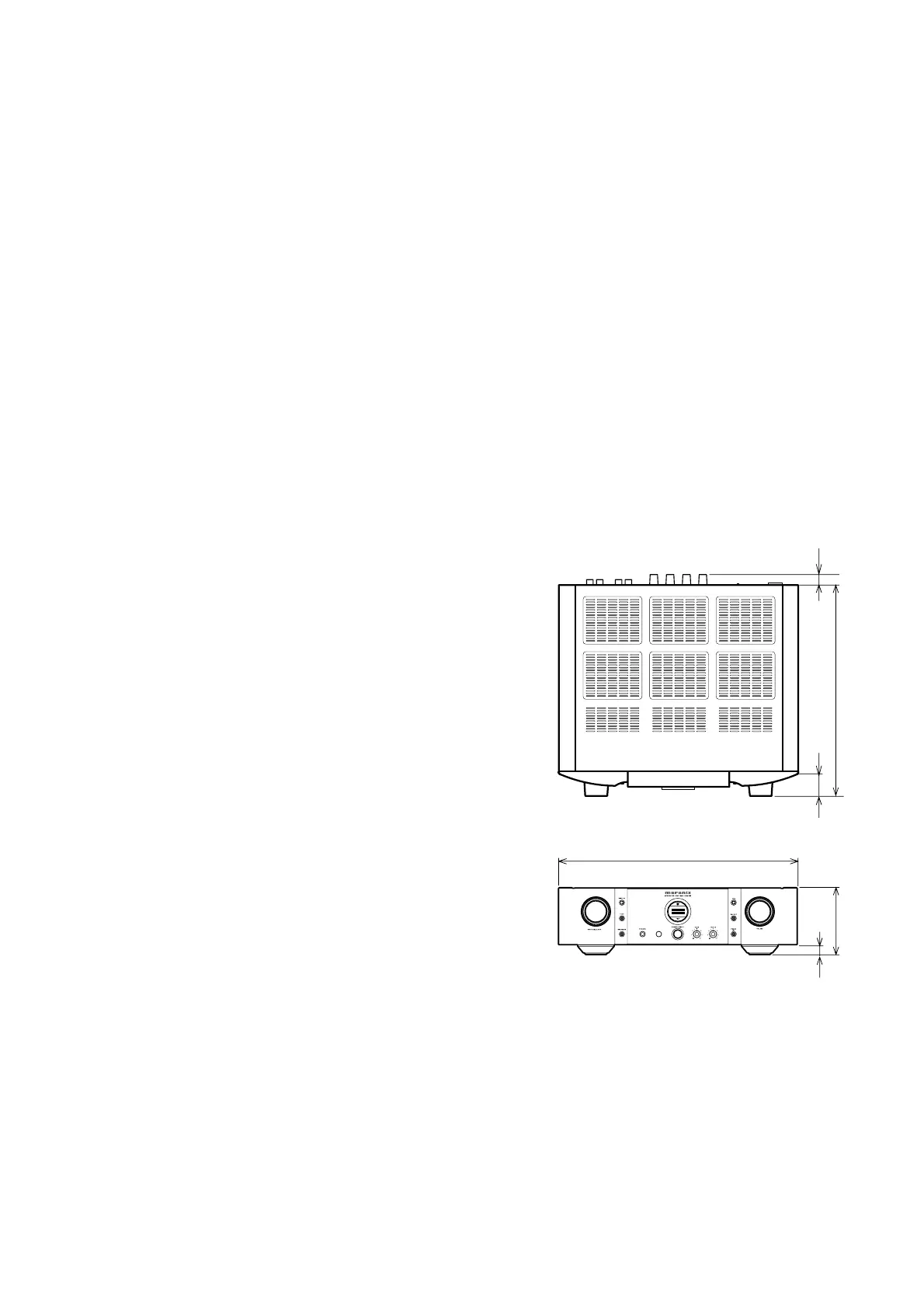

Maximum outer dimensions (Amp)
Width ............................................................................... 440mm
Height.............................................................................. 123mm
Depth .............................................................................. 444mm
Weight (Amp)...........................................................................18.0kg
419
43
123
440
25
18
2. CAUTION
The layout of this amplifi er is well concerned for sound quality.
1. When screws and washers are removed, those parts must
be set to the same places.
2. When wires are removed, the wires must be installed in the
same roots, same places.
3. Do not hold the side panel (007D) to move the unit when
the unit is disassembled.
2.
ද
ද
࢘ೞƸ᪦ឋǛᎋƠƨȬǤǢǦȈƴƳƬƯƍLJƢŵ
1.
ȍǸǍȯȃǷȣ󰩰ǛӕǓٳƠƨئӳŴΨƷˮፗƴӕǓ˄ƚ
ƯƘƩƞƍŵ
2.
ȯǤȤ󰩰ǛӕǓٳƠƨئӳƷᣐዴȫȸȈƸŴΨƷȫȸȈᡫ
Ǔƴ৏ƠƯƘƩƞƍŵ
3.
࢘ೞǛЎᚐƠƨཞưᆆѣƢǔƱƖƸŴǵǤȉȑȍȫ
(007D)
ǛƨƳƍưƘƩƞƍŵ
