Marantz PM-15S1 Service Manual

5
࣏ᙲೞ֥
࣏ᙲೞ֥
᳽
Windows PC (OS:Windows2000
LJƨƸ
WindowsXP)
ư
COM port
ƷƋǔNjƷ
᳽
RS232C
ǹȈȬȸȈDZȸȖȫ
(9pin
ȡǹ
- 9pin
ȡǹ
)
᳽ ȞǤdzȳǢȃȗȇȸȈȇǣǹǯ
(90M-PM15S1CDR)
᳽ ȞǤdzȳǢȃȗȇȸȈǭȃȈ
(
ᢿԼဪӭ
: 90M-PM11S1JIG)
5.1.
5.1.
ዓ׋
ዓ׋
Necessary Equipment
• Windows PC (Windows2000 or WindowsXP) with COM
port
• RS232C cable straight type (9pin female - 9Pin female)
• Update Disc (90M-PM15S1CDR)
• DATA UPDATE KIT (part no.: 90M-PM11S1JIG)

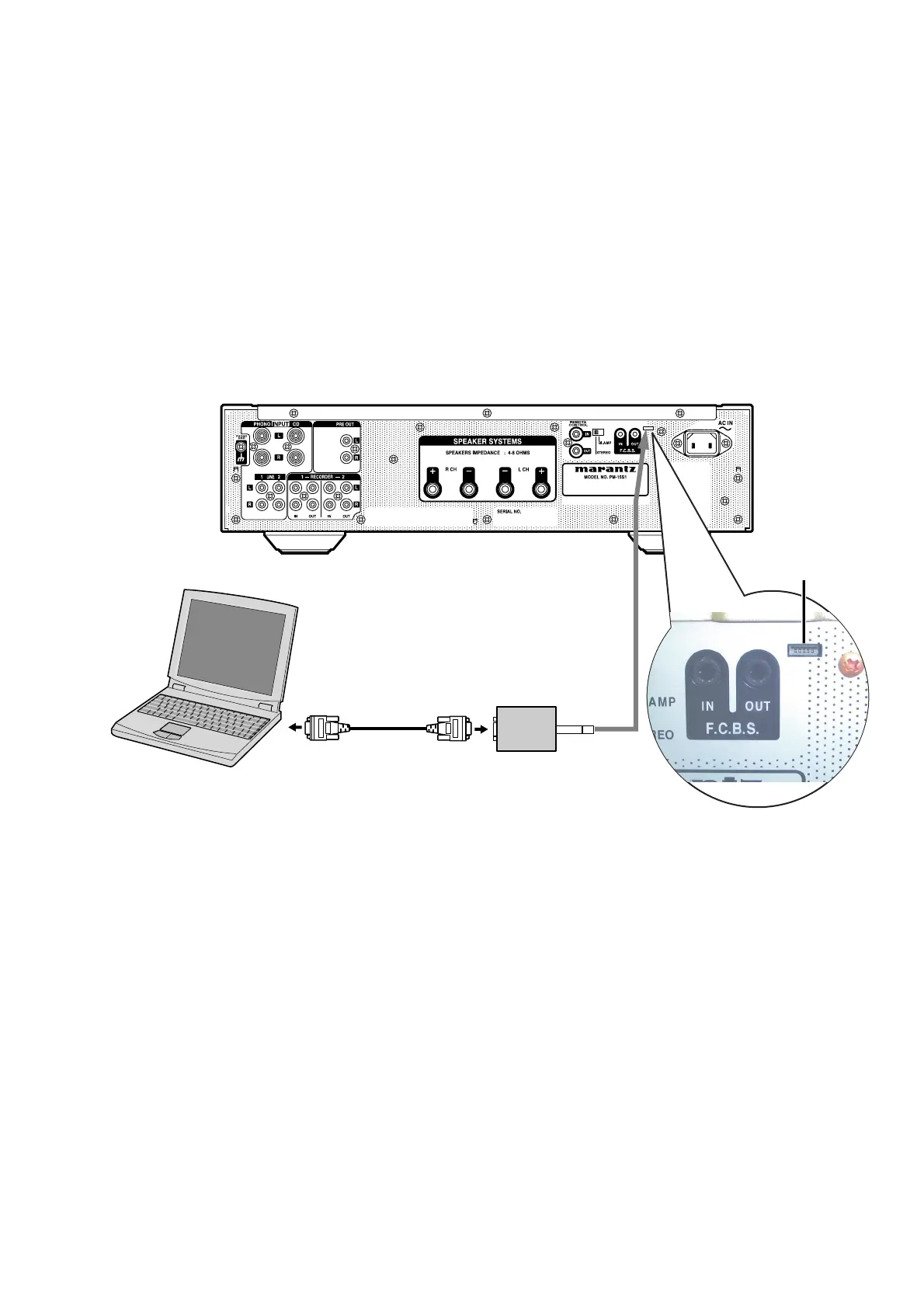

5.1. Connection
RS232C Dsub-9 pin cable
(female to female/Straight cable)
DATA UPDATE KIT
(Parts No. 90M-PM11S1JIG)
PC (Windows 2000, XP )
with RS-232C port
INSERT POINT
Contact is the bottom
5. MAIN MICROPROCESSOR (QU01)
UPDATE PROCEDURE
5. MAIN MICROPROCESSOR (QU01)

ǢȃȗȇȸȈ૾ඥ
ǢȃȗȇȸȈ૾ඥ
