7
ENGLISH

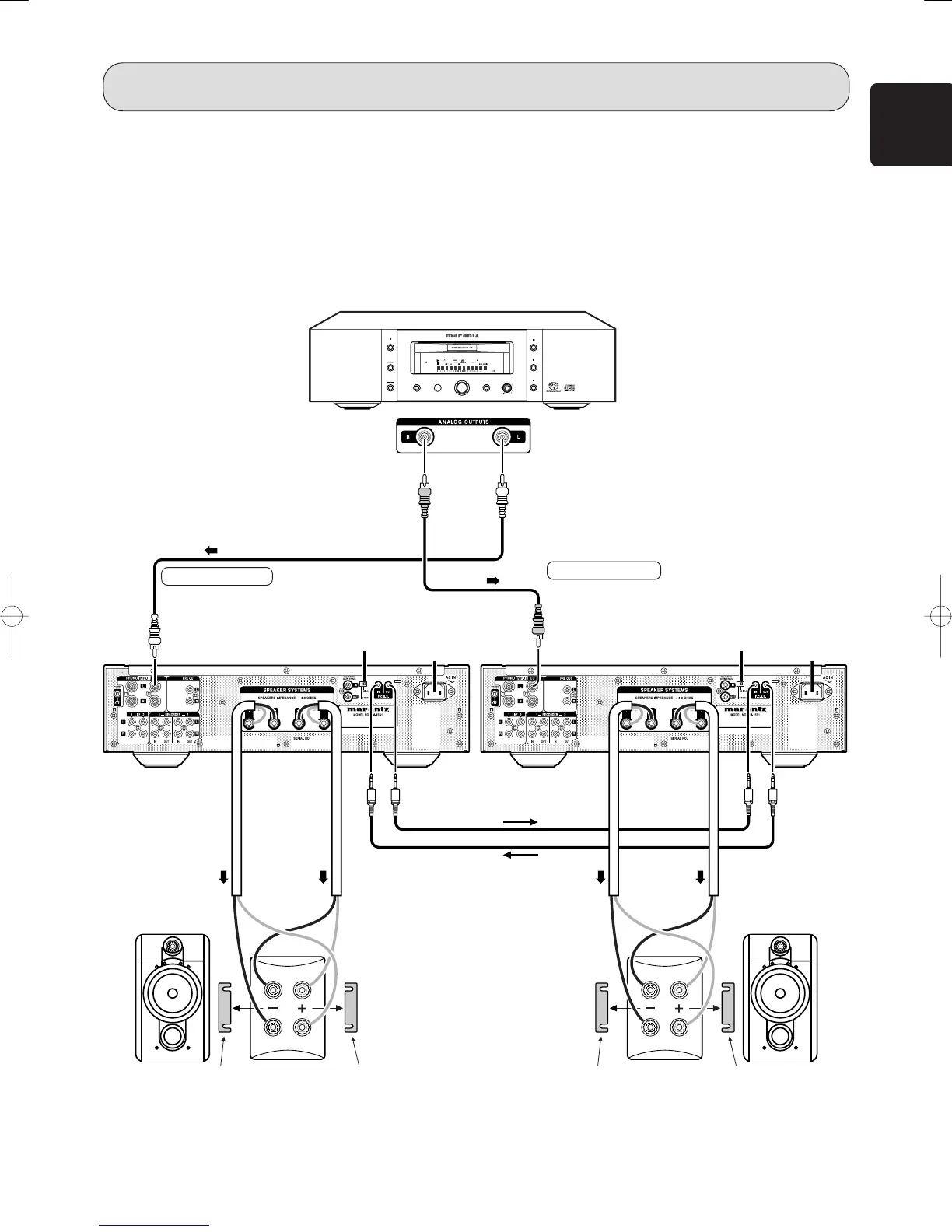

Connection Example 3: Complete Bi-Amp Connection for Stereo Playback Using 2 PM-15S1
The speaker system must support a bi-amp connection, therefore to determine whether your speakers do or not, check in the
instruction manual that came with your speakers or contact the manufacturer. The two PM-15S1s are connected by FCBS. For the
FCBS connection, prepare 2 portable audio connection cables with monaural ⇔ monaural miniplugs or stereo ⇔ stereo miniplugs
as described “ABOUT FCBS” on pg. 16. Set the ID numbers for the PM-15S1 units as explained “HOW TO SET ID” on pg. 19.
When the PM-15S1 of ID 1 is operated, that of ID 2 will operate in sync.
PAUSE
STOP
PLAY
DISPLAY OFF
OPEN/
SOUND
POWER ON/OFF
SUPER AUDIO CD PLAYER SA-15S1
CLOSE
MODE
PONES LEVEL
MF
/
HF
LF
MF
/
HF
LF
For L CH speaker
Set PM-15S1 to ID 1.
Set SPEAKER button on front
panel in ON position.
Set to “BI-AMP”.
For R CH speaker
Set PM-15S1 to ID 2.
Set SPEAKER button on front
panel in ON position.
To p o w e r
outlet
Remove
shorting bar.
L CH speaker Remove
shorting bar.
Remove
shorting bar.
R CH speaker Remove
shorting bar.
CONNECTIONS
Set to “BI-AMP”.
To p o w e r
outlet
PM-15S1NENG(P07-P24)A4 05.3.4, 1:04 PMPage 7 AdobePageMaker6.5J/PPC
