6
CONNECTIONS

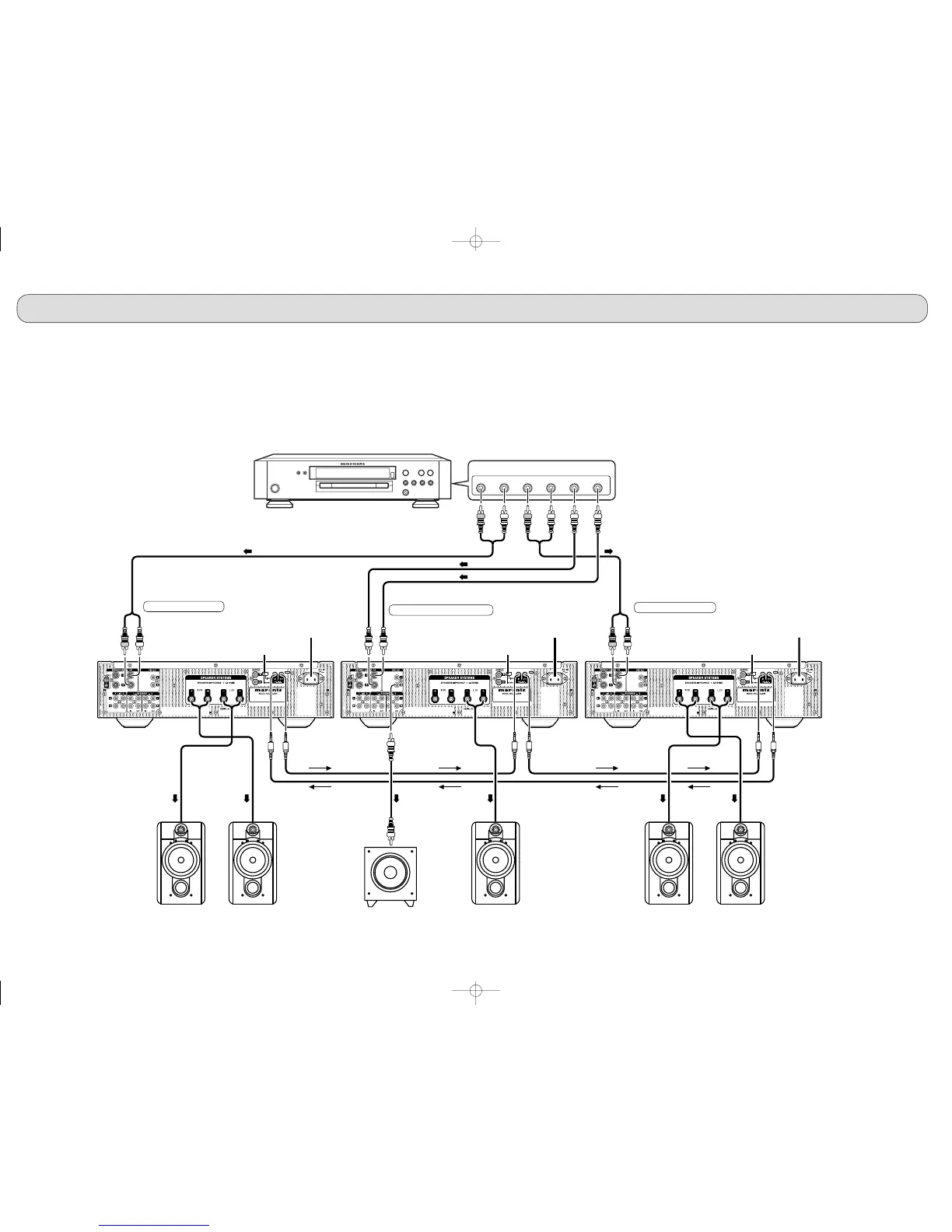

Connection Example 2: Basic Connection for 5.1 Multi-Channel Playback Using 3 PM-15S1
The three PM-15S1s are connected by FCBS. For the FCBS connection, prepare 3 portable audio connection cables with monau-
ral ⇔ monaural miniplugs or stereo ⇔ stereo miniplugs as described “ABOUT FCBS” on pg. 16. Set the ID numbers for the PM-
15S1 units as explained “HOW TO SET ID” on pg. 19. When the PM-15S1 of ID 1 is operated, those of ID 2 and ID 3 will operate
in sync. If using an active subwoofer, see the instruction manual that came with the subwoofer for connection and positioning
instructions.
FRONT R FRONT L SURROUND R
MULTI CHANNEL AUDIO OUT
SURROUND L SUB-WOOFER CENTER
SACD multi-channel player, etc.
For front L/R speakers
Set PM-15S1 to ID 1.
Set SPEAKER button on
front panel in ON position.
Set to “STEREO”.
Set to “STEREO”.
Set to “STEREO”.
For center speaker or subwoofer
Set PM-15S1 to ID 2.
Set SPEAKER button on front
panel in ON position.
For surround speakers
Set PM-15S1 to ID 3.
Set SPEAKER button on
front panel in ON position.
To power outlet
To power outlet
To power outlet
L CH front speaker
R CH front speaker
To line input jack
Active subwoofer
Front center speaker
L CH surround speaker R CH surround speaker
PM-15S1NENG(P05-P06)395mm 05.2.21, 10:28 AMPage 6 AdobePageMaker6.5J/PPC
To Next Page
