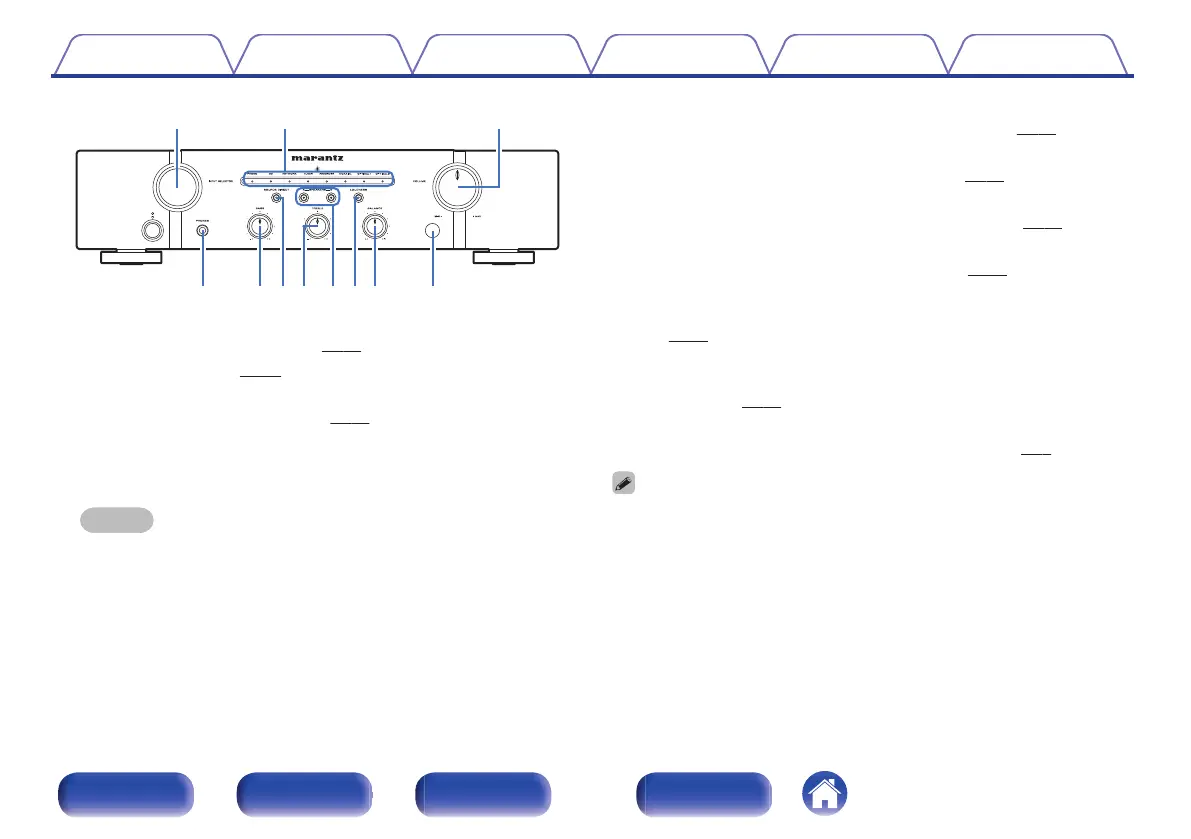

C
Input source select knob (INPUT SELECTOR)
This selects the input source. (v
p. 27)
D
Input indicators (v p. 27)
E
VOLUME knob
These adjust the volume level. (v
p. 27)
F
Headphones jack (PHONES)
Used to connect headphones.
Turn off speaker output when using headphones.
NOTE
0
To prevent hearing loss, do not raise the volume level excessively when using
headphones.
G
BASS control knob
This setting adjusts the volume level for the bass. (v
p. 27)
H
SOURCE DIRECT button/indicator
This turns SOURCE DIRECT mode on/off. (v p. 28)
I
TREBLE control knob
This setting adjusts the volume level for the treble. (v
p. 27)
J
Speaker switching buttons/indicators (SPEAKERS A/B)
These select the speaker for audio output. (v
p. 27)
K
LOUDNESS button/indicator
This turns the LOUDNESS mode on/off.
(v
p. 28)
L
BALANCE control knob
This adjusts the balance of the volume output from the left and right
speakers. (v p. 27)
M
Remote control sensor
This receives signals from the remote control unit. (v
p. 5)
0
7, 9, a and b can be adjusted when 8 is off (SOURCE DIRECT mode is off).
