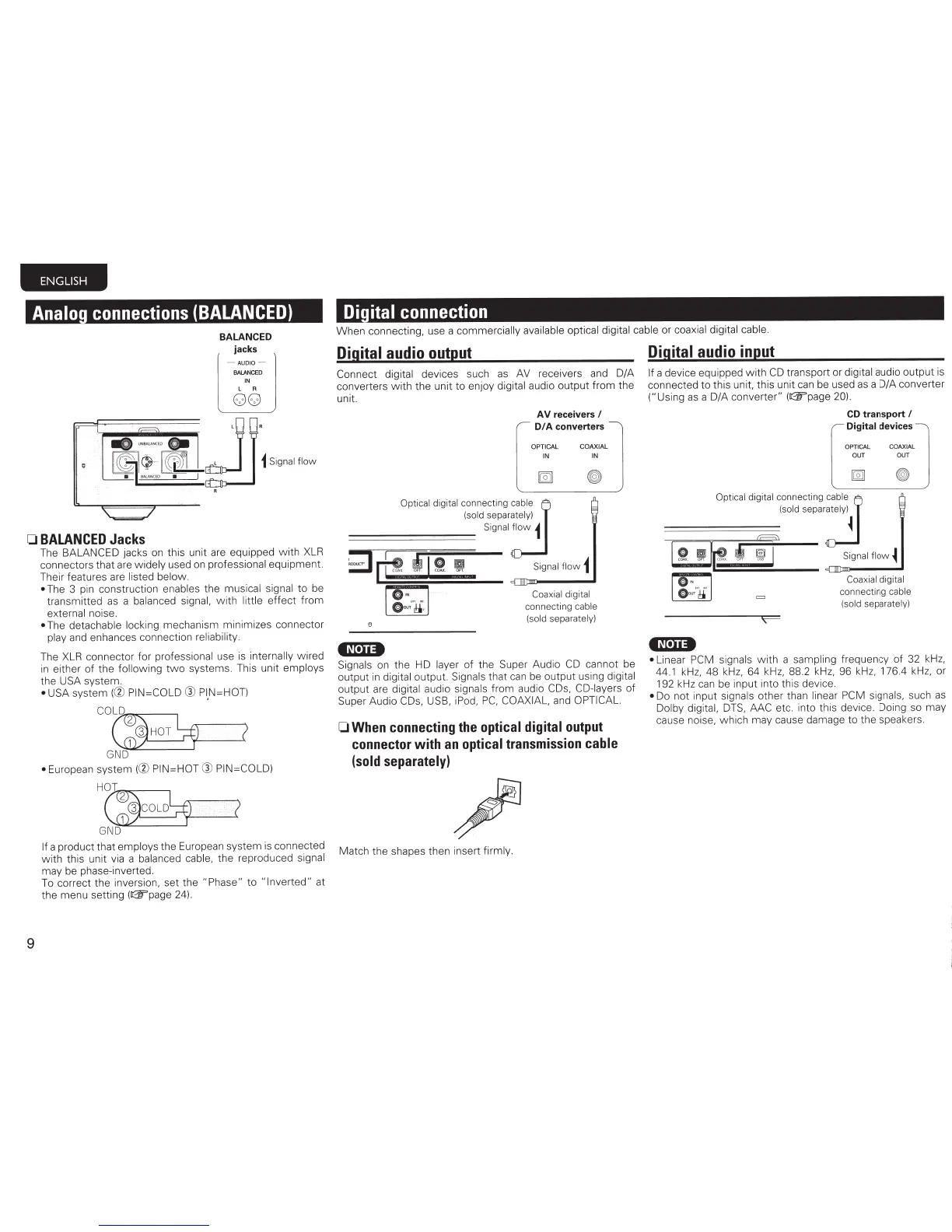

Marantz SA-11S3 - Digital and Balanced Connections; Analog Balanced Connections; Digital Connection

ENGLISH
Analog
connections
(BALANCED)
BALANCED
jacks
- AUDIO -
BAlANCED
IN
L R
gg
0
BALANCED
Jacks
9
The
BALANCED
jacks on this unit are equipped
with
XLR
connectors that are
widely
used
on
professional
equipment.
Their features are
listed below.
•
The
3
pin construction
enables
the musical signal
to
be
transmitted
as
a balanced signal,
with
little
effect
from
external
noise.
•
The
detachable locking
mechanism minimizes connector
play and enhances connection
reliability.
The
XLR
connector for professional
use
is
internally
wired
in
either of the
following
two
systems. This unit
employs
the USA system.
•
USA system
((?)
PIN=COLD@
PI,N=HOT)
COLD~._---,
~HOT
Lry
)
GN
D
• European system((?)
PIN=HOT@
PIN=COLD)
H
OT,!..,....----,
~COLDl-rJ)
:< (
GND
If
a product that
employs
the European system
is
connected
with
this unit
via
a
balanced cable, the reproduced
signal
may be phase-inverted.
To correct the inversion, set the
"Phase"
to
"Inverted"
at
the menu setting
(02W'page
24).
Di
ital
connection
When connecting, use a
commercially available optical digital cable
or
coaxial digital cable.
Digital
audio
output
Connect digital devices such
as
AV receivers and D/A
converters
with
the unit to enjoy
digital
audio output from the
unit.
•N·Ii•
A V receivers
I
Dl
A converters
OPTICAL
IN
Optical digital
connecting
cable
(sold separately)
Signal
flow
~
COAXIAL
IN
Signal
flow
~
Coaxial digital
connecting
cable
(sold separately)
Signals
on
the
HD
layer
of the Super Audio
CD
cannot
be
output
in
digital
output.
Signals
that
can
be output using
digital
output are
digital audio signals from audio
COs,
CO-layers
of
Super Audio
COs,
USB,
iPod,
PC,
COAXIAL,
and
OPTICAL.
0
When
connecting
the
optical
digital
output
connector
with
an
optical
transmission
cable
(sold
separately)
Match the shapes then insert
firmly.
Digital
audio
input
If
a device equipped
with
CD
transport or
digital
audio output is
connected to this unit, this unit
can
be
used
as
a D/A converter
("Using
as
aD/A
converter"
(02W'page
20).
4N•U»
CD
transport
I
Digital
devices
OPTICAL COAXIAL
OUT OUT
Opt1cal
d1g1tal
connect1ng
srable
(sold separately)
~
Signal
flow
~
Coaxial digital
connecting
cable
(sold separately)
•
Linear
PCM signals
with
a sampling
frequency of 32
kHz,
44.1
kHz,
48
kHz,
64
kHz,
88.2
kHz,
96
kHz,
176.4
kHz,
or
192 kHz
can
be
input into this device.
•
Do not input signals
other than linear PCM signals,
such
as
Dolby digital,
DTS,
AAC
etc. into this device. Doing so may
cause noise, which may cause damage to the speakers.
