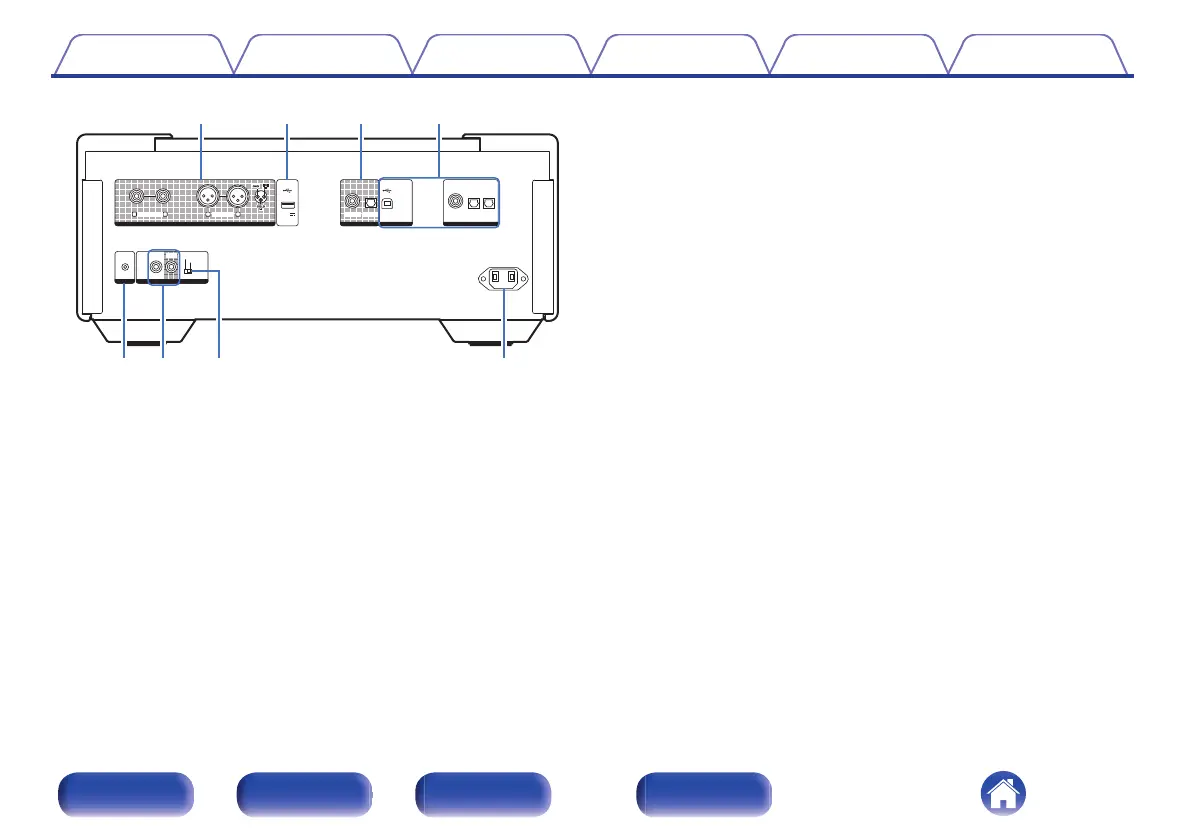

LINE OUT connectors
Used to connect devices equipped with analog audio inputs connectors
or an external amplifier. (v p. 19)
B
USB port (T)
This is used to connect USB storages (such as USB flash drives).
(v p. 24)
C
DIGITAL AUDIO OUT connectors (COAXIAL/OPTICAL)
Used to connect an amplifier or D/A converter that has a digital input
connectors. (v p. 21)
D
DIGITAL AUDIO IN connectors
0
Used to connect devices equipped with digital audio output
connectors. (v p. 22)
0
Used to connect a computer. (v p. 23)
E
FLASHER IR IN jack
Used to connect a control box, etc. (v p. 25)
F
Remote control input/output connectors (REMOTE CONTROL)
Used to connect to a Marantz audio device that is compatible with the
remote control function. (v p. 26)
G
EXTERNAL/INTERNAL switch
Turn this switch to “EXTERNAL” to operate the unit by pointing the
remote control at the amplifier connected to this unit using the remote
control connection. (v p. 26)
H
AC inlet (AC IN)
Used to connect the power cord. (v p. 28)
