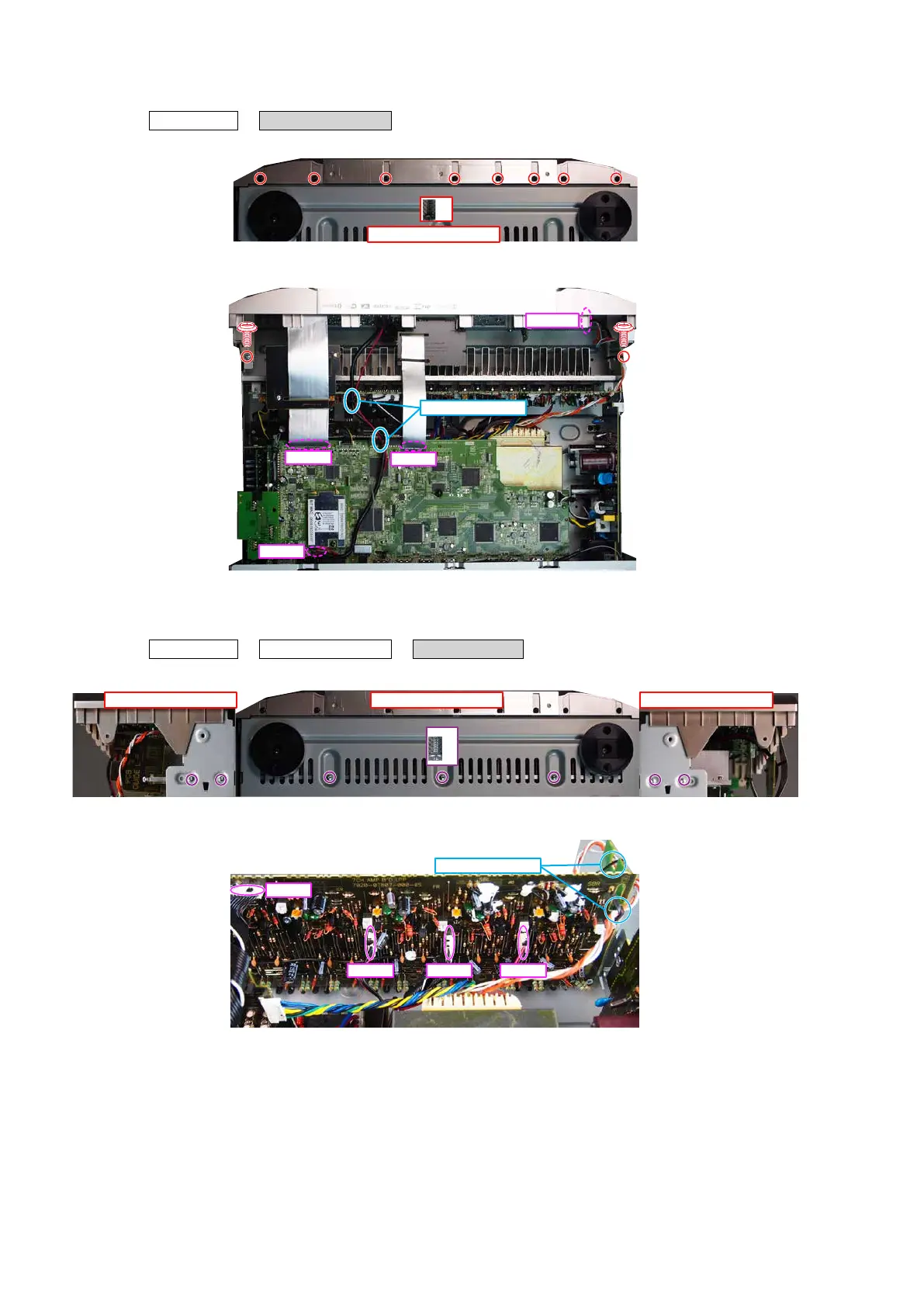

Marantz SR5010/U1B - Front Panel Assy; Radiator Assy

1. FRONT PANEL ASSY
Proceeding : TOP COVER
→
FRONT PANEL ASSY
(1) Remove the screws.
(2) Remove the screws. Remove the CORD HOLDERs and the connector wires. Remove the FFC.
2. RADIATOR ASSY
Proceeding : TOP COVER
→
FRONT PANEL ASSY
→
RADIATOR ASSY
(1) Remove the screws.
(2) Remove the CORD HOLDERs and connector wires.
View from the bottom
x8
FFC
FFC
N1008
CP4400
CORD HOLDER
View from the bottomShooting direction: C Shooting direction: D
x7
CP405CP403CP402
CP401
CORD HOLDER
14
