Marantz SR5010/U1B - Hdmi Pcb

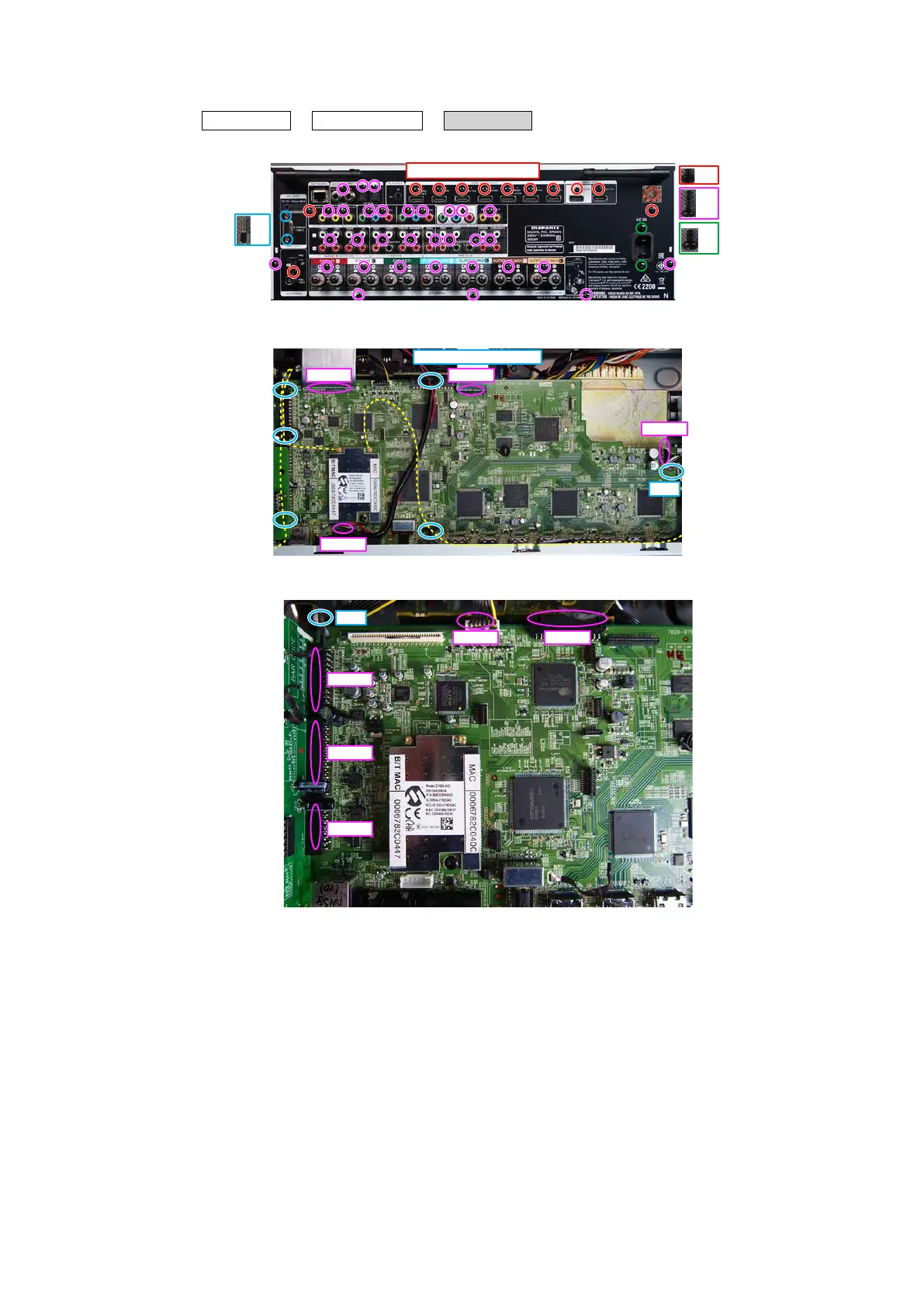

3. HDMI PCB
Proceeding : TOP COVER
→
BACK CHASSIS
→
HDMI PCB
(1) Remove the screws.
(2) Cut the wire clamps, and then remove the CORD HOLDERs and the connector wires. Remove the FFC.
(3) Cut the wire clamp and remove the connector.
Shooting direction: A
x12
x32
x2
x2
FFC FFC
N1008
N1033
CORD HOLDER x 5
CUT
N1039N1019
N1014
N1016
N1020
CUT
15
