Marantz SR5010/U1B - Jig for Servicing

JIG FOR SERVICING
Use the following jigs (extension cable kit) when repairing the PCBs.
Order with your dealer for the jigs your dealer if necessary.
CAUTION : Incorrect connections may cause malfunction.
• Connection of Jig for HDMI PCB
---Items to Be Prepared---
8U-110084S : EXTENSION UNIT KIT : 1Sets
8U-110136S : EXTENSION UNIT KIT : 1Sets
Insulation sheet (Not supplied) : 3 sheets
Ground lead (Not supplied) : 3 pcs
-Procedures-
(1) Remove the screws.
(2) Remove the connector PCB.

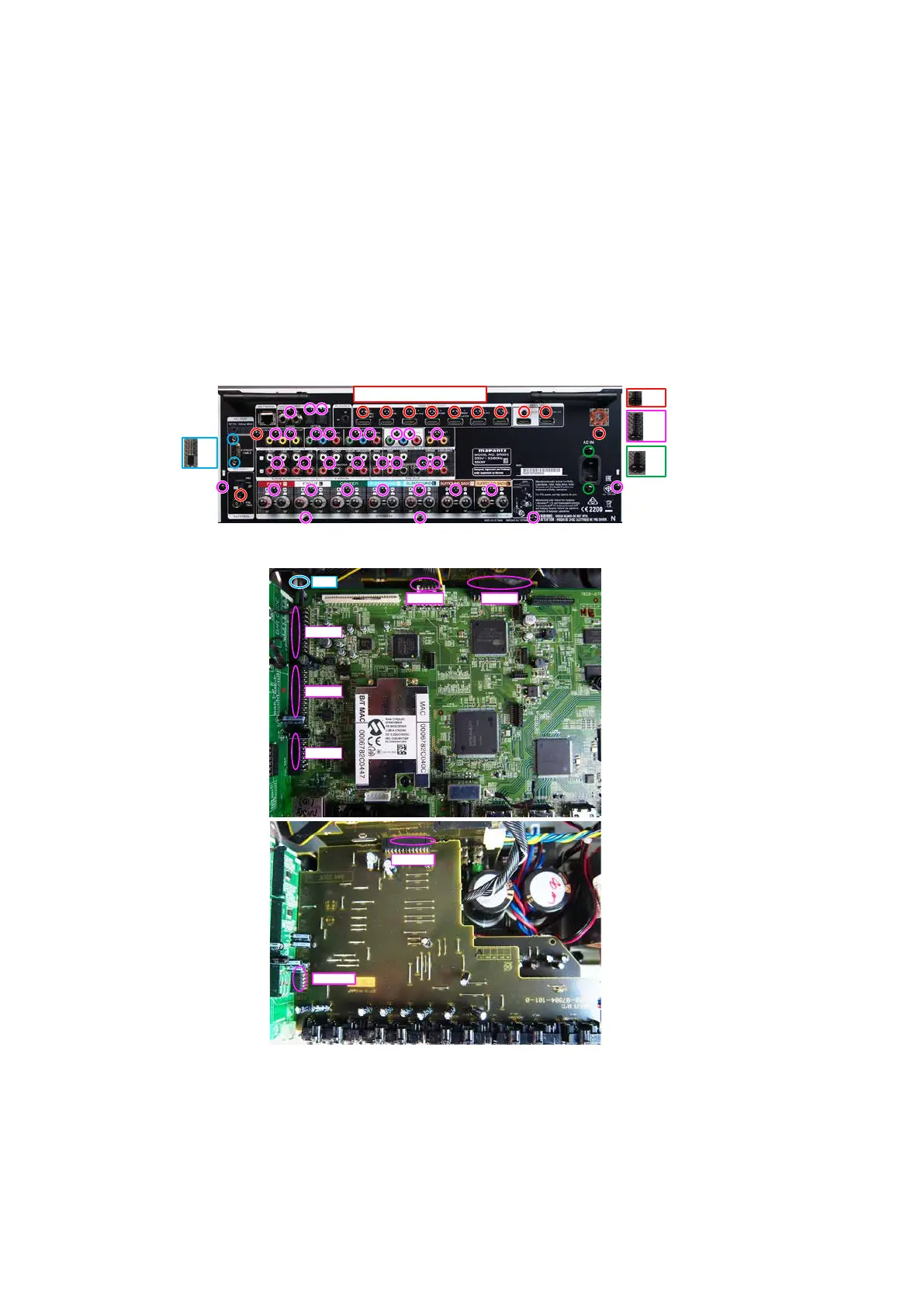

Shooting direction: A
x12
x32
x2
x2
N1039N1019
N1014
N1016
N1020
CUT
CN5000
CN5000
