Marantz SR5010/U1B - Page 51

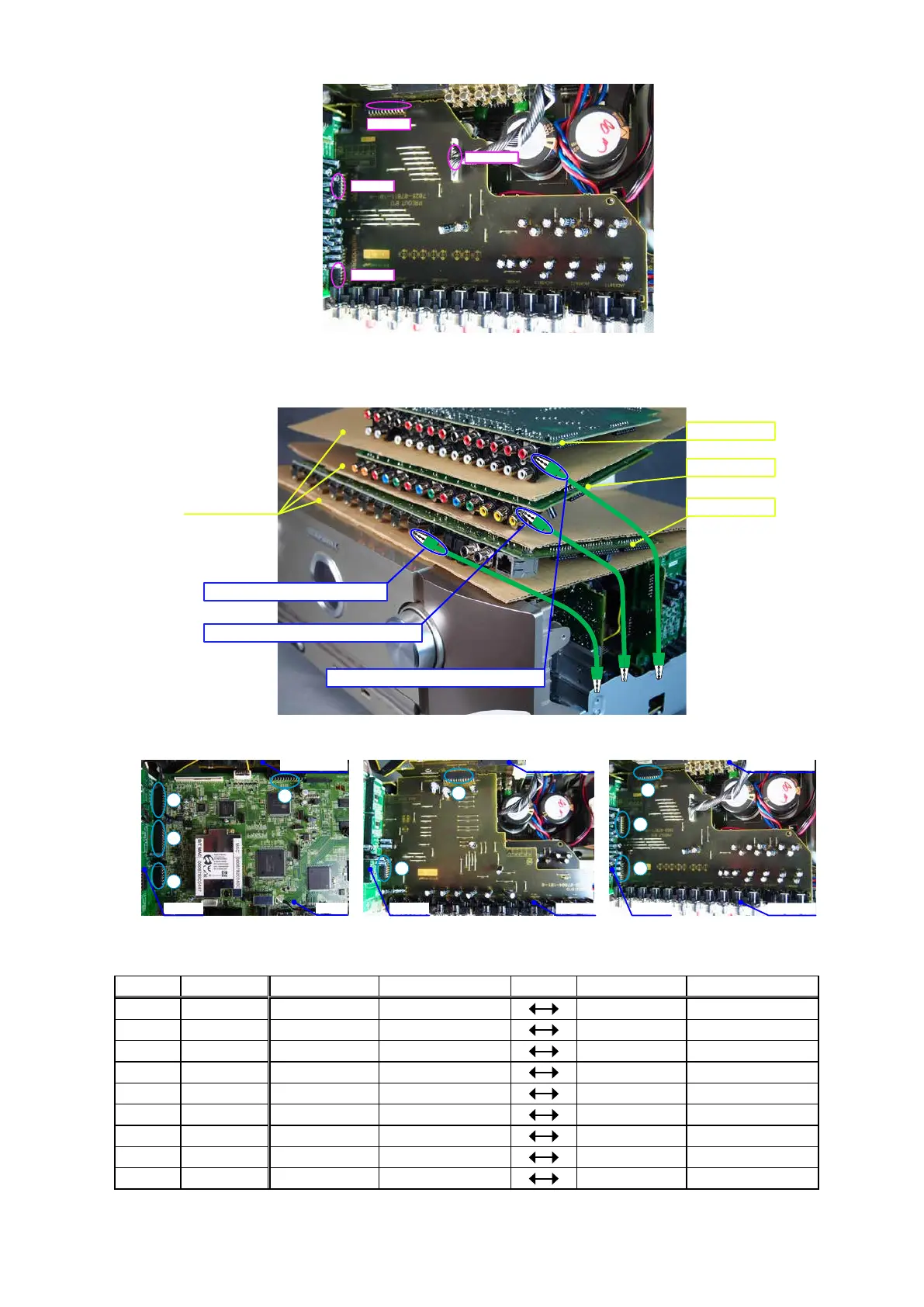

(3) Remove the HDMI PCB from the chassis and turn it over.
Place an insulation sheet larger than the PCB underneath the HDMI PCB.
b
Connect the earth of the PCB to the chassis using an earth wire, etc.
(4) Connect the expansion cables.
Board-to-Board Connections
No. Pin Ref. No. PCB Ref. No. PCB
q
15pin CP4200 INPUT N1020 HDMI
w
27pin CP4205 INPUT N1016 HDMI
e
23pin CP4201 INPUT N1014 HDMI
r
25pin CP3401 FRONT CNT N1039 HDMI
t
11pin CP4204 INPUT CN5003 VIDEO
y
21pin CP5000 FRONT CNT CN5000 VIDEO
u
21pin CP4207 INPUT CN5000 PREOUT
i
15pin CP4202 INPUT CN5602 PREOUT
o
21pin CP5000 FRONT CNT CN3403 PREOUT
CN5601
CN5602
CN4704
TO CP401
Insulation sheet
PCB HDMI
PCB VIDEO
PCB PREOUT
CHASSIS-HDMI CONNECTOR
CHASSIS-COMPOSIT CONNECTOR
CHASSIS-PREOUT CONNECTOR
FRONT CNTFRONT CNTFRONT CNT
HDMI
VIDEO PREOUT
INPUT INPUT INPUT
1
2
3
4
6
5
9
7
8
