Marantz SR6007 User Manual

141

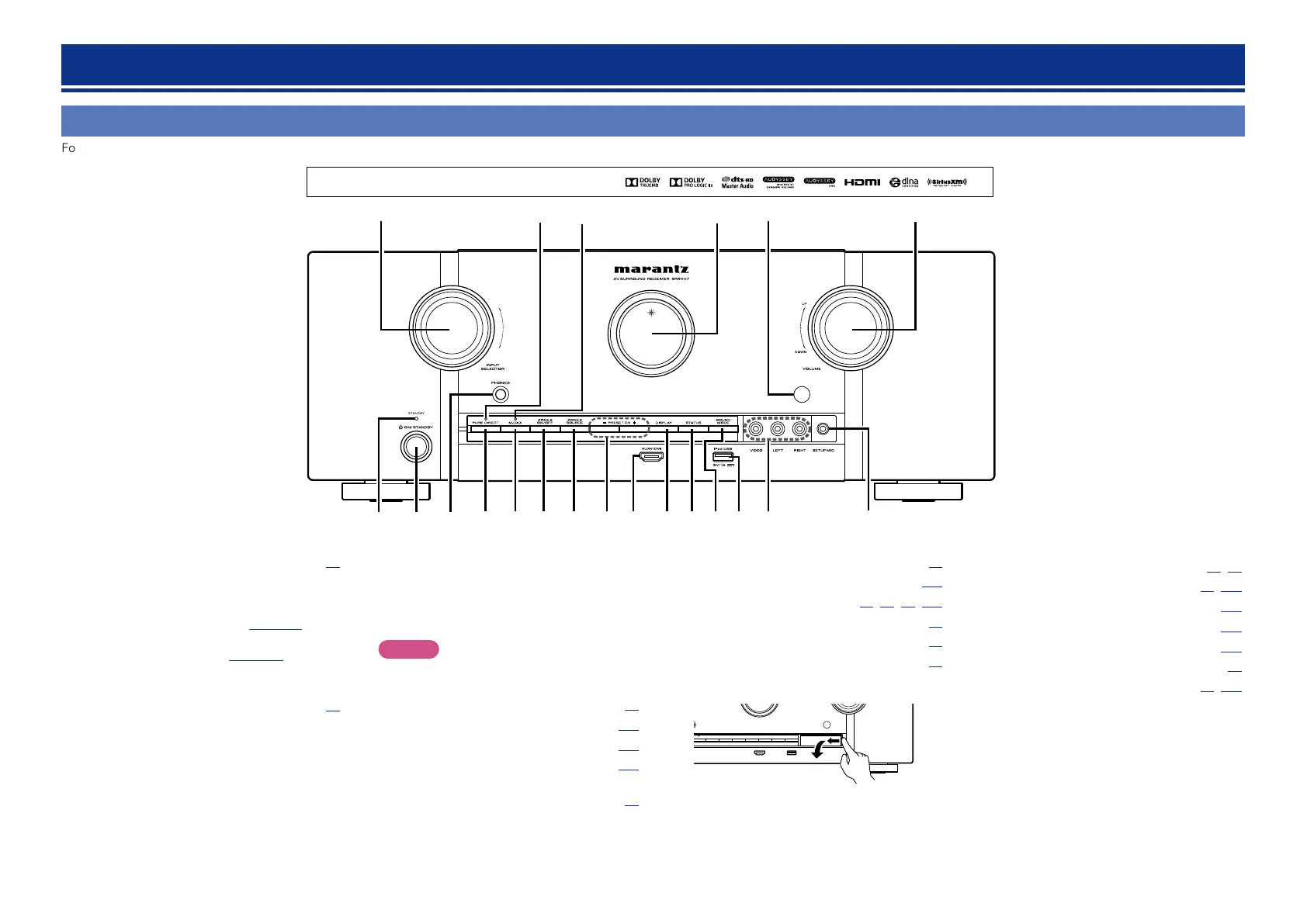

Front panel
For buttons not explained here, see the page indicated in parentheses ( ).
W1
Q8
Q9W0 Q7 Q6
Q5Q3r t y u i o Q0 Q1 Q2 Q4wq e
q STANDBY indicator ···································· (35)
GSTANDBY indicator statusH
•Power on : Off
•Normal standby : Red
•When “HDMI Control” (vpage 118) is set
to “On” : Orange
•When “IP Control” (vpage 131) is set to
“Always On” : Orange
w Power operation button
(X ON/STANDBY) ······································ (35)
Turn power to this unit on and off (standby).
o AUX-HDMI connector ································ (10)
Q0 DISPLAY button ········································ (136)
Q1 STATUS button ······················ (39, 53, 57, 137)
Q2 SOUND MODE button ······························· (73)
Q3 iPod/USB port ············································ (19)
Q4 AUX1 INPUT connectors ··························· (17)
Remove the cap covering the connectors when
you want to use them.
e Headphones jack (PHONES)
When the headphones are plugged into this
jack, audio will no longer be output from the
connected speakers or from the PRE OUT
connectors.
NOTE
To prevent hearing loss, do not raise the volume
level excessively when using headphones.
r PURE DIRECT button ································· (73)
t M-DAX button ·········································· (112)
y ZONE2 ON/OFF button ···························· (103)
u ZONE2 SOURCE button ··························· (103)
i Tuner preset channel buttons
(PRESET CH +, –) ········································· (48)
Part names and functions
Q5 SETUP MIC jack ···································· (30, 91)
Q6 VOLUME knob ···································· (36, 103)
Q7 Remote control sensor ···························· (145)
Q8 Display ······················································· (142)
Q9 M-DAX indicator ······································· (112)
W0 PURE DIRECT indicator ······························ (73)
W1 INPUT SELECTOR knob ····················· (35, 162)
Basic version
Advanced version
InformationInformation
DVD

Marantz SR6007 Specifications

General

Receiver type	Surround
Pre-out channels	7.2
Pre-out connectivity	Yes
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/192kHz
Power output per channel (1KHz@6 Ohm)	125 W
Power output per channel (20-20KHz@8 Ohm)	110 W
HDMI in	6
Composite video in	4
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	2
Connectivity technology	Wired
Speakers connectivity type	RCA
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Image formats supported	JPG
Wi-Fi	No
Supported radio bands	-
Product color	Black
Audio decoders	Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic IIz, Dolby TrueHD, DTS-ES, DTS-HD Master Audio
Apple docking compatibility	iPhone, iPod
Number of products included	1 pc(s)
Power consumption (standby)	0.2 W
Power consumption (typical)	650 W

Weight and Dimensions

Depth	389 mm
Width	440 mm
Height	161 mm
Weight	11400 g
