143

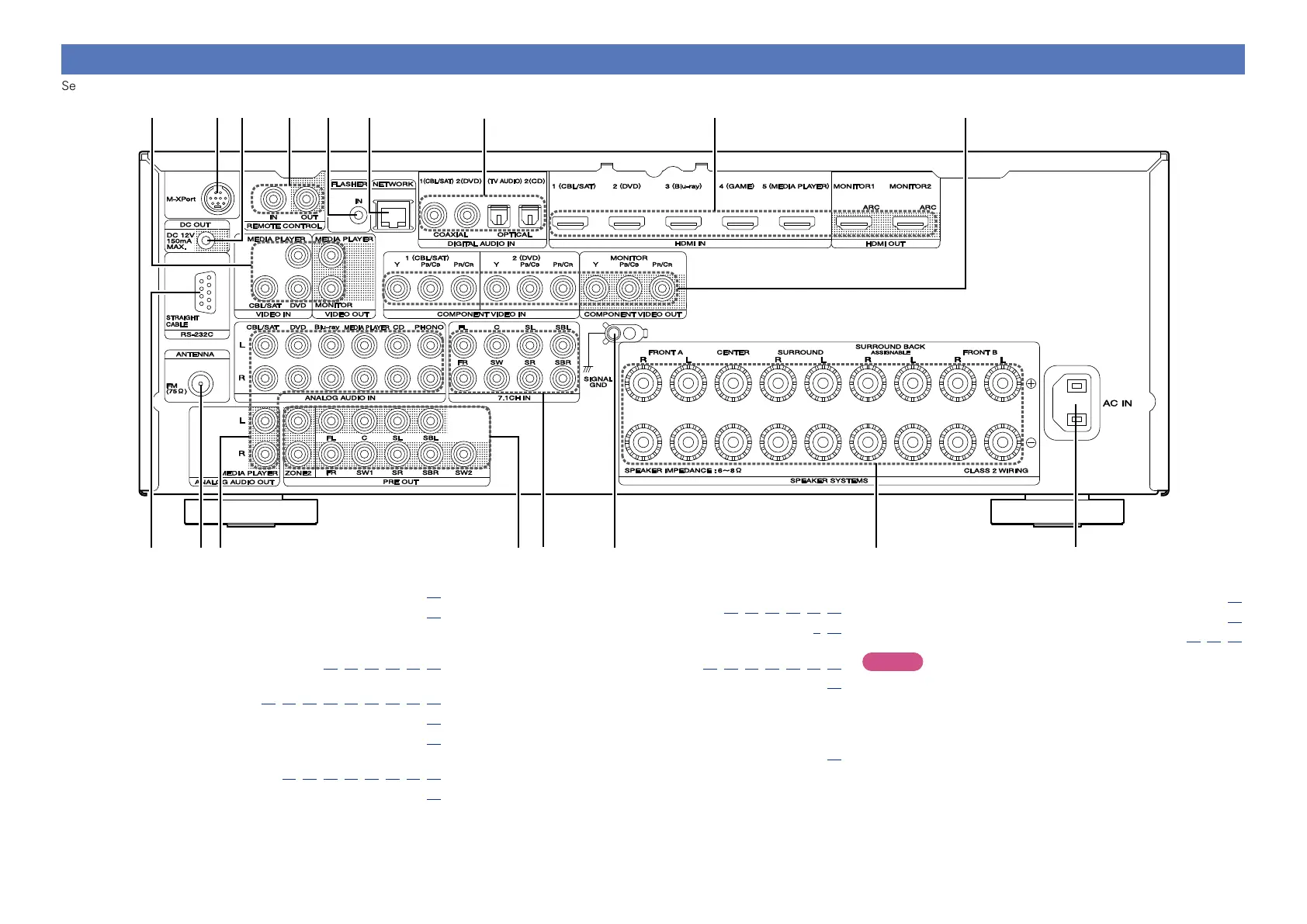

Rear panel
See the page indicated in parentheses ( ).
Q0
q w
e r y ut i
Q1
Q3 oQ5 Q4Q6 Q2Q7
q RS-232C connector ·································································· (94)
w FM antenna terminal (ANTENNA) ········································· (22)
e Analog audio connectors
(ANALOG AUDIO IN/ANALOG AUDIO OUT)
···································································· (14, 15, 16, 18, 20, 21)
r PRE OUT connectors
·················································· (25, 83, 84, 85, 86, 87, 88, 89, 90)
t 7.1ch input connectors (7.1CH IN) ········································· (24)
y SIGNAL GND terminal ···························································· (21)
u Speaker terminals (SPEAKER SYSTEMS)
························································ (83, 84, 85, 86, 87, 88, 89, 90)
i AC inlet (AC IN) ········································································ (27)
o Component video connectors
(COMPONENT VIDEO) ······························ (13, 14, 15, 16, 17, 18)
Q0 HDMI connectors ································································· (9, 10)
Q1 Digital audio connectors
(DIGITAL AUDIO IN) ···························· (13, 14, 15, 16, 17, 18, 20)
Q2 Network connector (NETWORK) ··········································· (26)
Q3 FLASHER IN jack
Used when using a control BOX or other such control devices to
control this unit.
Q4 REMOTE CONTROL connectors ············································· (93)
Q5 DC OUT jacks ··········································································· (94)
Q6 M-XPort connector ·································································· (23)
Q7 Video connectors (VIDEO IN/VIDEO OUT)················ (13, 14, 15)
NOTE
Do not touch the inner pins of the connectors on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
