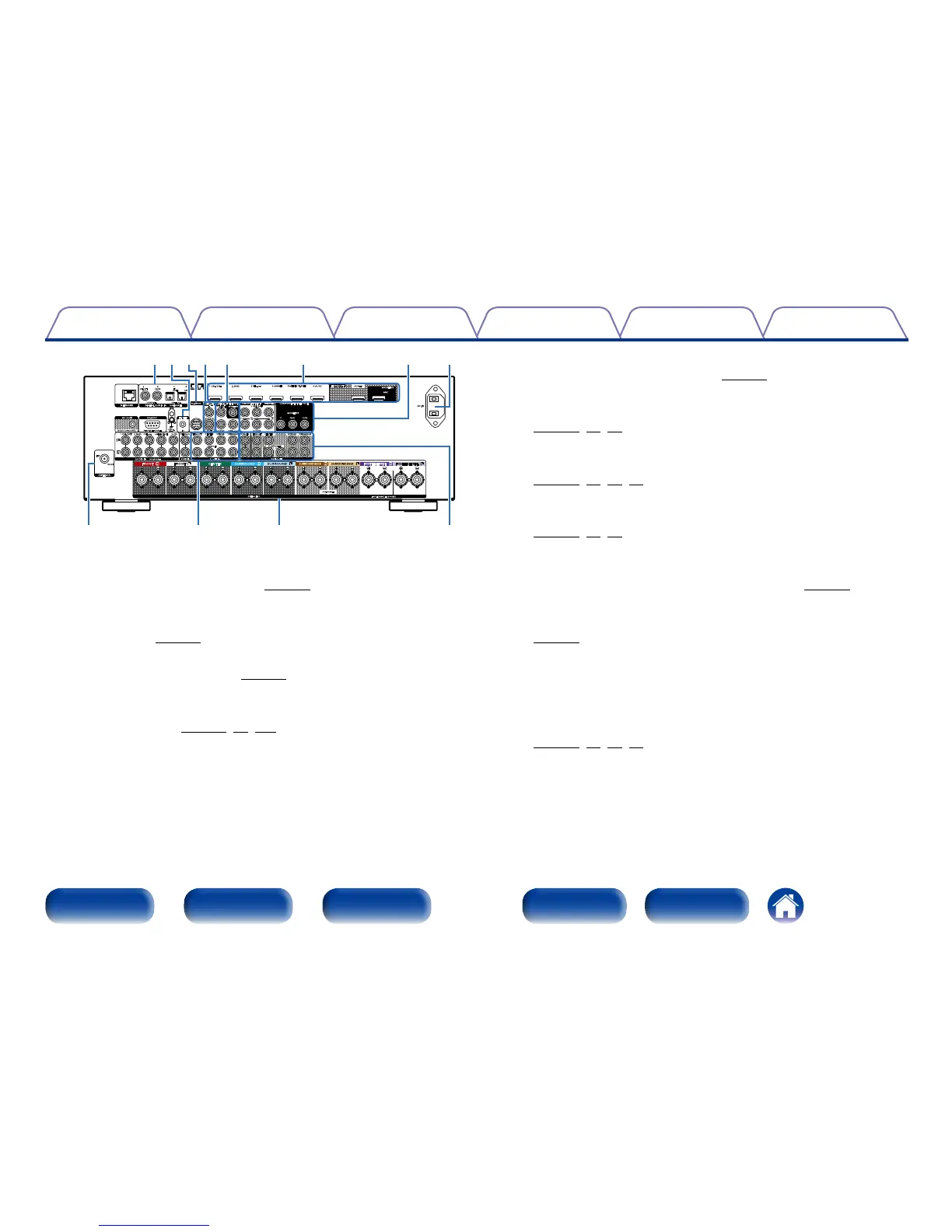

q FM antenna terminals (ANTENNA)
Used to connect FM antennas (vpage45).
w 7.1-channel input connectors (7.1CH IN)
Used to connect to a device that has multi-channel audio output
connectors (vpage42).
e Speaker terminals (SPEAKERS)
Used to connect speakers (vpage26).
r PRE OUT connectors
Used to connect a subwoofer with a built-in amplifier or an external
power amplifier (vpage27, 32, 131).
t AC inlet (AC IN)
Used to connect the power cord (vpage51).
y Component video connectors (COMPONENT VIDEO)
Used to connect devices equipped with component video connectors
(vpage36, 38, 39).
u HDMI connectors
Used to connect devices equipped with HDMI connectors
(vpage34, 35, 38, 39).
i Video connectors (VIDEO)
Used to connect devices equipped with video connectors
(vpage36, 38, 39).
o REMOTE CONTROL connectors
Used to connect infrared receivers/transmitters in order to operate this
unit and external devices from a dierent room (vpage49).
Q0 M-XPort connector
Used to connect to a wireless receiver (RX101, sold separately)
(vpage48).
Q1 FLASHER IN jack
Used when using a control BOX or other such control devices to
control this unit.
Q2 Digital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors
(vpage35, 36, 38, 39).
