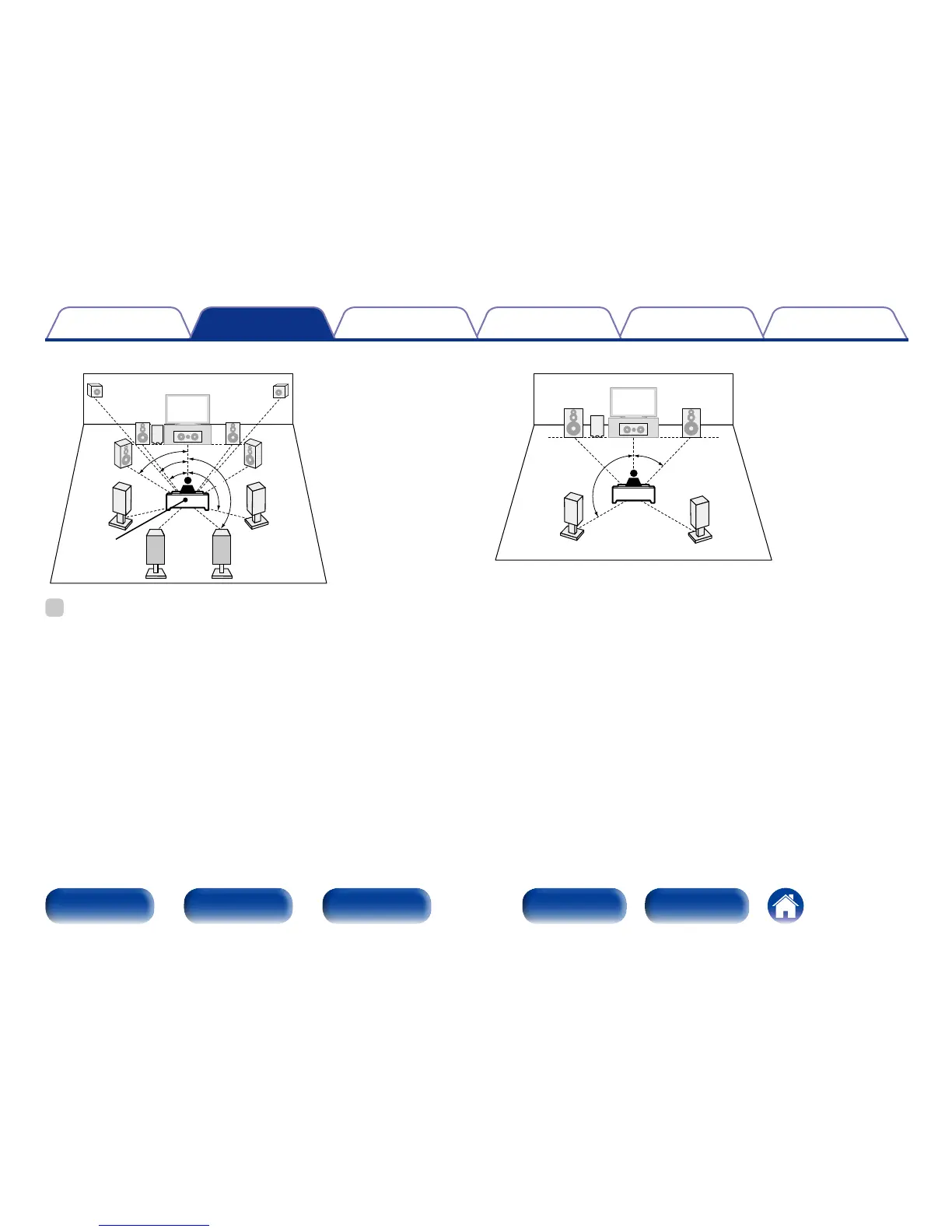

2 Typical speaker layout
FHRFHL
FL
FR
SL
SR
FWL
FWR
SW
C
SBL SBR
z1
z2
z3
z5
z4
Listening
position
z1 22˚ – 30˚
z2 22˚ – 45˚
z3 55˚ – 60˚
z4 90˚ – 110˚
z5 135˚ – 150˚
%
•When using a single surround back speaker, place it directly behind the listening
position.
•You can change the settings to use either the Front height speakers or Front wide
speakers only.
GSpeaker abbreviationsH
FL Front speaker (L) SBL Surround back speaker (L)
FR Front speaker (R) SBR Surround back speaker (R)
C Center speaker FHL Front height speaker (L)
SW Subwoofer FHR Front height speaker (R)
SL Surround speaker (L) FWL Front wide speaker (L)
SR Surround speaker (R) FWR Front wide speaker (R)
2 When 5.1-channel speakers are installed
FL FR
SW
C
SL
SR
z1
z2
z1 22˚ – 30˚
z2 120˚
