Connecting a wireless receiver (RX101)
You can connect a wireless receiver (RX101,
sold separately) to play back music on your
Bluetooth device with this unit.
To do this, switch the input source to “M-XPort”
(vpage53 “Selecting the input source”).
%
•When connecting your Bluetooth device to
the wireless receiver for the first time, pairing
is necessary. Once pairing is completed, the
communication between your Bluetooth device
and the wireless receiver can be established just
by connecting them. Pairing is necessary for each
Bluetooth device.
•You can also use the wireless receiver as an IR
receiver. In this case, disable the remote control
signal receiving function (vpage 129 “Remote
lock function”).
•This unit supports the A2DP standard of the
Bluetooth profile.
FRONT
SUBWOOFER
SURROUND SURROUND BACK CENTER 1 CBL/SAT 2 DVD 3 Blu-ray 4 MEDIA PLAYER 5 CD PHONO
NETWORK
COAXIAL
OPTICAL
CBL/SAT
1
DVD
2
1
TV
AUDIO
2
CD
1 CBL/SAT
2 DVD
3 Blu-ray
4 GAME
5 MEDIA PLAYER
6 AUX2
STRAIGHT CABLE DC12V 150mA MAX.
IN
MONITOR
P R /
C R
P R /C R
P B /
C B
P B /C B
Y
Y
1 CBL/SAT
3 Blu-ray
1 CBL/SAT
MONITOR
2 DVD
2 DVD
IN
OUT
RS-232CDC OUT
FLASHER
COMPONENT VIDEO OUT
AUDIO IN
7.1CH IN PRE OUT
(
ASSIGNABLE
)
DIGITAL AUDIO IN
(
ASSIGNABLE
)
(
ASSIGNABLE
)
AUDIO IN
(
ASSIGNABLE
)
COMPONENT VIDEO INVIDEO OUT
SURROUND SURROUND
FRONT FRONT
CENTER
SURROUND BACK SURROUND BACK FRONT HEIGHT/WIDE FRONT HEIGHT/WIDE
SIGNAL
GND
VIDEO IN
REMOTE
CONTROL
ZONE2
MONITOR
ARC
SURROUND SURROUND BACK
FRONT CENTER ZONE2
1 2
SUBWOOFER
SPEAKERS
ASSIGNABLE
HDMI IN
(
ASSIGNABLE
)
HDMI OUT
AC IN
SURROUND SURROUND
FRONT FRONT
CENTER
SURROUND BACK SURROUND BACK FRONT HEIGHT/WIDE FRONT HEIGHT/WIDE
M-XPort
FM
ANTENNA
(
75Ω
)
IMPEDANCE : 6～8Ω
M-XPort

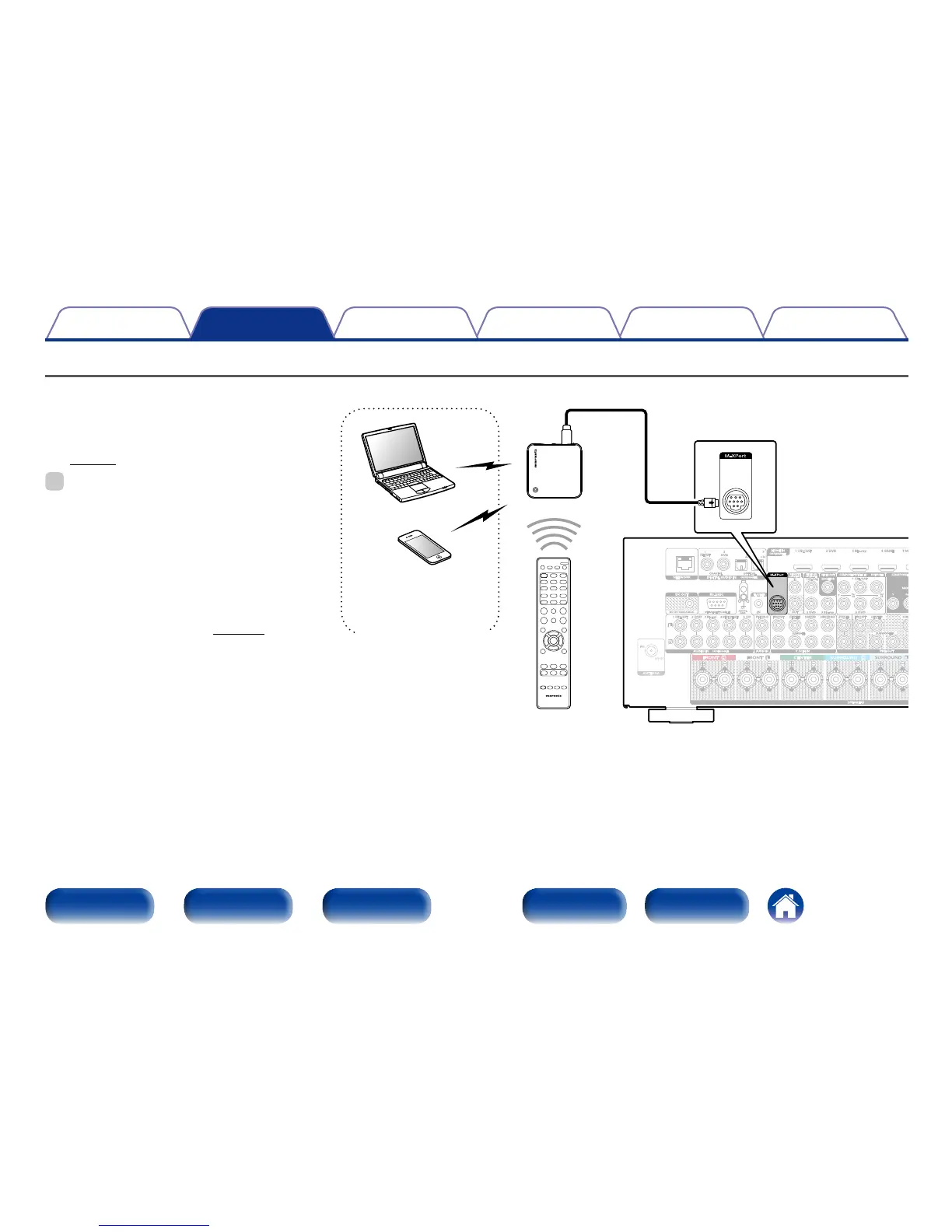

Wireless receiver (RX101)
