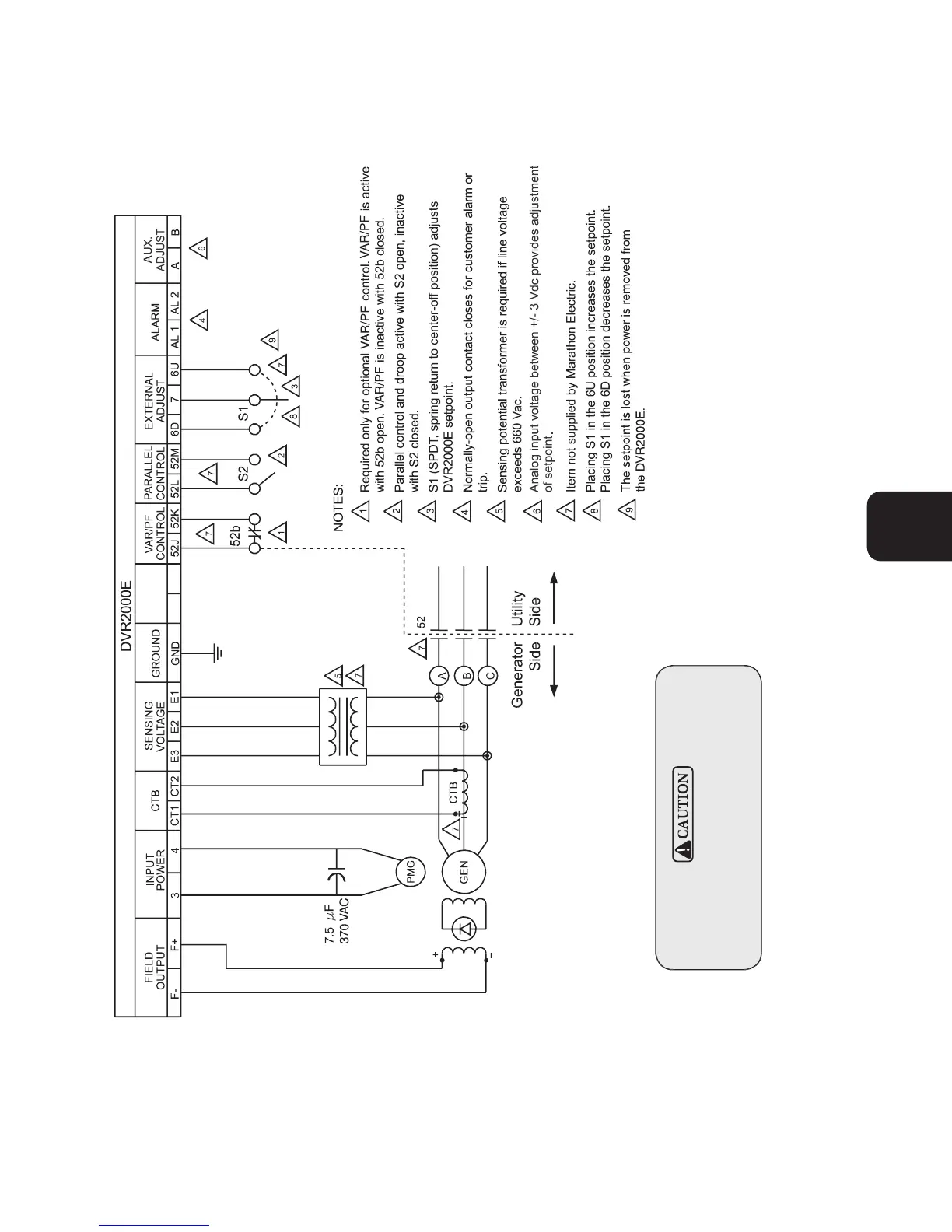

Figure 4-6. Typical Connections with ABC Rotation and Three-Phase Sensing
The DVR
®
2000E CT connections
are reversed from the DVR
®
2000
