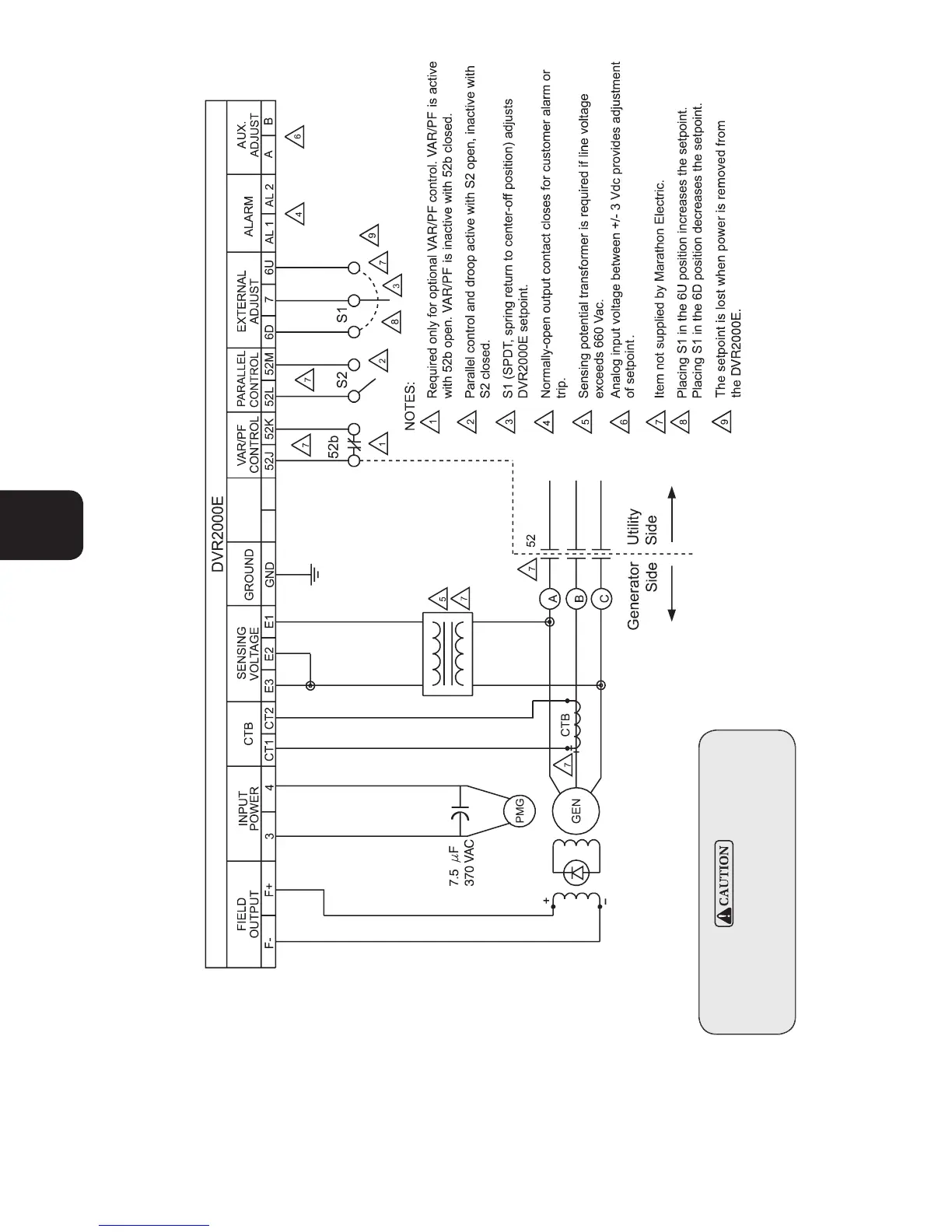

Figure 4-7. Typical Connections with ABC Rotation and Single-Phase Sensing
The DVR
®
2000E CT connections
are reversed from the DVR
®
2000
