SECTION 5 - HUMAN-MACHINE INTERFACE
GENERAL
The DVR
®
2000E+ human-machine interface (HMI) consists of a four-button keypad and four-character LED
display as illustrated in Figure 5-1. The display indicates status conditions and parameter settings. Button function
descriptions are given in Table 5-1.

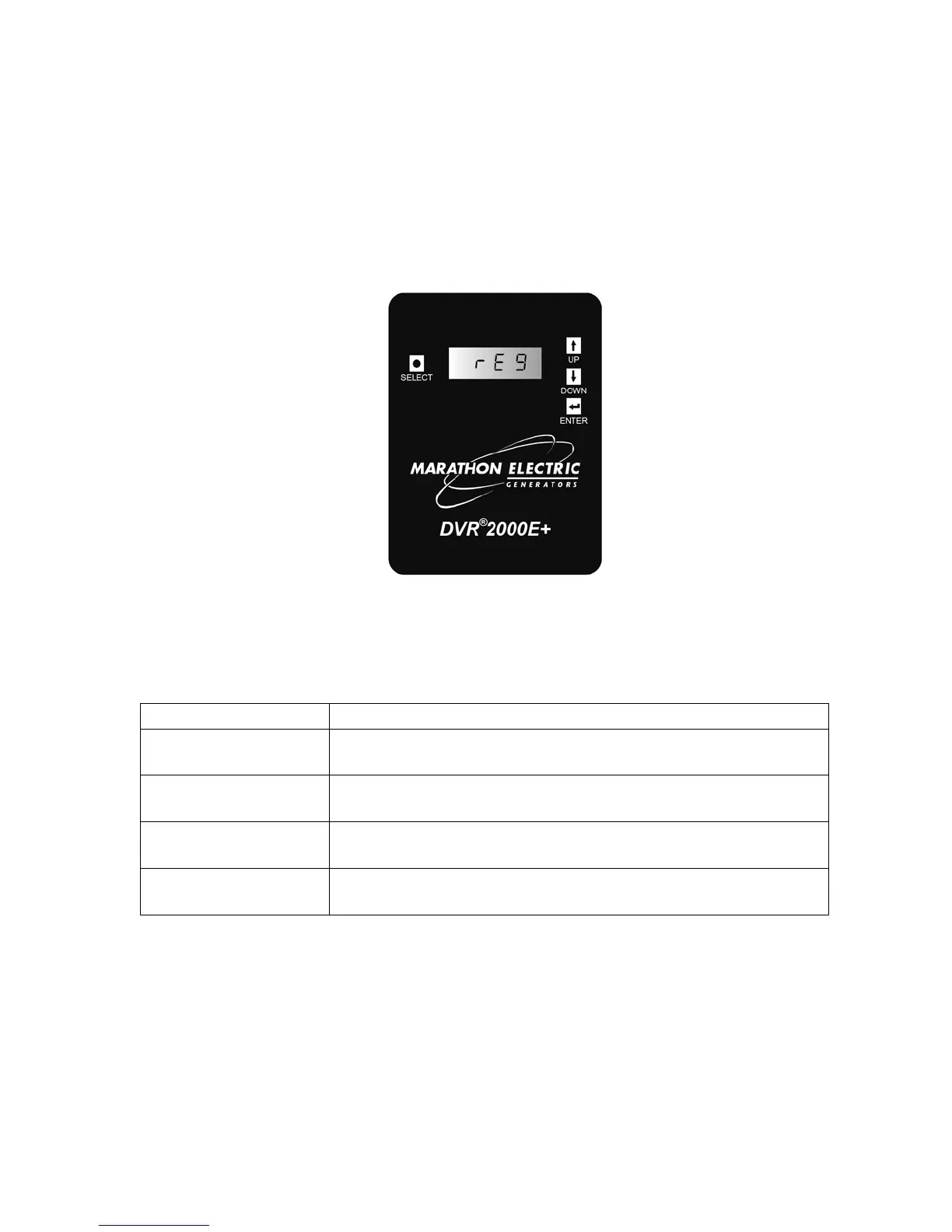

Figure 5-1. DVR
®
2000E+ Human-machine Interface (HMI)
Button Description
SELECT
This pushbutton steps the user through a menu list of editable
parameters. It also serves as an escape key in EDIT mode.
UP
This pushbutton increases the setting level of the parameter
beingadjusted.
DOWN
This pushbutton decreases the setting level of the parameter
beingadjusted.
ENTER
This pushbutton stores the current value of the parameter being
adjustedandreturnstheusertothemainmenulist.
Table 5-1. DVR
®
2000E+ HMI Button Function Descriptions
