Marathon Electric DVR 2000E+ - Appendix B; Connector Pin-Out Figures and Tables

75
Marathon Electric (a division of RBC Manufacturing Corp.) reserves the right to change specications and this manual without notice.
Revised 06/2011
APPENDIX B
CONNECTOR PIN-OUT FIGURES AND TABLES
The following figures can be used to determine the pin locations for the pin-integrated connectors used on the
DVR®2000E+ regulator.

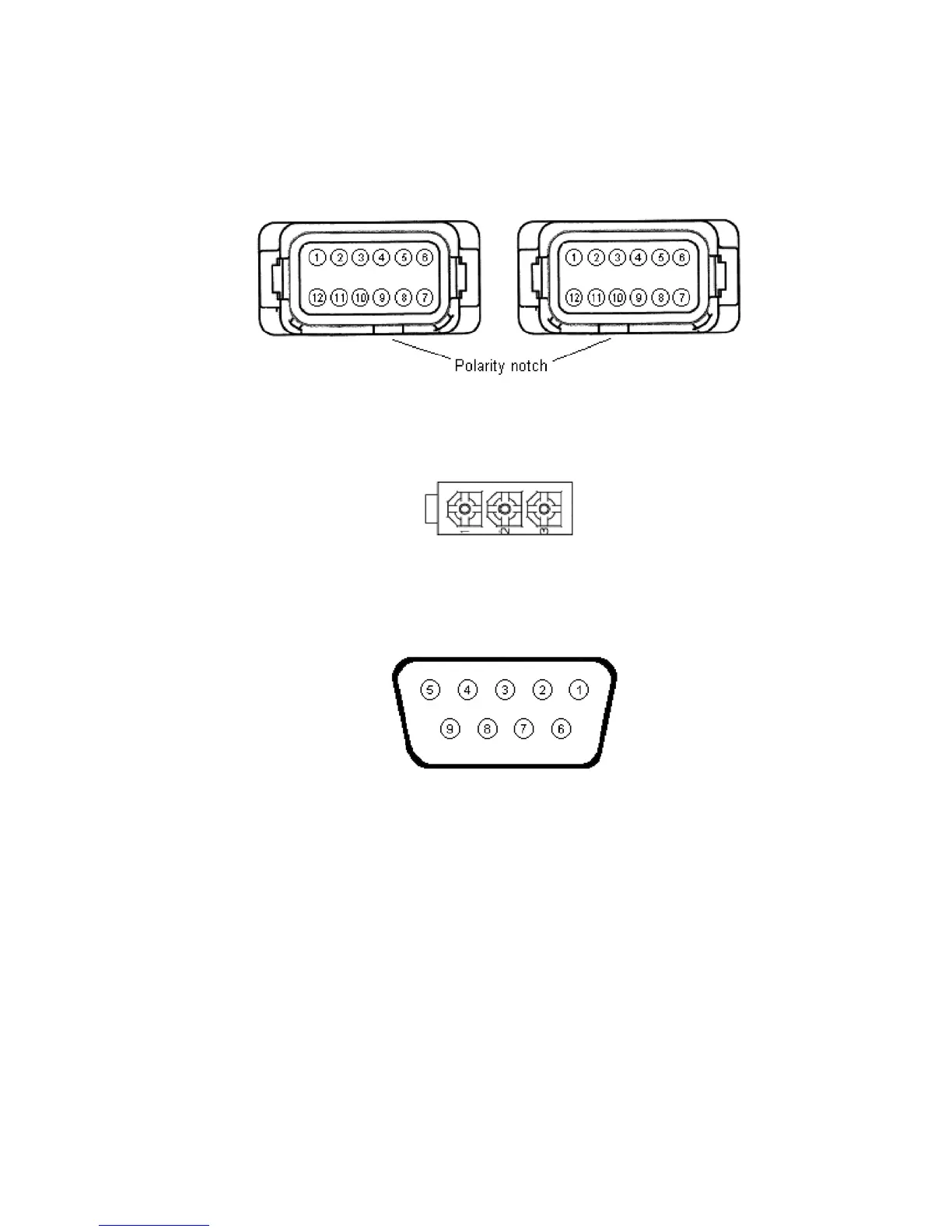

FigureB-1.ConnectorJ1
FigureB-2.ConnectorJ3
Figure B-3. MODBUS Communication Port
The following table should be used when making connections via quick disconnect terminals to the regulator.
