Service manual April 2017 Uber boiler

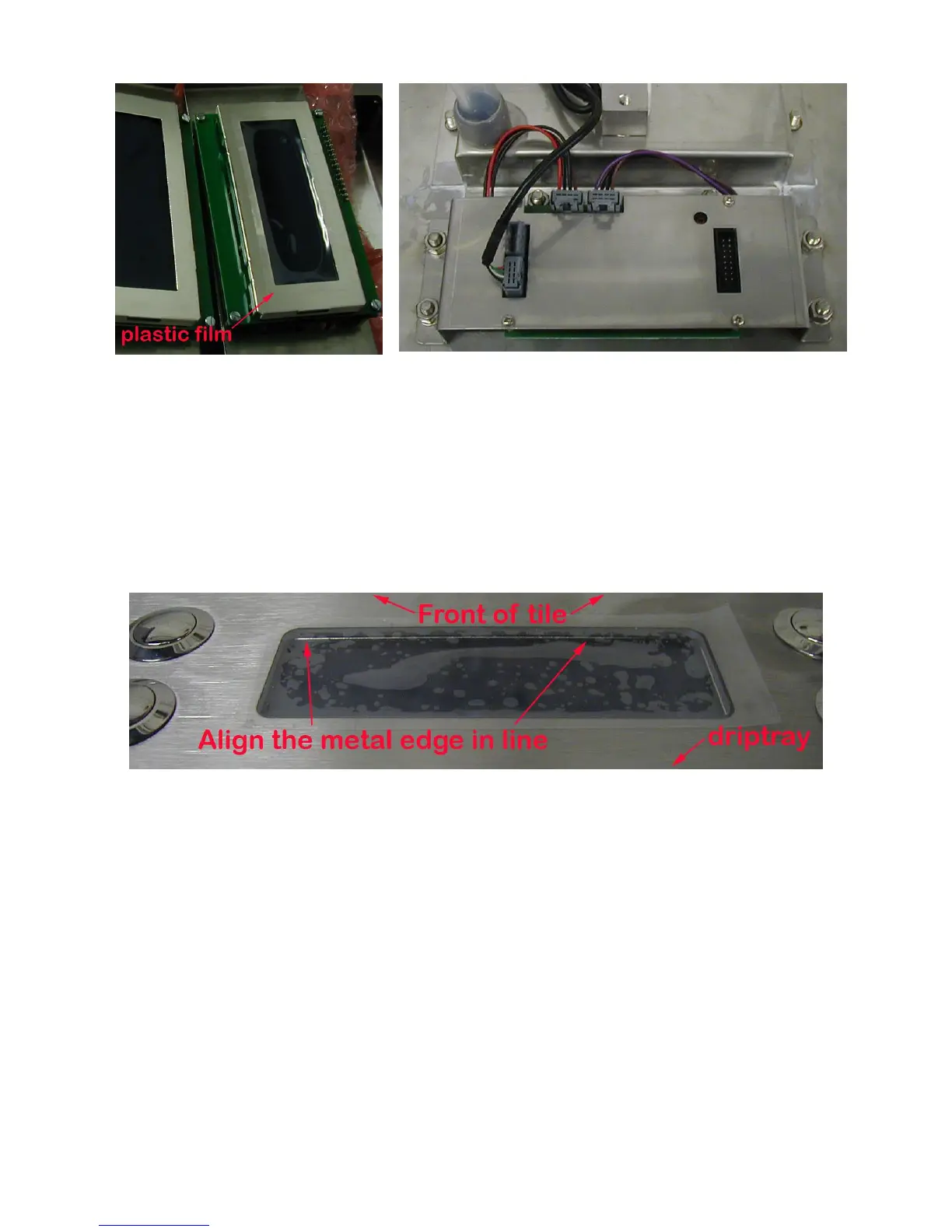

To make sure your new display is centred & straight look at an angle into the window and
see that the metal border on the display is in line with the metal line on the tile. It is OK for
the metal border to be slightly visible on the edge furthest away from the driptray/scale. This
is since a user is viewing the screen from an angle and will not see this border when looking
at the machine from the front
When the display is aligned correctly, tighten up the 4 nuts underneath. Now replace all
connections as before.
