Service manual April 2017 Uber boiler

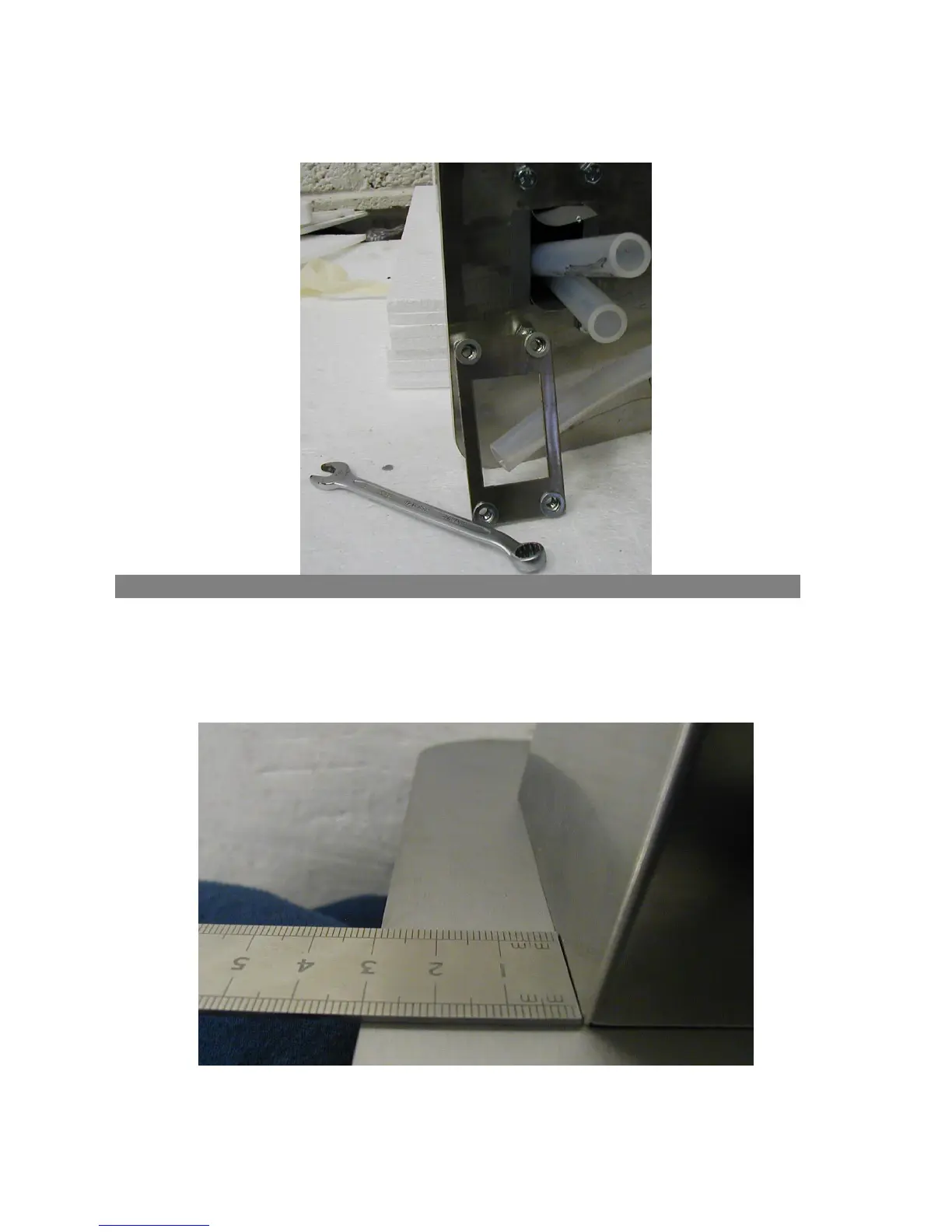

3.7.1 Aligning the Font on the Tile:
:
Check that the back of the font is square with the tile, to do this measure the distance from
the edge of the tile to the font, it should be equal on both left and right corners, the
dimension itself is not important. When confirmed square, fully tighten the 4 bolts down.
Loosely screw in 4x M6 bolts
