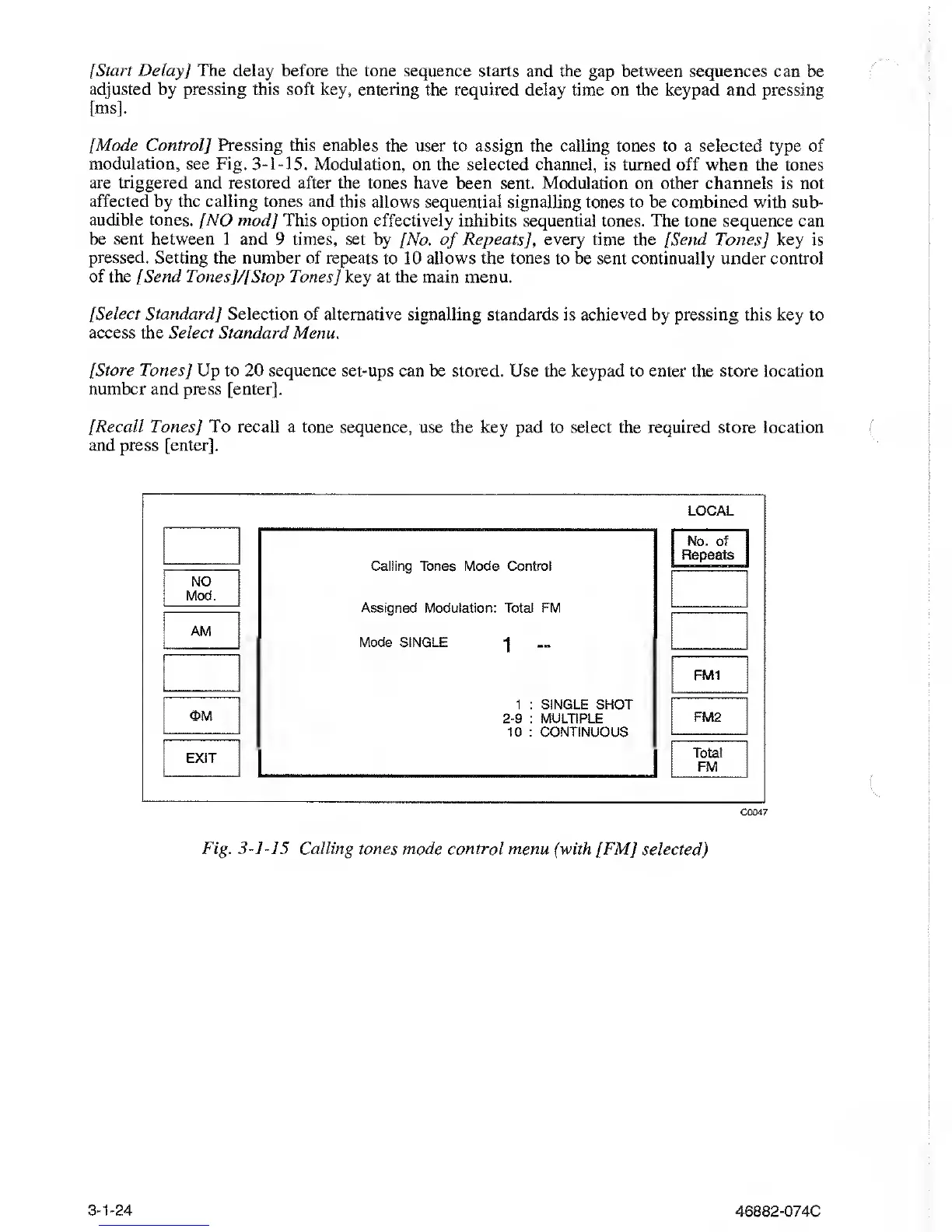

[Start Delay] The delay before the
tone sequence starts and the gap between sequences can
be
adjusted by pressing
this soft key, entering the required delay time
on
the keypad
and pressing
[ms].
[Mode Control] Pressing
this enables the
user to assign
the calling
tones to a selected type of
modulation, see Fig.
3-1-15.
Modulation,
on the selected channel, is turned off when the tones
are triggered and restored
after the tones have been
sent.
Modulation on other channels
is not
affected by the calling tones and
this allows sequential signalling tones to be combined with sub-
audible tones. [NO mod] This
option effectively inhibits sequential tones. The tone sequence
can
be
sent between
1 and 9 times, set
by [No.
of
Repeats], every time the [Send Tones
]
key is
pressed. Setting the number
of repeats to 10 allows the tones to be sent continually under control
of the
[Send Tones]/[Stop Tones] key at the
main menu.
[Select Standard]
Selection of alternative signalling standards is achieved
by pressing this key to
access the Select Standard Menu.
[Store
Tones] Up to 20 sequence set-ups
can be stored. Use the keypad to enter the store location
number and press [enter].
[Recall Tones] To recall a
tone sequence, use the key pad to select the required store location
and press
[enter].
LOCAL
NO
Mod.
AM
<J?M
EXIT
Calling Tones
Mode
Control
Assigned Modulation: Total FM
Mode SINGLE
“j
—
1 : SINGLE SHOT
2-9
:
MULTIPLE 1
10 : CONTINUOUS
No. of
Repeats
FM1
FM2
Total
FM
C0047
Fig.
3-1-15
Calling tones mode control menu
(with [FM] selected)
3-1-24
46882-074C
