Mark 7® Reloading 1050 User Manual version 9.3, Copyright 2020 All rights reserved
1. Removal of Main Autodrive assembly from the packing carton
Upon removal carefully inspect contents for damage. Damage that occurs during shipment should be
reported immediately to the carrier. Major system components listed below

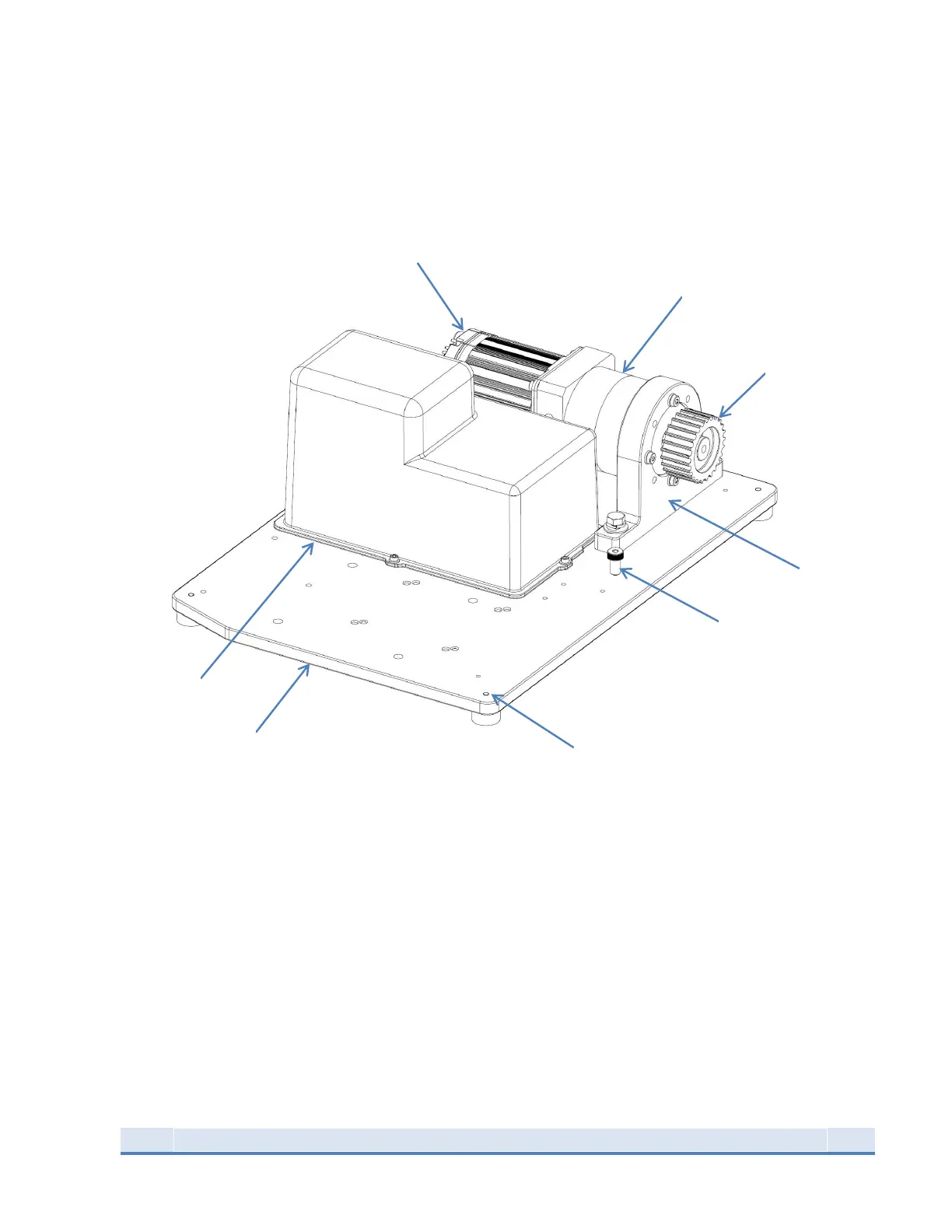

Figure 1: Major Component Overview
Motor
Electronics Console
Base Plate
Rubber Feet (4 Corners)
Gear Box
Drive Sprocket
Motor Mount
Belt Tensioning Shoulder Bolt
