Martin MAC Viper Performance - Optical Configuration; Prism and Color Wheel

Optical configuration 7
Optical configuration
Prism
The MAC Viper Performance is supplied with an interchangeable four-facet 15° rotating prism (P/N
41300070) installed.
Color wheel
The MAC Viper Performance color wheel has 7 interchangeable dichroic filters and an open position

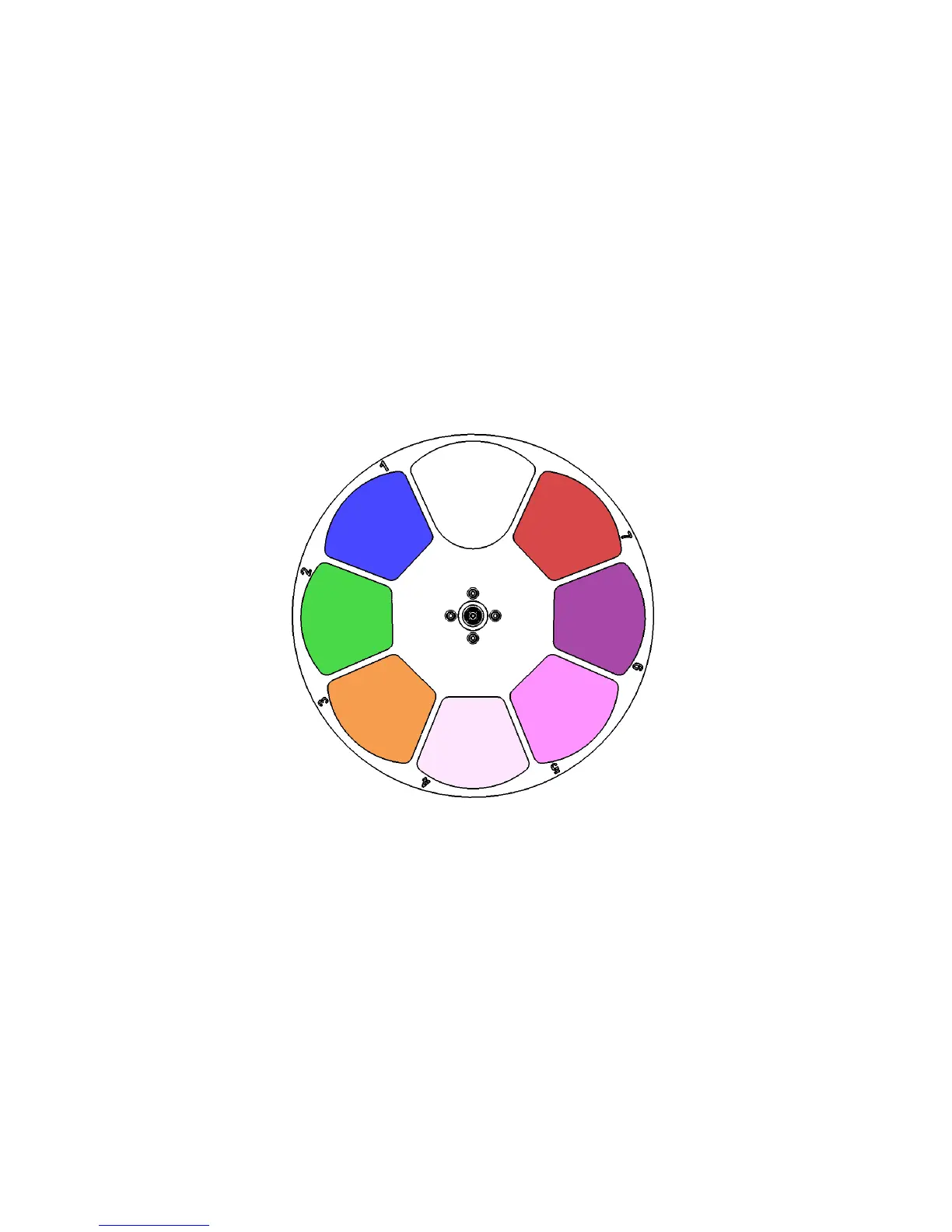

(illustration shows color wheel viewed from lamp side):
As standard, the MAC Viper Performance is supplied with the following color filters installed:
• Slot 1 - Blue 101 - P/N 46404500
• Slot 2 - Green 203 SP - P/N 46404510
• Slot 3 - Orange 311 SP - P/N 46404520
• Slot 4 - 1/2 Minus green SP - P/N 46404541
• Slot 5 - Magenta 522 SP - P/N 46404570
• Slot 6 - Deep Blue SP - P/N 46404550
• Slot 7 - Red 310 SP - P/N 46404560
• Slot 8 - Open
Slot 7 - Red 310 SPSlot 1 - Blue 101 SP
Slot 6 - Deep Blue SP
Open
Slot 5 - Magenta 522 SP
Slot 4 - 1/2 Minus Green SP
Slot 3 - Orange 311 SP
Slot 2 - Green 203 SP
Figure 1: Color wheel
