Rotating gobos
The gobo wheel in the MAC Viper Performance provides five rotating gobos plus an open position. The
standard gobos are shown in the correct order in Figure 2.
All gobos are interchangeable, but replacement gobos must match the dimensions, construction and quality
of the gobos supplied as standard. The gobos are E-27 size (standard E-size 37.5 mm external diameter,
27 mm image area diameter). Limbo/Crystal is a custom gobo glued permanently into its holder. If you
replace Limbo/Crystal, you will therefore need to order an additional goboholder.
Handling, installing and storing the gobos requires special care. See the MAC Viper Performance Safety
and Installation Guide for details.

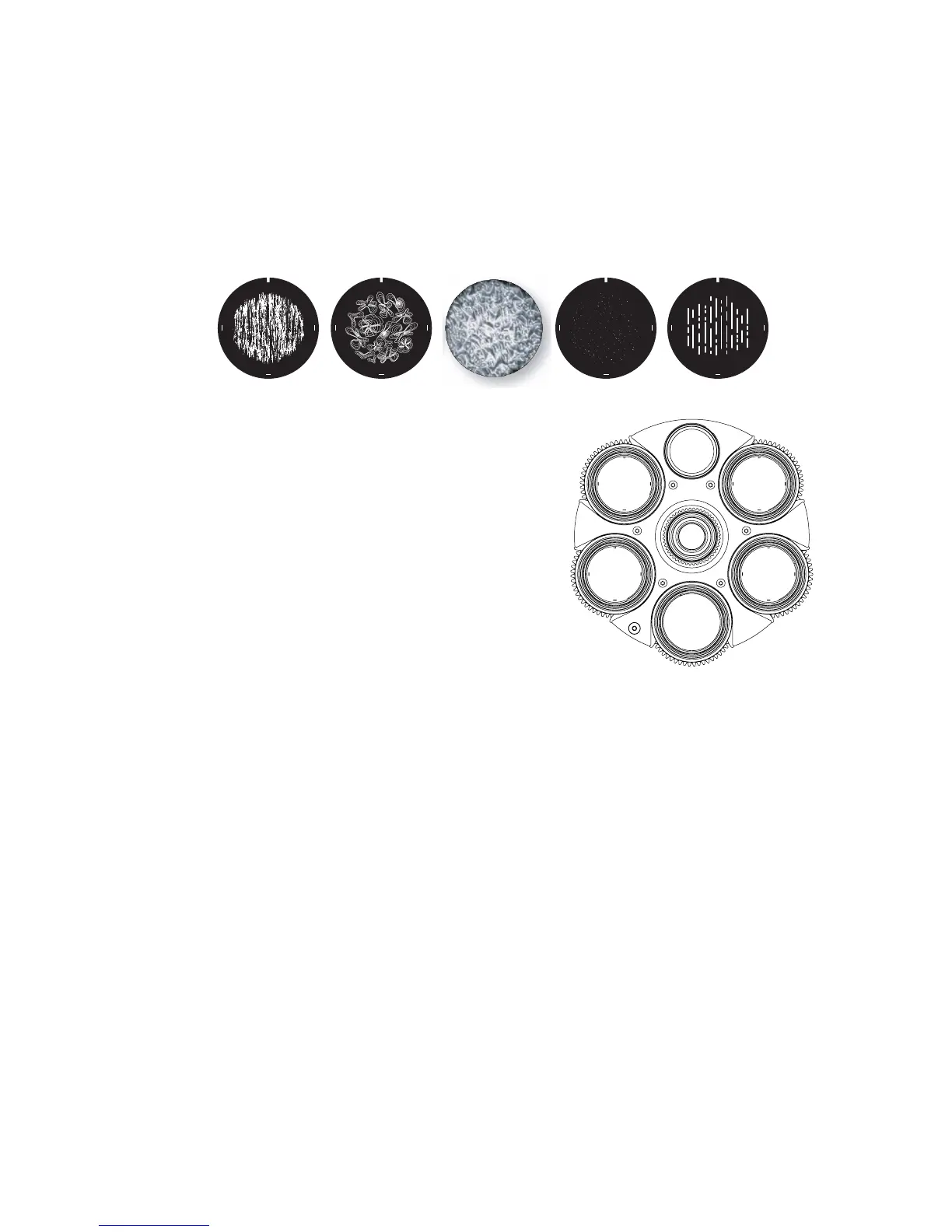

Figure 2: Rotating gobos installed as standard
Slot - Gobo Part number
1. Ray Brush................................................ P/N 43092020
2. Ray Flowers............................................. P/N 43092029
3. Limbo/Crystal in holder............................ P/N 62325152
4. To Boldly Go ............................................ P/N 43092022
5. Light Lines ............................................... P/N 43092023
