Marus CL1000 - Suggested Installation on Wood Framed Ceiling

9
1 INCH
CEILING JOISTS
16” O.C.
POWER SUPPLY
CONDUIT
FINISHED CEILING
MATERIAL
MOUNTING PLATE
w/ COLLAR
POWER CONDUIT COMES
THROUGH HOLE 2-1/2”
OFFSET FROM CENTER.
NEW CONSTRUCTION
1 INCH
CEILING JOISTS
16” O.C.
(6) 1/4” LAG SCREWS
3” LONG
36” x 16” x 3/4”
PLYWOOD OVER
FINISHED CEILING
EXISTING CONSTRUCTION

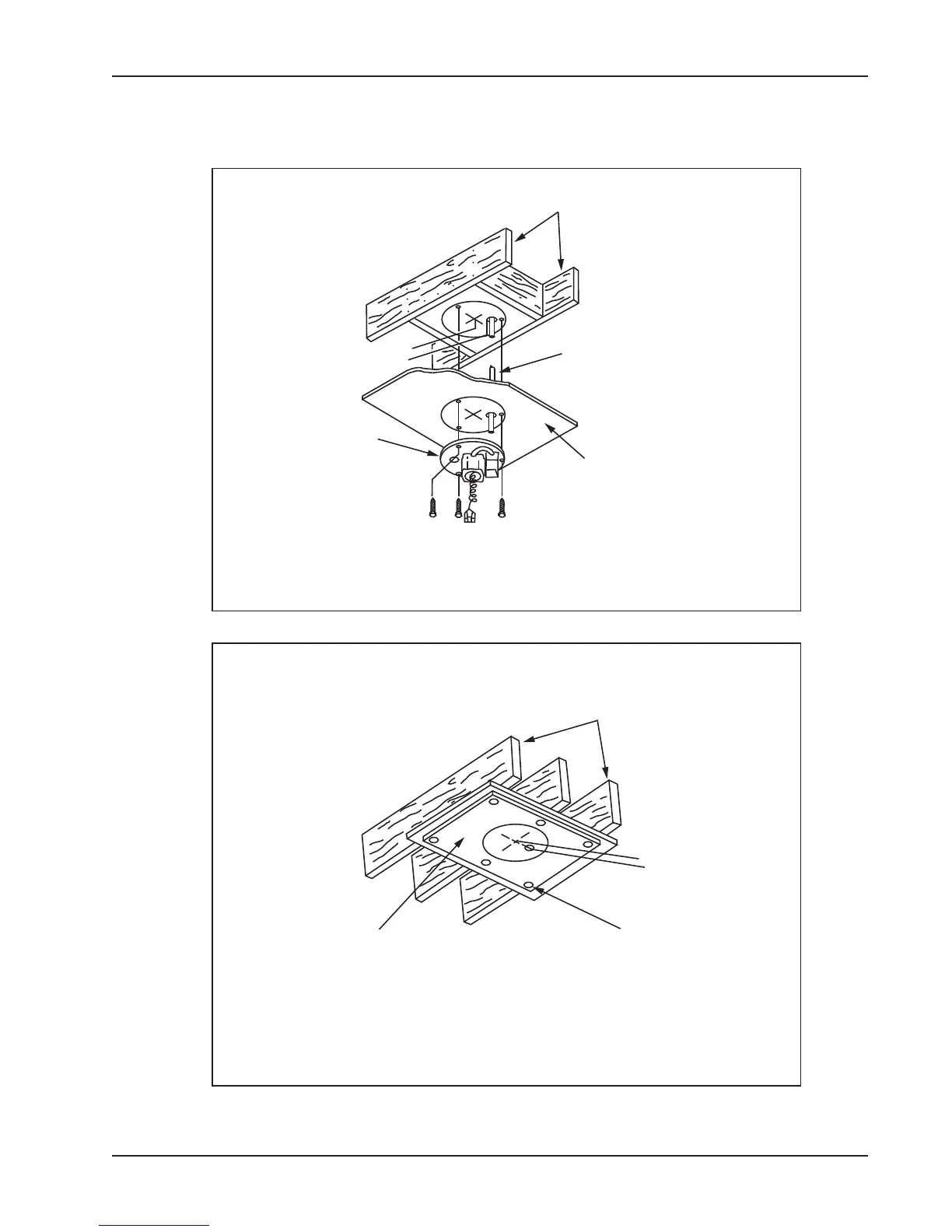

Suggested Installation on Wood Framed Ceiling
Figure 3
Figure 4
