7
12”
23 1/2”
21-1/2” - 26”
28”
TRAVEL

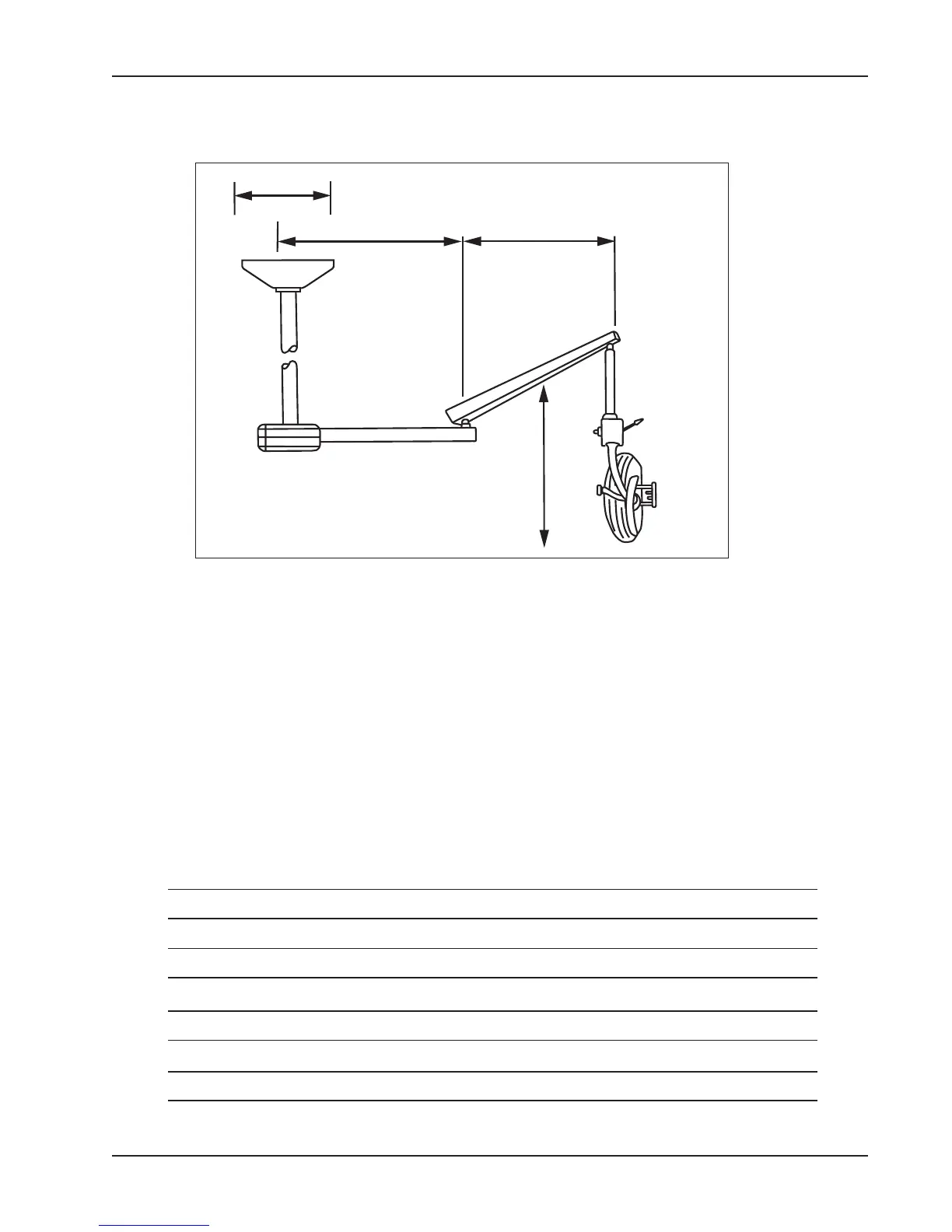

Dimensions
Location
A typical location for mounting the ceiling mount light is relation to the dental chair for a right-handed operator
is shown in Figure 2. Mounting for a left-handed operator would be mounted on the opposite side of the chair.
This mounting location can be altered to suit the individual’s preference or the building construction.
Height
The maximum ceiling height that can be accommodated by available suspension tubes is 10’-6”; the minimum
being 8’.
Refer to the chart for proper suspension tube to use.
Suspension Tube Chart
Ceiling Height
8’
8’6”
9’
9’6”
10’
10’6”
Tube Part No.
52R252-1
52R270-1
52R271-1
52R272-1
52R273-1
52R274-1
Length (inches)
17”
23”
29”
35”
41”
47”
Figure 1
