18
Yoke Pivot Friction Adjustment
Horizontal
Note: If the light head pivots too freely horizontally, an adjustment can be made as follows:
1. Remove the four screws located at the rear of the light head using a 7/64 hex head wrench. Remove the
rear cover (see gure 14). Adjust the tension screw until the desired tension is set.
2. Replace rear cover and install the four screws. The 2 longer screws go on top and the shorter screws go
on the bottom.

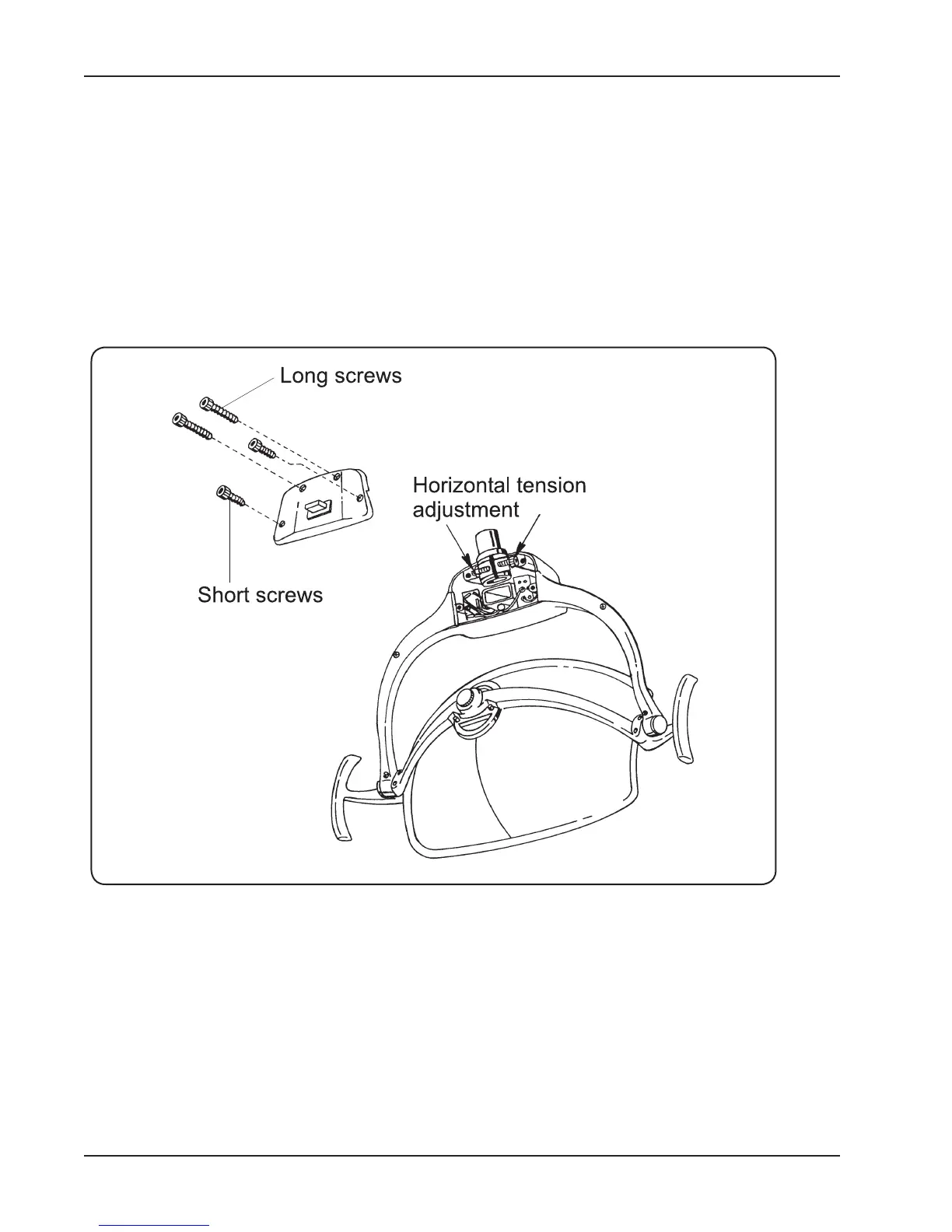

Figure 14
