ASSEMBLY INSTRUCTIONS

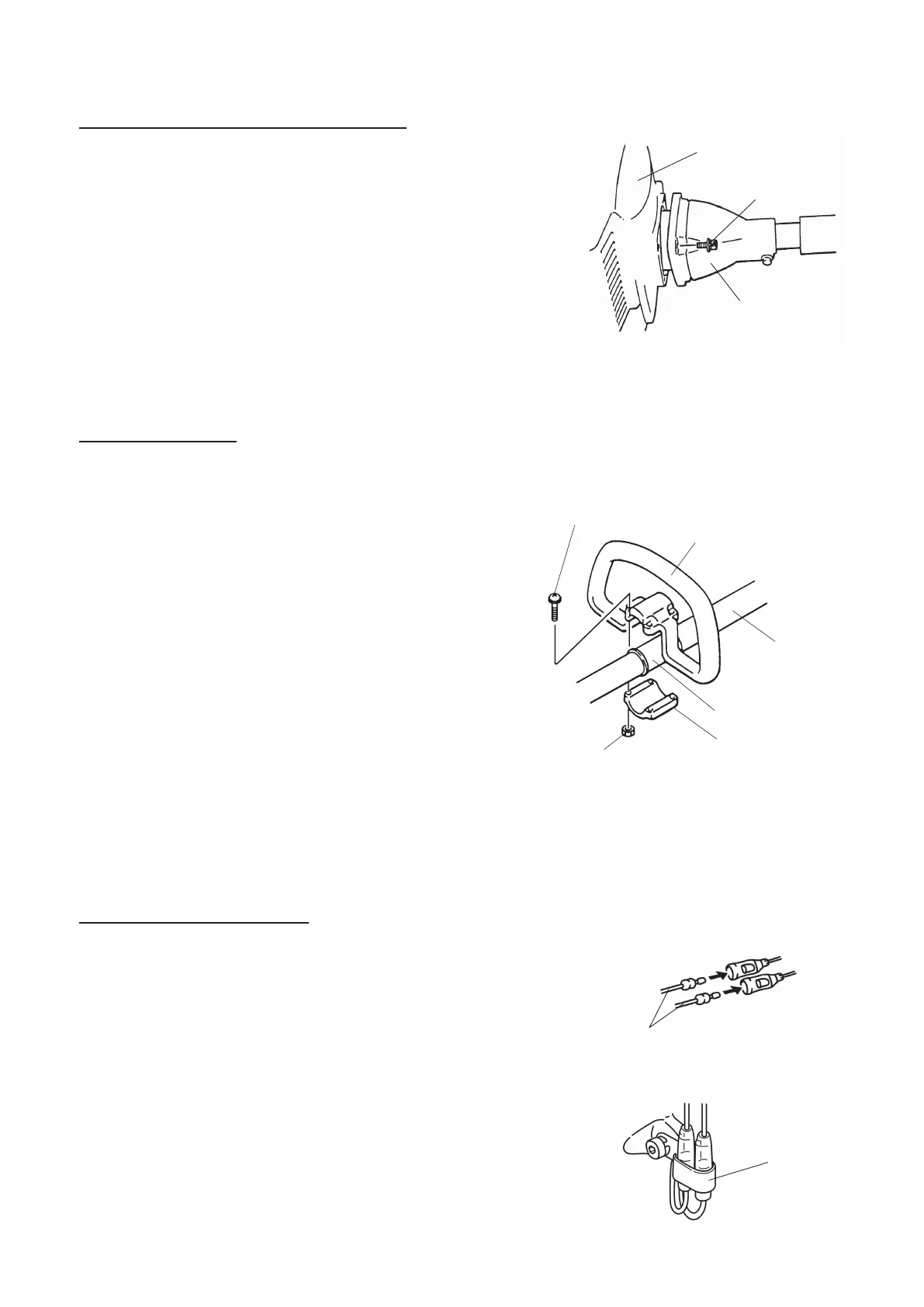

ENGINE AND SHAFT ASSEMBLY
Attach the clutch drum housing to the engine using the four screws.
LOOP HANDLE
1. Slip the rubber sleeve around the shaft assembly.
2. Rotate the rubber sleeve so the split is to one side.
3. Place the loop handle and the bottom clamp over the
rubber sleeve.
4. Install the four screws and nuts. Leave the screws
nger-tight.
5. Reposition the loop handle up or down the shaft
assembly to the most comfortable position, but don’t
over to the arrow mark.
6. Tighten the screws and nuts.
STOP SWITCH WIRING
1. Remove the lter cover.
2. Plug the stop switch wires into the matching connectors from the
engine.
Note that wire polarity is not important.
3. Lap and x the stop switch wires and connectors with clamp.
Engine
Clutch Drum Housing
Screw（4）
Stop Switch Wires
Clamp
Screw (4)
Loop Handle
Nut (4)
Bottom Clamp
Rubber Sleeve
Shaft Assembly
To Next Page
