Maruyama BC230 - Debris Shield

＿
US-4
＿

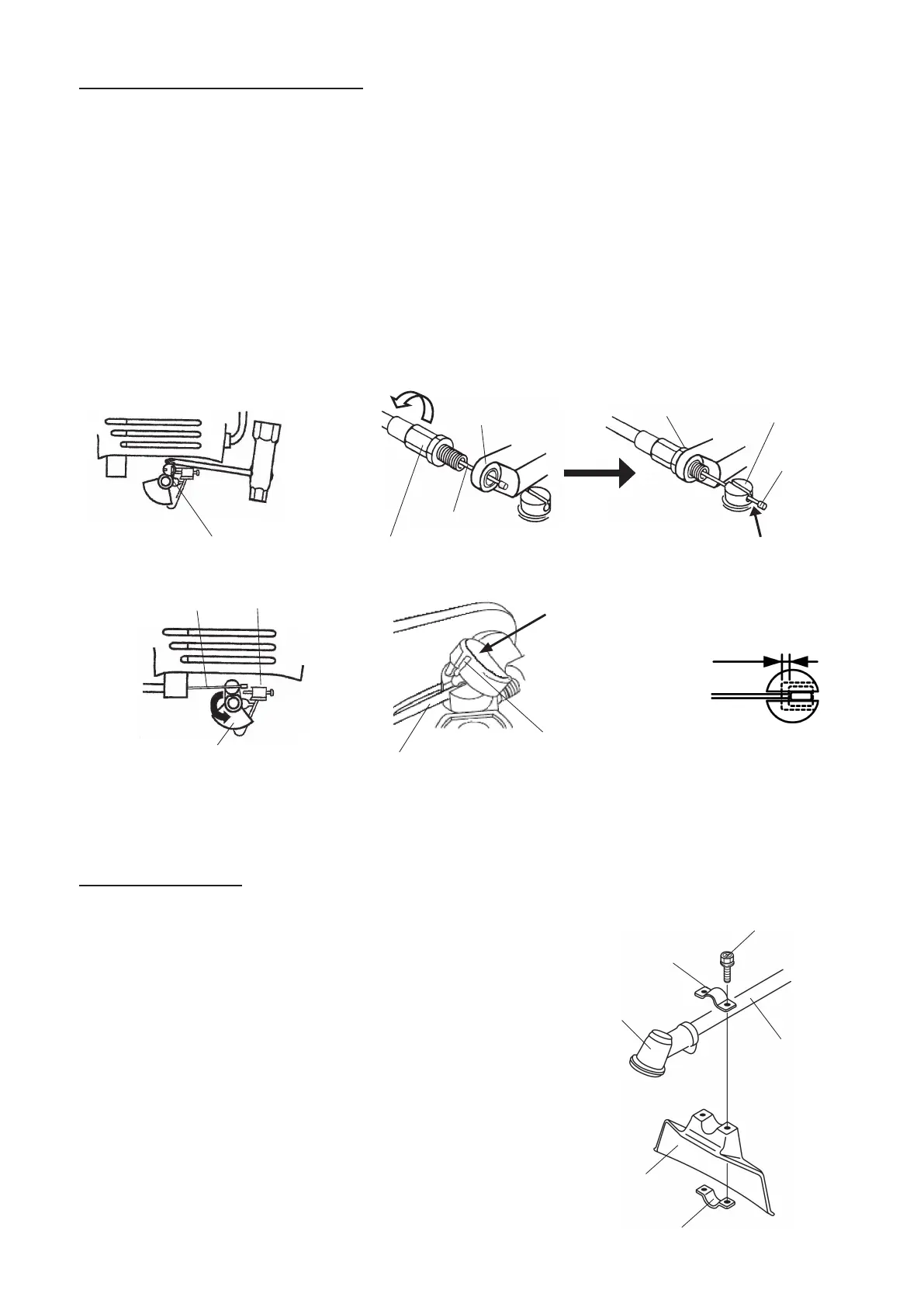

THROTTLE CABLE WIRING
1. Press up the bottom of the swivel ring to remove the swivel ring.
Note: Take care of falling the swivel ring in the engine when remove the swivel ring.
2. Insert the throttle cable through the bracket, then screw a cable adjuster sleeve into the bracket fully.
3. Position the slotted tting on the carburetor so the recessed hole for the cable lug is away from the cable
adjuster sleeve.
4. Rotate the carburetor throttle cam and slip the throttle cable through the slot in the slotted tting, making
sure the cable lug drops into the recessed hole.
5. Align the slot of the swivel ring with the throttle cable, then press down the swivel ring and x.
Note: Take care of falling the swivel ring in the engine when remove the swivel ring.
6. Operate the throttle trigger a few times to make sure that it works correctly.
7. Adjust the cable adjuster sleeve so the stop on the carburetor throttle cam just contacts the throttle stop
and the cable position keep 1-2mm play between cable lug and slotted tting when the throttle trigger is
fully depressed.
8. When the throttle cable is adjusted correctly, tighten the lock-nut.
INSTALLING DEBRIS SHIELD
DEBRIS SHIELD
Attach the debris shield to the shaft assembly as close to the
gearcase as possible with two M5x25 screws as shown.
1-2mm Play
Carburetor Throttle Cam
Throttle Cable
Cable Lug
Debris shield
Gearcase
Plate
M5×25
Screw (2)
Shaft
Assembly
Fitting
Cable Adjuster Sleeve
Throttle Cable
Bracket
Slotted Fitting
Cable Lug
Recessed Hole
Lock Nut
Swivel Ring
Slot (Swivel Ring)
PUSH
Throttle cable
