WARNING!
Before installing a Post Mount braking system, check that the
protection fi lm has been removed from the brake caliper.
WARNING!
The fastening screw thread of the disk brake caliper must
be screwed by at least 10 mm in the brake support of the
fork monolite. Make sure that the fastening screws are
not damaged and that they are tightened with a torque
spanner according to the specifi cations of the brake system
manufacturer. In any case tighten them by a max. tightening
torque of 10 Nm.

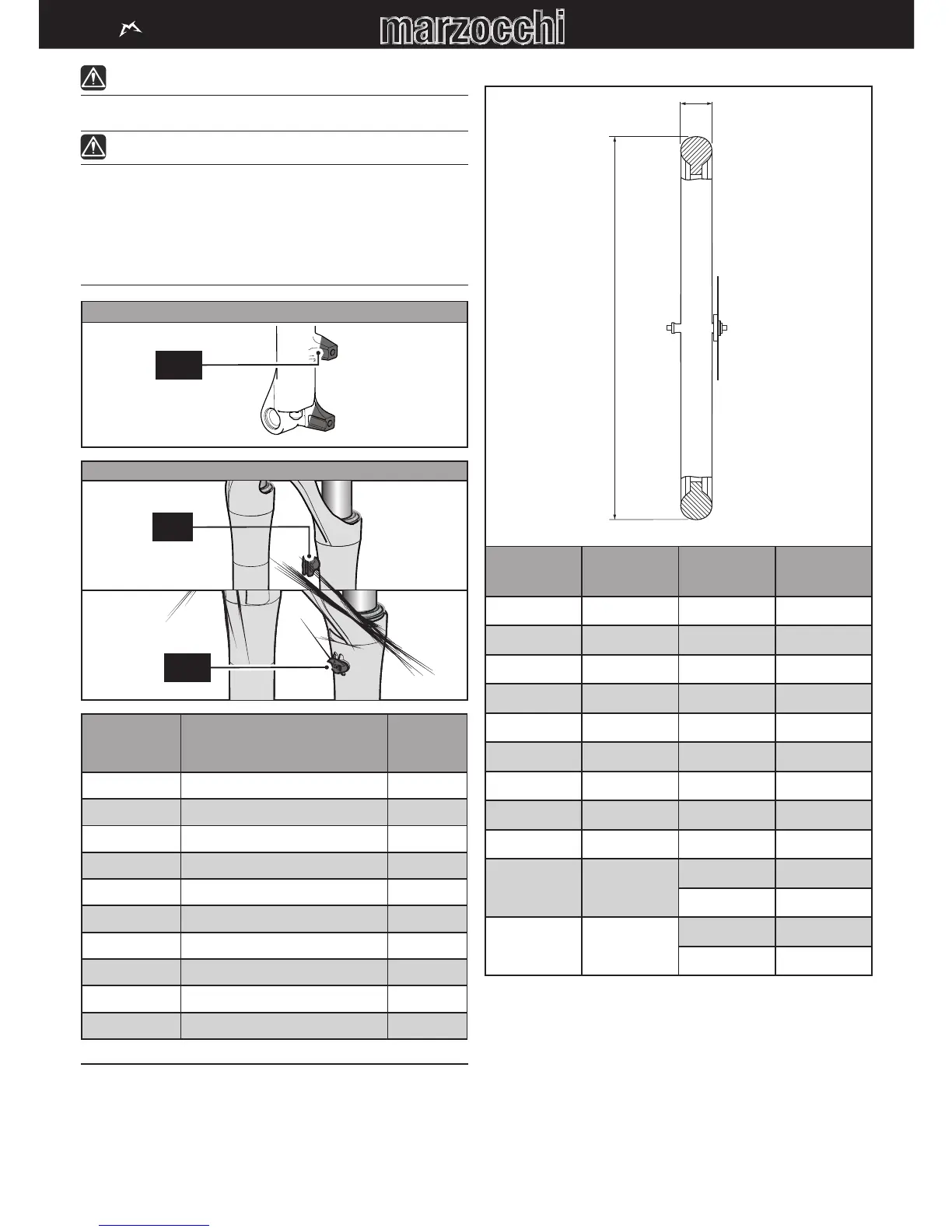

BRAKE DISK SYSTEM SETTING - POST MOUNT
4A
BRAKE DISK SYSTEM SHEATH SUPPORTS SETTING
4B
4C
Model Brake Disk System Setting
Max disk
dimension
1
320 Post Mount 6” (see Picture 4A / 4B) 185 mm
CORSA Post Mount 6” (see Picture 4A / 4C) 185 mm
MARATHON Post Mount 6” (see Picture 4A / 4C) 185 mm
44 Post Mount 6” (see Picture 4A / 4C) 203 mm
350 Post Mount 6” (see Picture 4A / 4B) 203 mm
55 Post Mount 6” (see Picture 4A / 4C) 203 mm
SLOPE CR Post Mount 6” (see Picture 4A / 4C) 203 mm
DIRT JUMPER Post Mount 6” (see Picture 4A / 4C) 203 mm
380 Post Mount 8” (see Picture 4A / 4B) 229 mm
888 Post Mount 8” (see Picture 4A / 4C) 229 mm
Table 4 - Brake system setting
1
Installation is only possible when the specifi c adapter is supplied by the brake system
manufacturer.
3.3 Wheel installation
D
L
Model
Wheel
Compatibility
L max D max
320 29” 29” 65 mm 750 mm
320 27,5” 27,5” 65 mm 710 mm
CORSA 26” 60 mm 684 mm
MARATHON 26” 60 mm 684 mm
44 29” 58 mm 744 mm
350 27,5” 65 mm 724 mm
55 26” 65 mm 692 mm
SLOPE CR 26” 65 mm 692 mm
DIRT JUMPER 26” 60 mm 684 mm
380 26” / 27,5”
75 mm 712 mm
68 mm 724 mm
888 26” / 27,5”
75 mm 712 mm
60 mm 720 mm
Table 5 - Maximum tire dimension
After installation, you must verify that the distance between the
infl ated tire and the lower part of the lower crown is at least four (4)
mm when the fork legs are fully compressed.
Before every use you must verify that:
The tire turns freely;•
The tire does not make any contact with the arch or the brake •
system.
