11
3.4 Wheel axle securing system
The wheel securing system on the fork monolite can be:
9mm QR,•
QR15 or QR20 quick release axle,•
ø20mm through axle.•
Model Wheel Axle
320
QR15
44
QR15
350 QR15
CORSA 9QR
MARATHON 9QR
55
QR20
SLOPE CR QR20
DIRT JUMPER
9QR - ø20mm
380
ø20mm
888
ø20mm

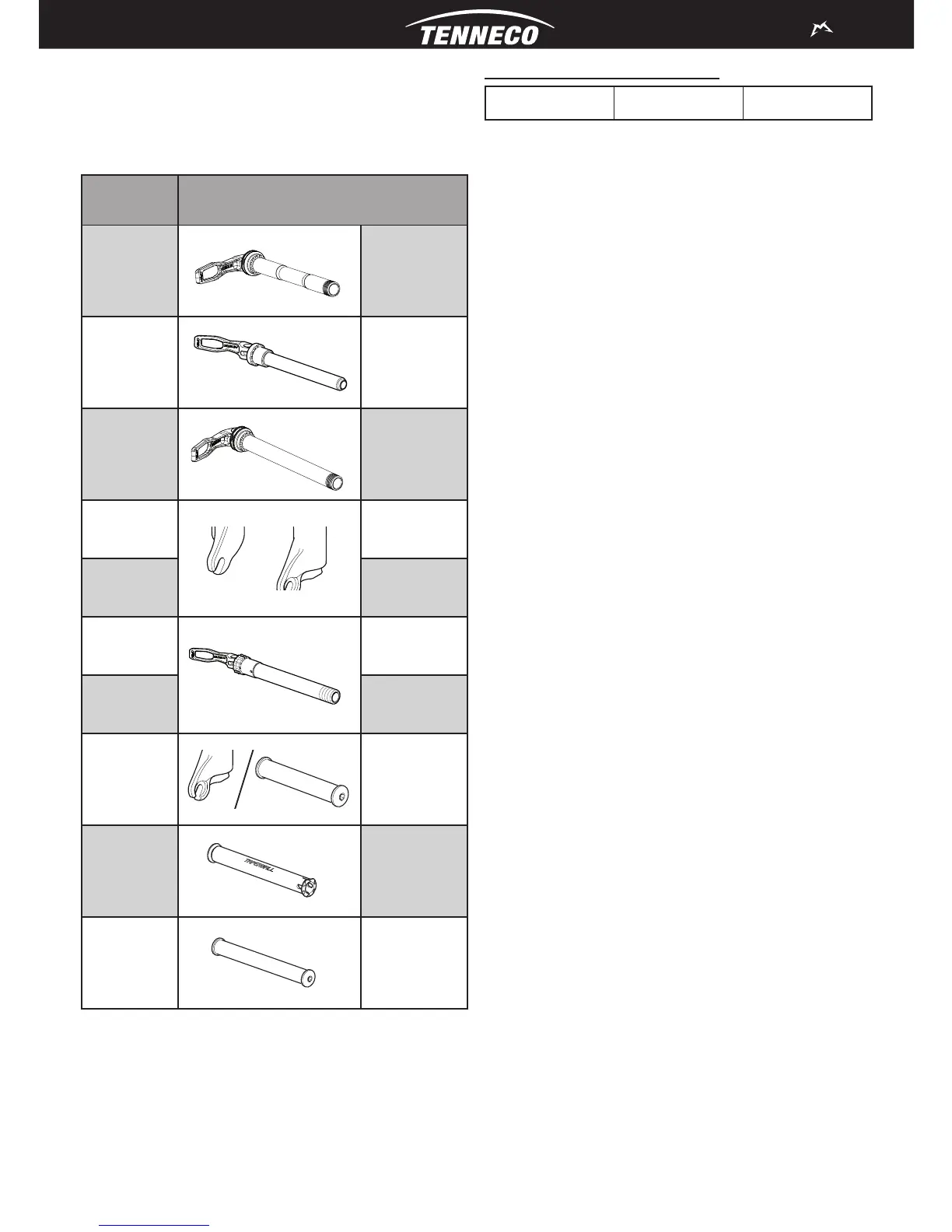

Table 6 - Wheel securing systems
3.4.1 - 9mm QR fork: wheel installation
CORSA MARATHON DIRT JUMPER
Install the wheel in compliance with the wheel manufacturer’s
instructions. For correct fork function after installing the wheel,
you will need to:
Check the fork-wheel alignment by fully compressing the fork •
a few times. The wheel should not make contact with, or come
close to any portion of the fork.
Lift the front of the bicycle, and spin the wheel a few times to verify •
correct alignment and spacing with the disk brake or the V-Brake
brake pads. Check the owner’s manual of the brake system for
the proper specifi cations.
