Masai K50 - Oil Pump; Removal

13 Oil pump
13.1 Removal
• To inspect or repair the oil pump, it is not
necessary to dismantle the engine.
• Remove the footboard on the right hand side
of the ATV.
• Remove the cylinder
• Remove the magneto (see explanation
in chapter 12)
• Remove the oil pump (see figure 45)

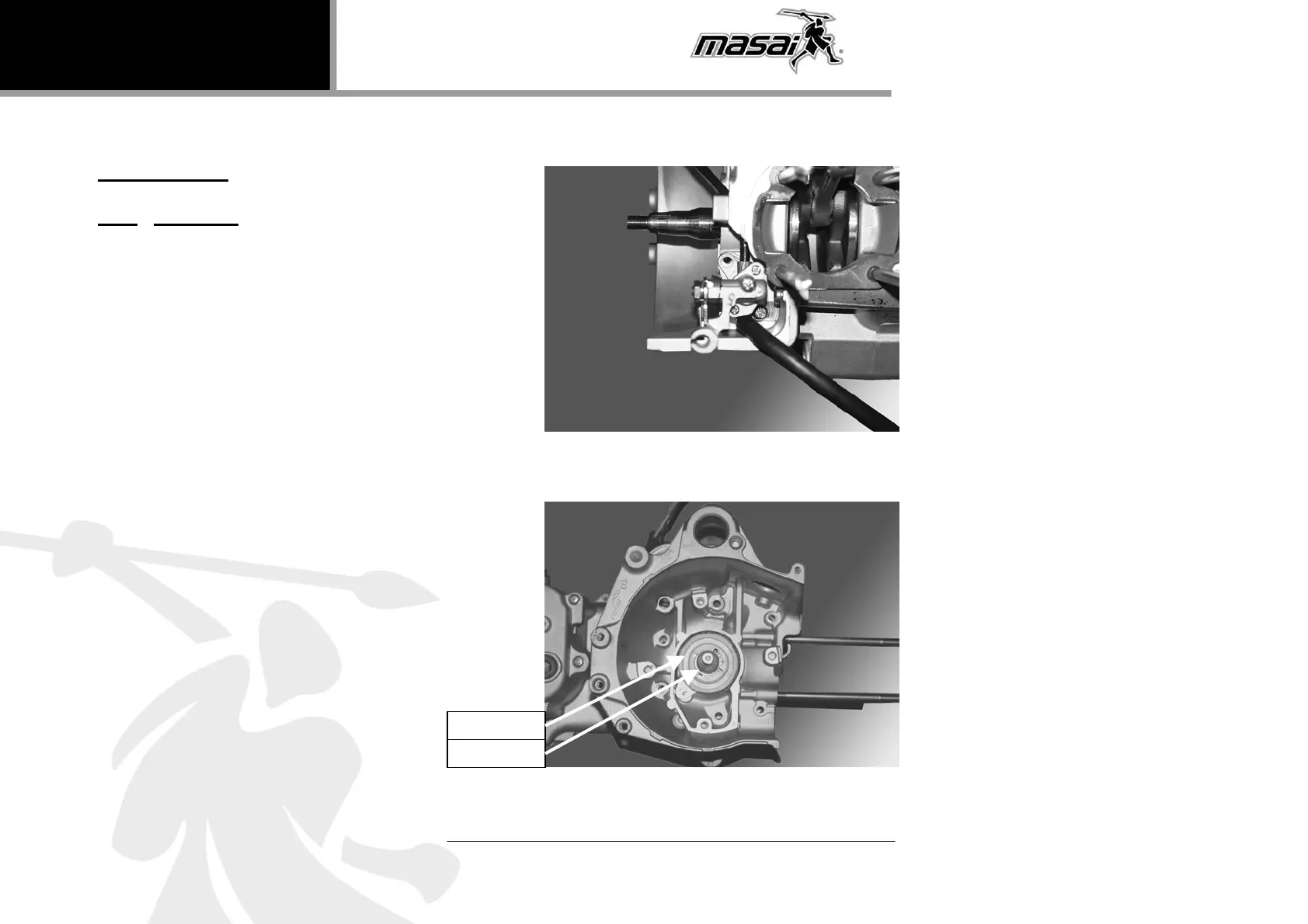

Figure 45: Oil pump
Worm
Washer
• Remove the washer and the
worm (see figure 46)
Figure 46: Oil pump removal
