19.3 Stator assembly
1) Source coil:
• Test the black/red wire for OHMS resistance.
Standard
: 800 OHMS ± 20%
• Test the black/red wire for voltage output.
Connect the positive (+) lead to the red/black
wire and the negative (-) lead to the ground.
Test for AC voltage while cranking.
Standard:
69 V ± 10%

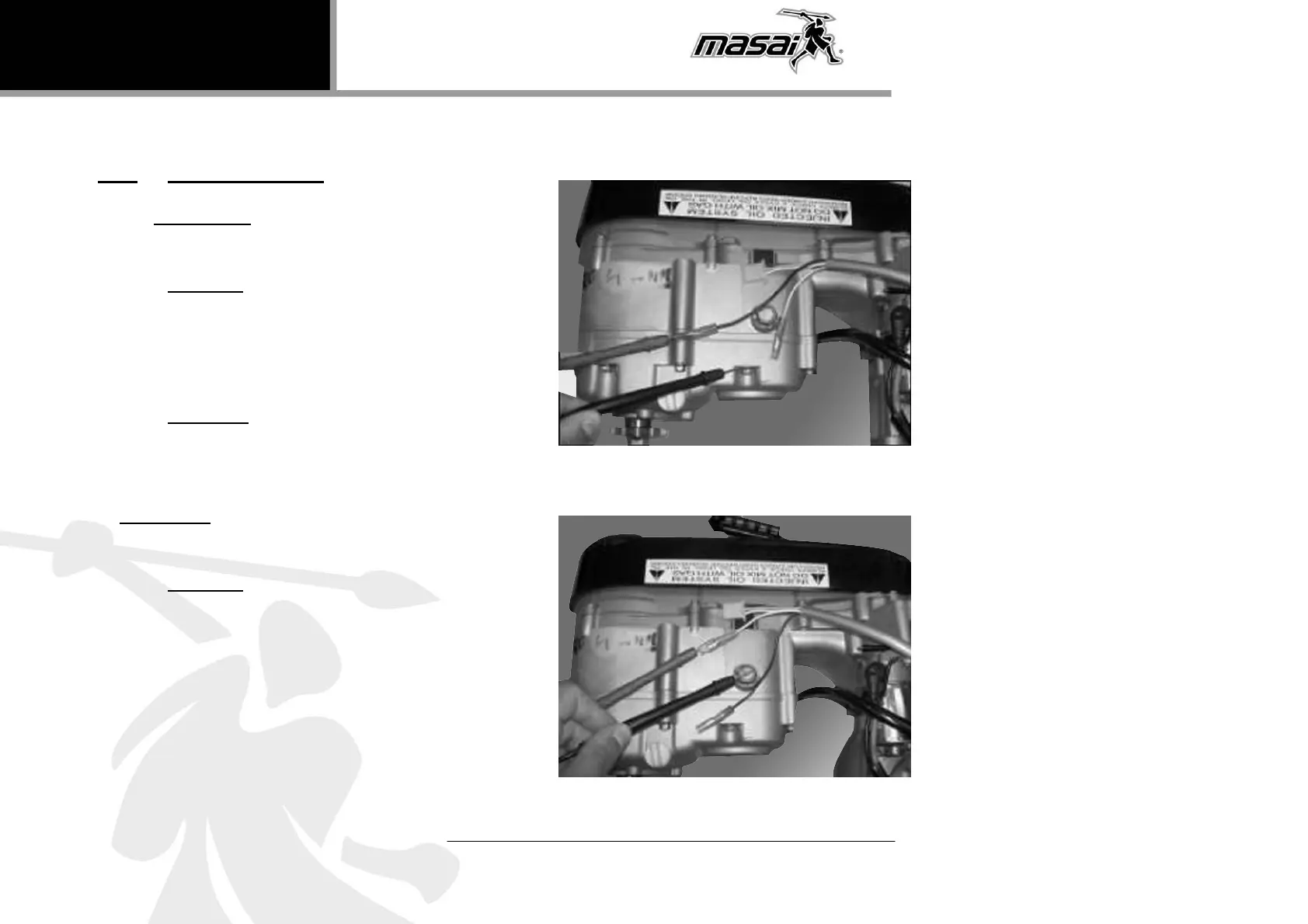

Figure 78: Source coil
2) Pulsar coil:
• Test the white/red wire for OHMS
Standard: 500 OHMS ± 20%
Figure 79: Pulsar coil
