Instruments and Controls

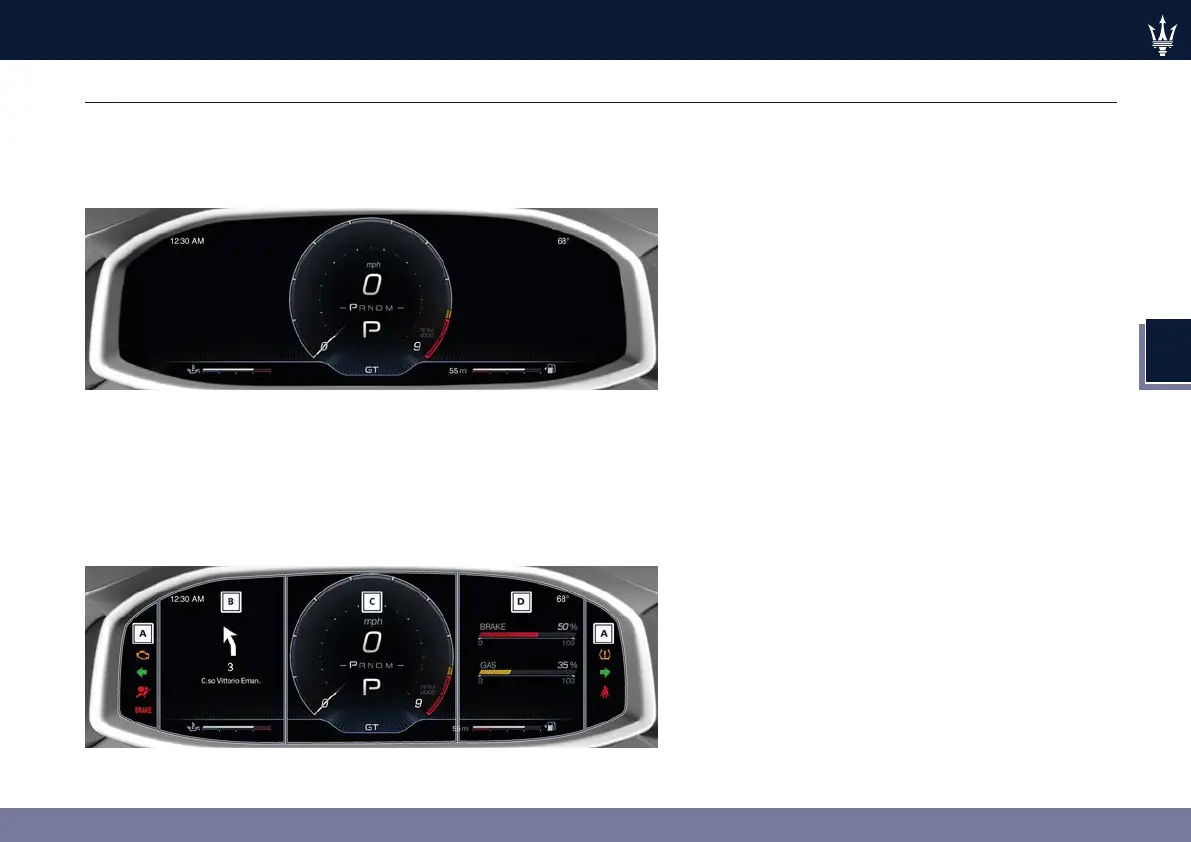

Instrument Cluster Overview
The vehicle is equipped with a full digital 10.25 inch instrument cluster with a TFT display with anti-glare and antireflection
surface treatment.
The user can interact with the instrument cluster only through the buttons located at the end of the multifunction levers
behind the steering wheel (see “Controls to Set and Configure the Instrument Cluster” in this section).
The layout of the instrument cluster consists of three TFT active sectors. In the lateral ones A are only displayed the hard
telltales, the central sector is configured with specific screen, depending on the drive mode selector position (see “Drive
Mode” in section “Starting and Driving”).
The central sector is divided into 3 macro areas (in the example of picture: SPORT mode).
B MENU area with vehicle info contents (trip, navigation instructions, etc.).
C MAIN INFO area with digital speedometer and current gear.
D VIEW area with performance contents and pop-up messages.
