8-23 Periodic Maintenance and Adjustment

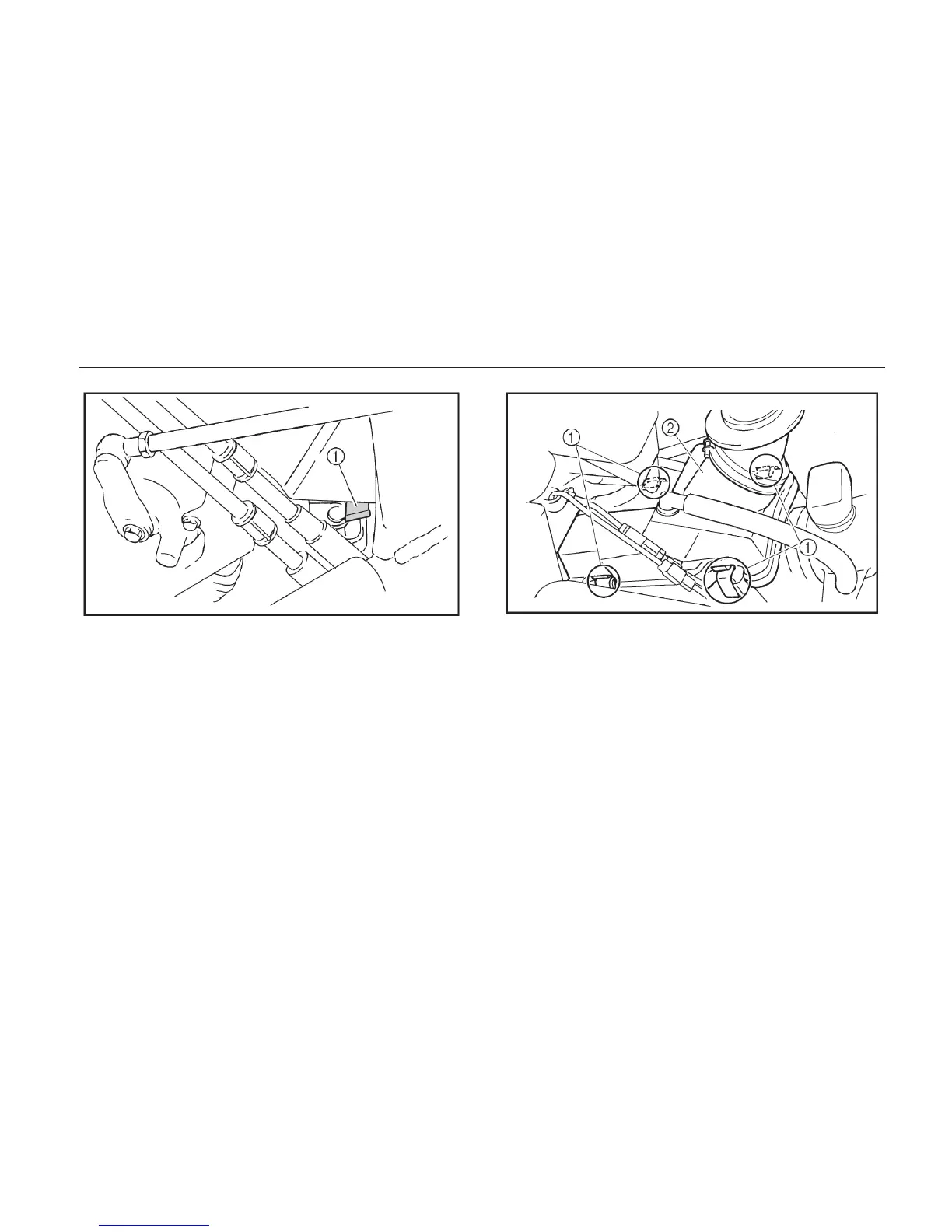

1. Air filter check hose
1. Remove the seats. (See pages 4-18 -
4-19 for seat removal and installation
procedures.)
2. Remove the console. (See page 8-9 for
console removal and installation
procedures.)
3. Remove the air filter case cover by
unhooking the holders.
1. Holder (×4) 2. Air filter case cover
4. Remove the air filter element.
5. Remove the sponge material from its
frame.
To Next Page
