Control Functions 4-26
Standard position: B
A-Minimum(soft)
E-Maximum(hard)

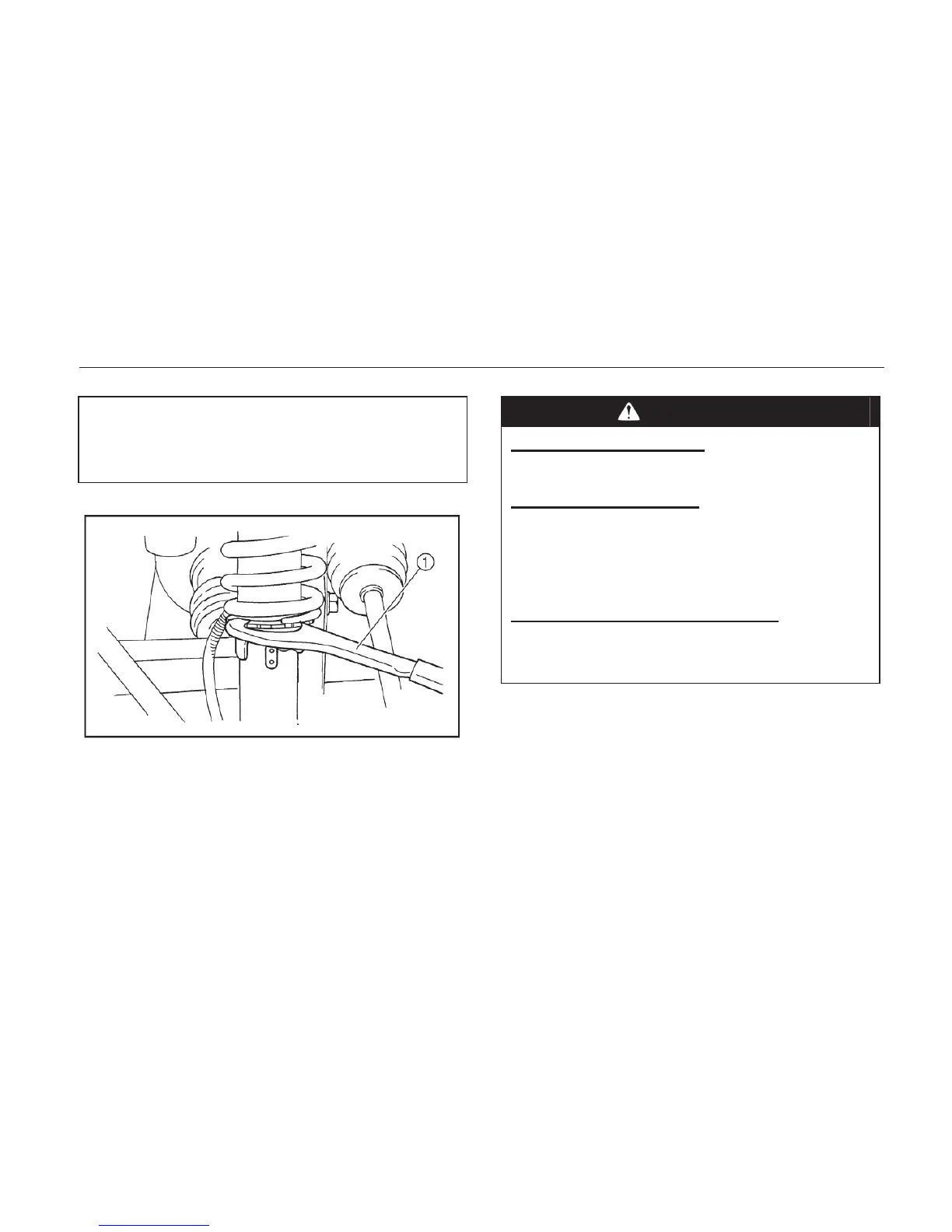

1. Special wrench
WARNING
POTENTIAL HAZARD
Improper shock absorber adjustment.
WHAT CAN HAPPEN
Uneven adjustment can cause poor
handling and loss of stability, which
could lead to an accident.
HOW TO AVOID THE HAZARD
Always adjust the shock absorbers on
the left and right side to the same setting.
4-25 Control Functions
Front and Rear Shock Adjustment
The spring preload can be adjusted to suit
the operating conditions.
You can reduce preload for a softer ride, or
increase preload if frequent bottoming out of
the UTV occurs.
CAUTION:
Frequent or severe bottoming out of the UTV
can cause increased wear or damage to the
vehicle.
Adjust the spring preload as follows.
To increase the spring preload, turn the
adjusting ring in direction .
To decrease the spring preload, turn the
adjusting ring in direction .
1. Spring preload adjusting ring
2. Position indicator
NOTE:
A special wrench can be obtained at a
service center to make this adjustment.
