4-11 Control Functions
On-Command Four-Wheel–Drive and
Differential Gear Lock Switches

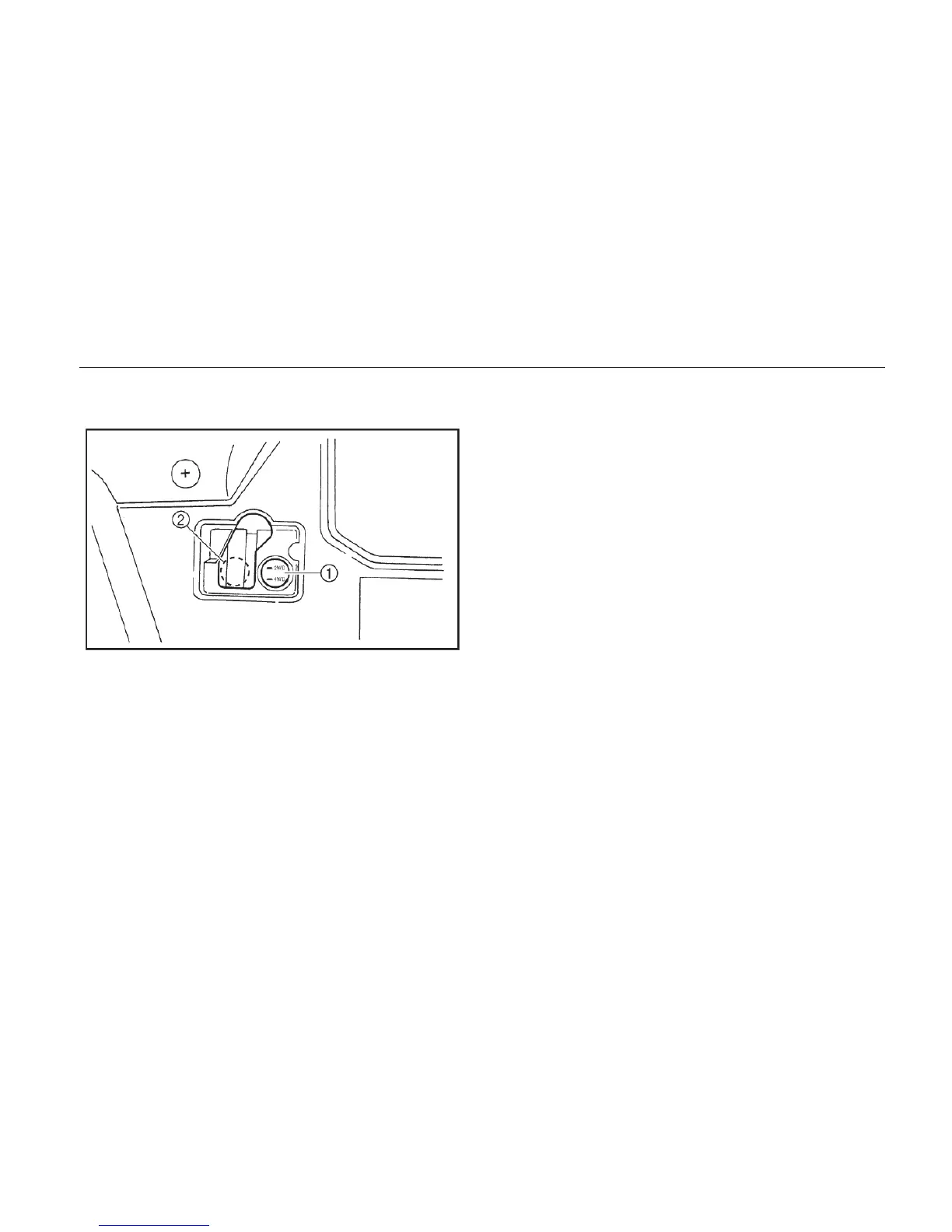

1. On-Command four-wheel –drive switch “2WD”/ “4 WD”
2. Differential gear lock switch “LOCK”/ “4WD”
This vehicle is equipped with an
On-Command four–wheel-drive switch
“2WD”/ “4WD”and a differential gear lock
switch “4WD”/ “LOCK”. Select the
appropriate drive according to terrain and the
conditions.
z Two-wheel drive (”2WD”): Power is sup-
plied to the rear wheels only.
z Four-wheel drive (“4WD’): Power is
supplied to the rear and front wheels.
z Four–wheel drive with the differential
gear locked (“4WD-LOCK”): Power is
supplied to the rear and front wheels
when the differential gear is
locked.Unlike the 4WD mode, all wheels
turn at the same speed regardless of
traction.
