Control Functions 4-18
Seats

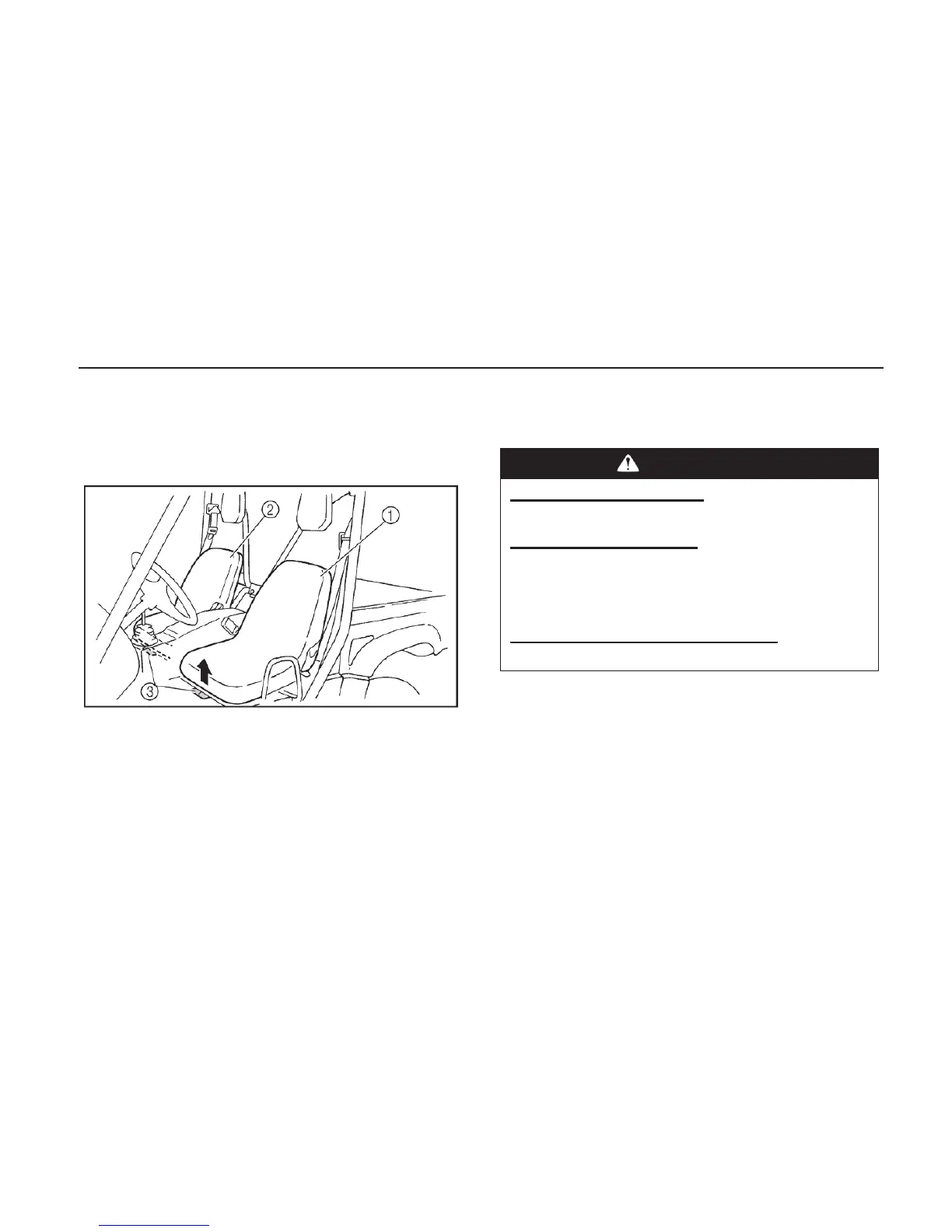

To remove a seat, pull its seat lock lever
upward, lift the front of the seat, and then
slide the seat forward and up.
1. Driver seat 2. Passenger seat
3. Seat lock lever (×2)
To install a seat, insert the projection on the
rear of the seat into the seat holders and
push down on the seat at the front.
WARNING
POTENTIAL HAZARD
A loose seat.
WHAT CAN HAPPEN
The operator could lose control or the
operator or passenger could fall if the
seat is loose during operation.
HOW TO AVOID THE HAZARD
Make sure the seat is securely latched.
