Periodic Maintenance and Adjustment 8-44

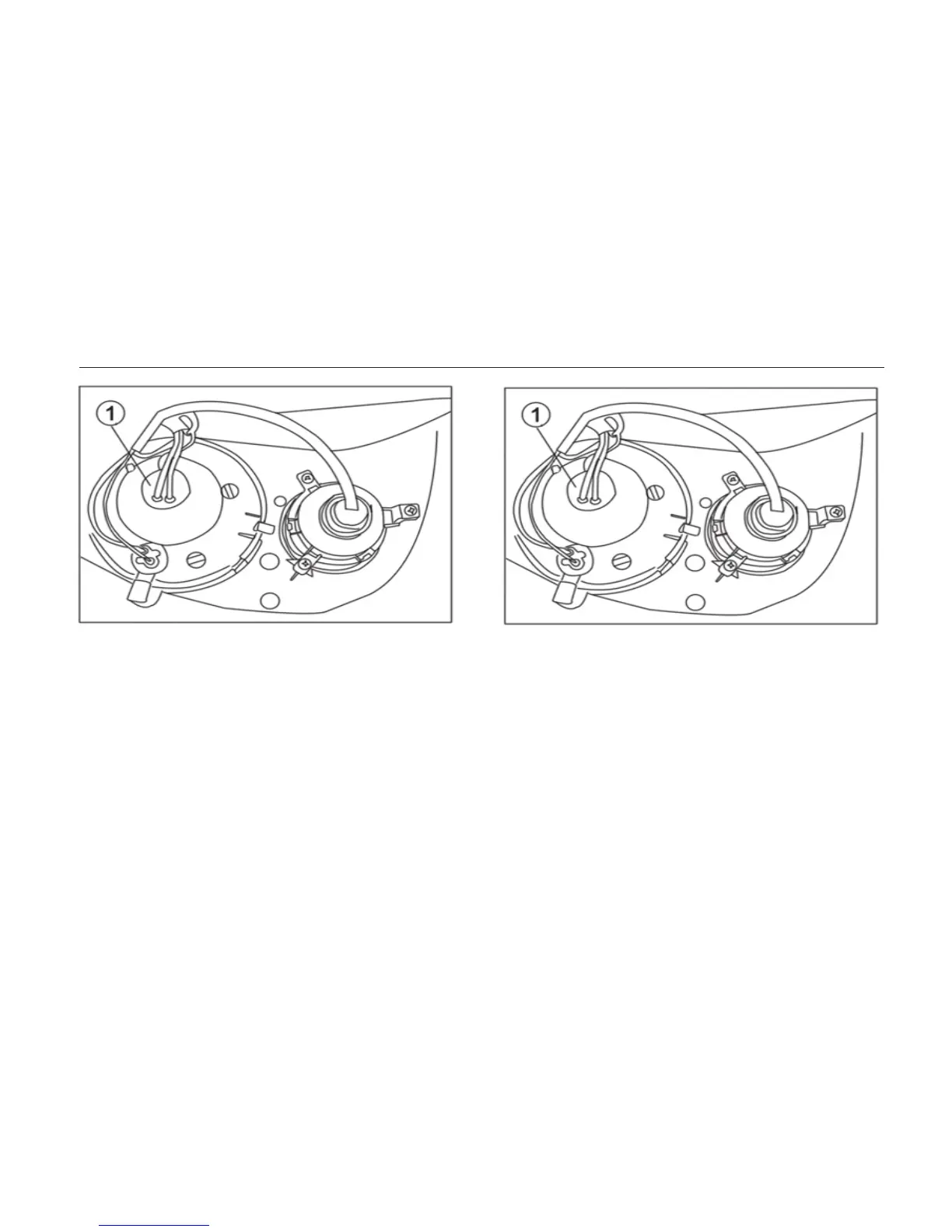

1. Headlight bulb holder cover

4. Remove the headlight bulb holder by

pushing it in and turning it

counterclockwise.

1. Headlight bulb holder

5. Remove the defective bulb by pulling it

out.
