8-47 Periodic Maintenance and Adjustment

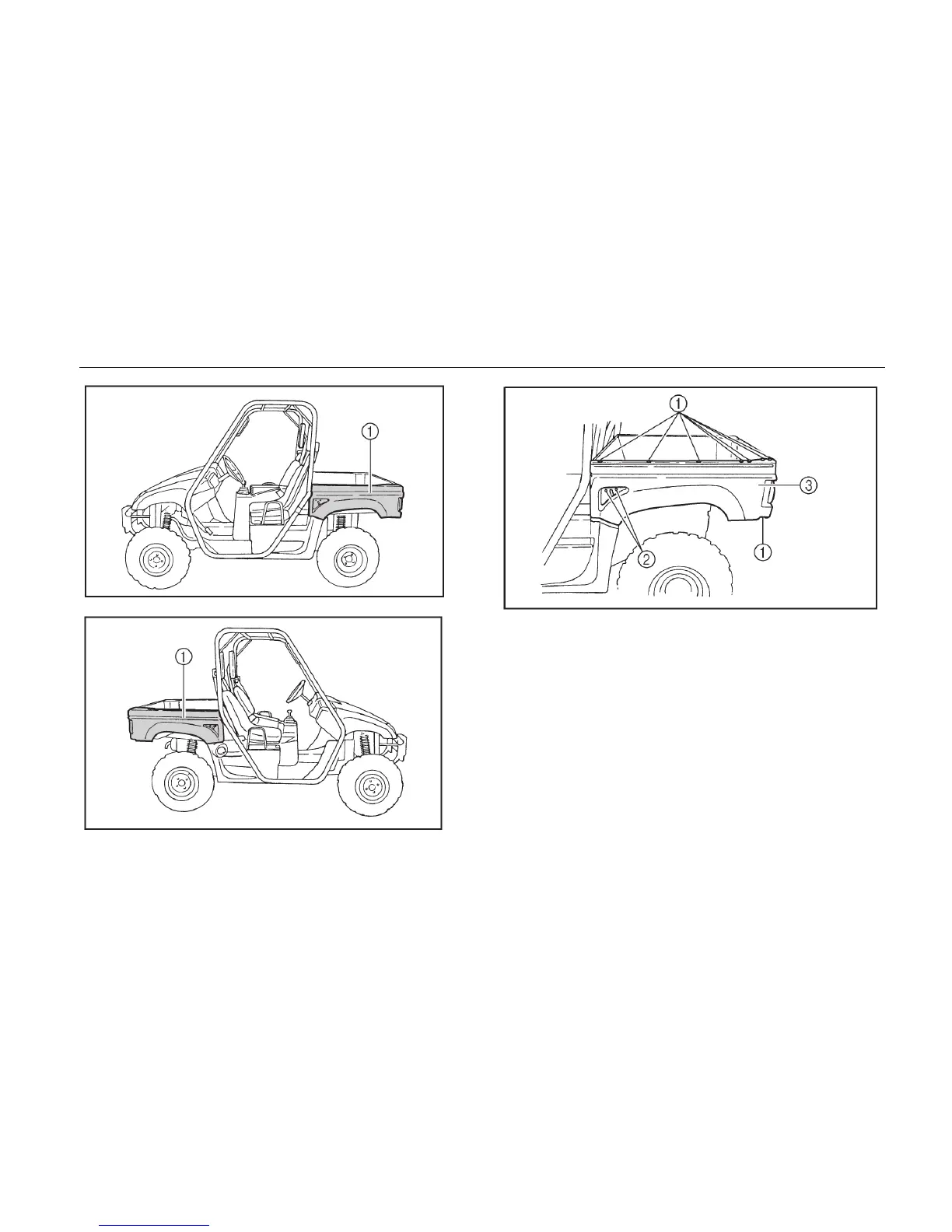

1. Panel A

1. Panel B

1. Quick fastener（×8） 2. Bolt（×2）

3. Panel A

2. Remove the bulb holder（together with

the bulb）by turning it counterclockwise.
