PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 30 minutes
ToolsRequiredforAssembly(notincluded):Phillipsscrewdriver,adjustablewrench,andpliers.
ASSEMBLY INSTRUCTIONS

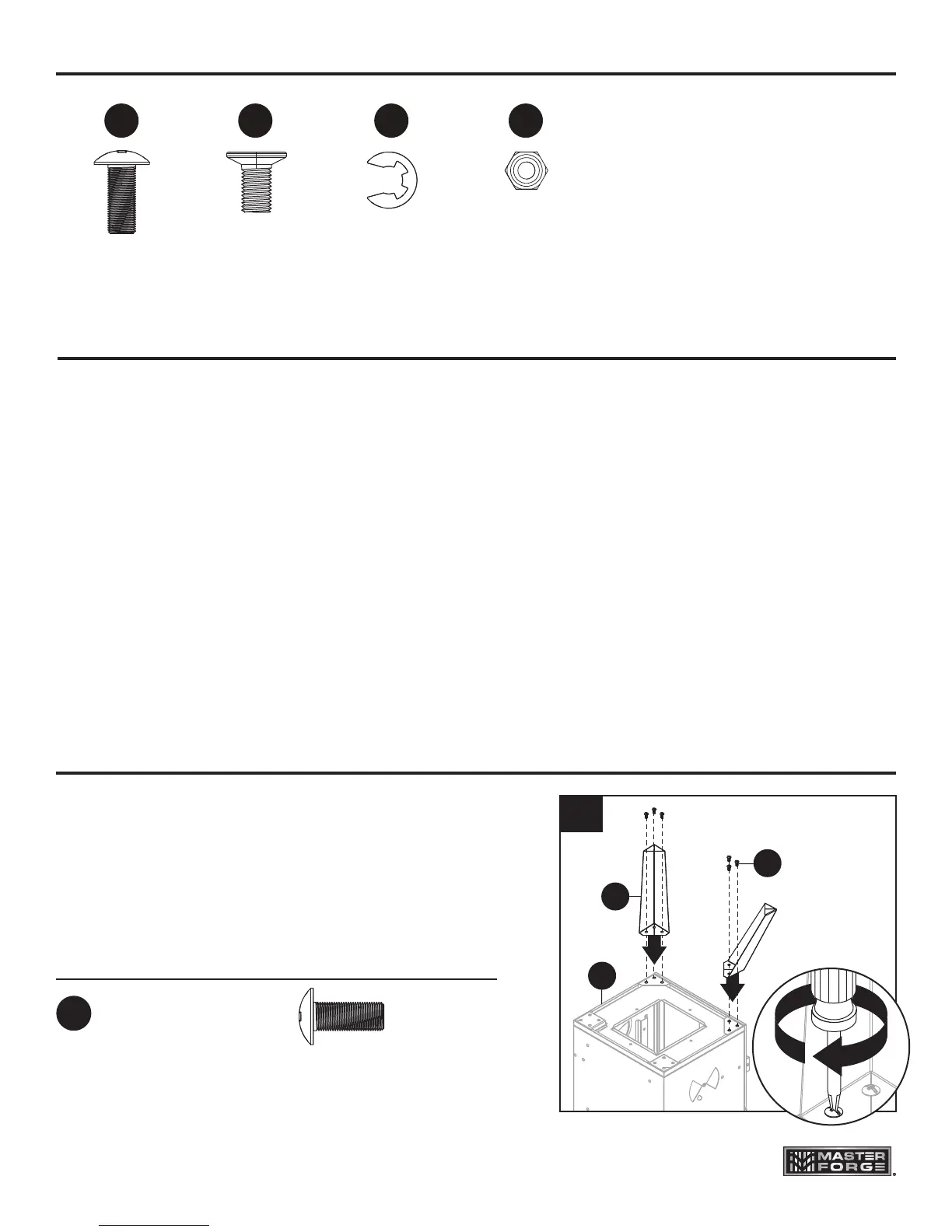

1. Turnthesmokerbody(K)upsidedown.Align
the legs (N) on the front corners of the smoker
body(K).SecurewithsixM6x12bolts(AA).
Tighten all bolts.
1
1
2
N
K
1
AA
Hardware Used
M6x12Bolt x6
AA
M6x12 Bolt
Qty. 34
M5x12 Bolt
Qty. 8
Spring Clip
Qty. 2
M5 Nut
Qty. 2
AA
BB CC
DD
M6x12 Bolt
Qty. 34
M5x12 Bolt
Qty. 8
Spring Clip
Qty. 2
M5 Nut
Qty. 2
AA
BB CC
DD
HARDWARE CONTENTS (shown actual size)
