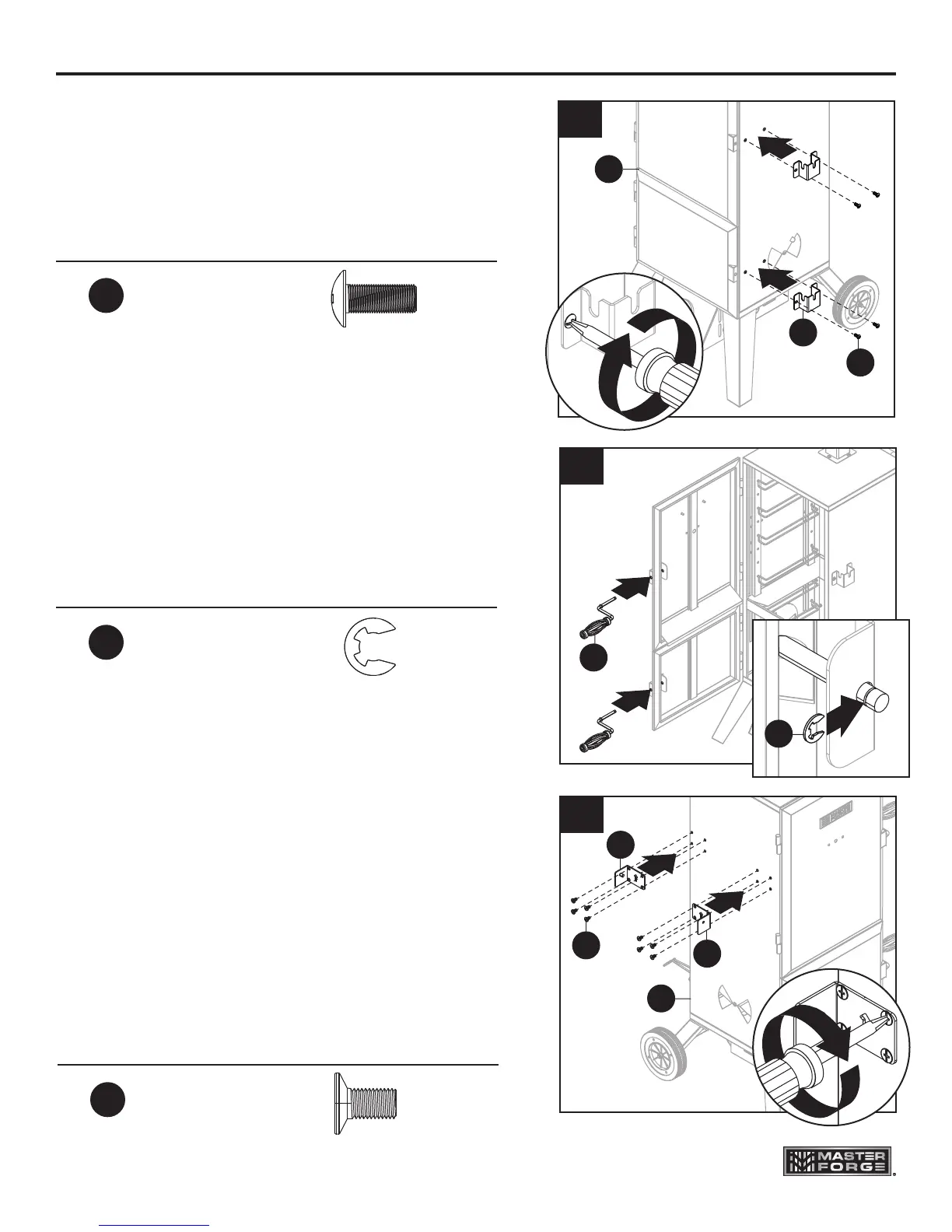

11. Align the door locking brackets (I) with the holes
ontherightsideofthesmokerbody(K).Secure
each bracket with two bolts (AA). Tighten all
bolts.
12. Open doors (U, V). Slide door handle (J)
through brackets in door. Using pliers, slide
a spring clip (CC) over the groove in the door
handle as shown. Make sure both of the spring
clips are securely attached in the grooves of the
handles.
13. Align the side table rear support (C) and side
table front support (B) on side of smoker body
(K).Arrowscutoutofthesupportsindicatethe
correct position of the support. Secure each
supportwithfourM5x12bolts(BB).Tightenall
bolts.
NOTE: Side Table Supports (C, B) will be used
for left side table placement.
Hardware Used
M6x12Bolt
x4
AA
M6x12 Bolt
Qty. 34
M5x12 Bolt
Qty. 8
Spring Clip
Qty. 2
M5 Nut
Qty. 2
AA
BB CC
DD
Hardware Used
Spring Clip
x2
CC
M6x12 Bolt
Qty. 34
M5x12 Bolt
Qty. 8
Spring Clip
Qty. 2
M5 Nut
Qty. 2
AA
BB CC
DD
Hardware Used
M5x12Bolt
x8
BB
M6x12 Bolt
Qty. 34
M5x12 Bolt
Qty. 8
Spring Clip
Qty. 2
M5 Nut
Qty. 2
AA
BB CC
DD
