Master Forge MFX784BDP User Manual

9
ASSEMBLY INSTRUCTIONS
Lowes.com/masterforge
1
2
E
AA
10
K
T
9
1
3
2
K
T
8
T

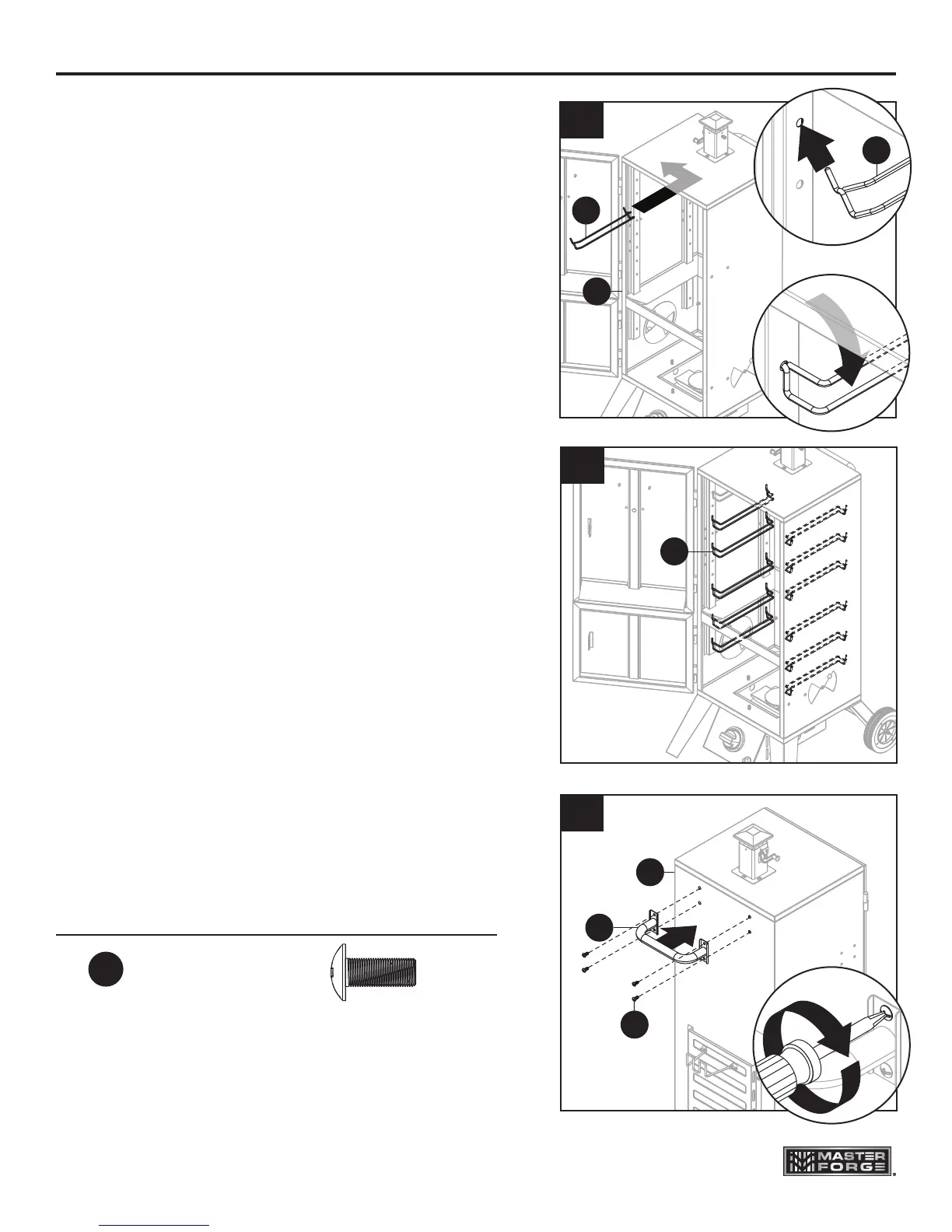

8. Insert the cooking grate support (T) into the
correspondingholesinsidethesmokerbody(K)
from the bottom up.
9. Repeat step 8 for the remaining cooking grate
supports (T).
NOTE: There are 8 positions to install the
cooking grate supports. The cooking grate
supports can be installed into positions according
to the need of the owner.
10. Align rear handle (E) with holes on the back of
smokerbody(K).SecurewithfourM6x12
bolts (AA). Tighten all bolts.
Hardware Used
M6x12Bolt
x4
AA
M6x12 Bolt
Qty. 34
M5x12 Bolt
Qty. 8
Spring Clip
Qty. 2
M5 Nut
Qty. 2
AA
BB CC
DD
