Master Forge MFX784BDP User Manual

8

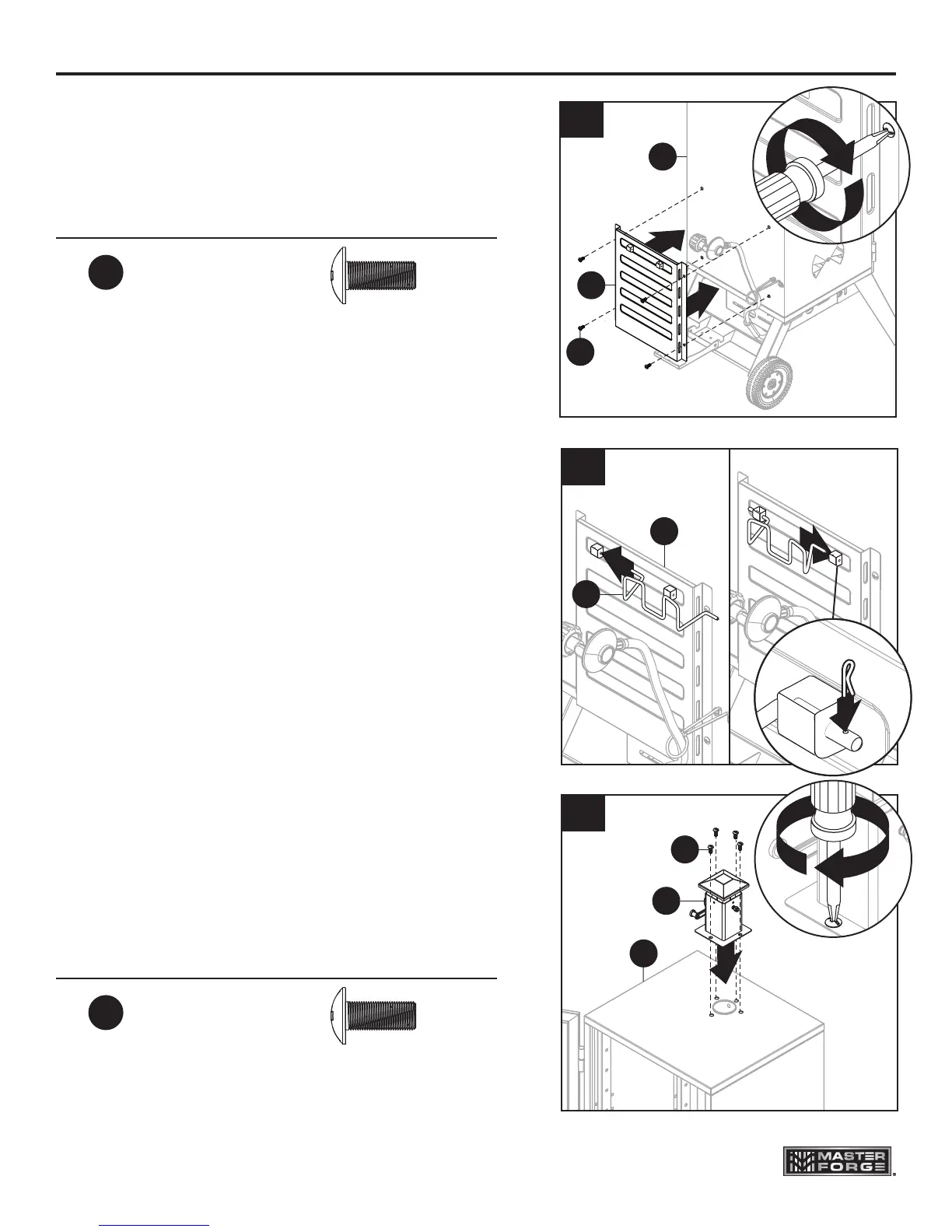

ASSEMBLY INSTRUCTIONS
Lowes.com/masterforge
7. Open the upper door (U). Position the smoke
stack (D) with control arm to the left as shown.
UsingfourM6x12bolts(AA),securesmoke
stack(D)tothetopofsmokerbody(K).Tighten
all bolts.
6. Remove pre-assembled cotter pin from the tank
retention wire (G). Attach the ends of the tank
retention wire (G) on the back of the tank heat
shield (H) as shown, then insert the cotter pin.
5. Align the tank heat shield (H) on the back of the
smokerbody(K).SecurewithfourM6x12
bolts (AA). Tighten all bolts.
1
2
D
K
7
AA
G
6
H
1
1
2
H
5
K
AA
Hardware Used
M6x12Bolt
x4
AA
M6x12 Bolt
Qty. 34
M5x12 Bolt
Qty. 8
Spring Clip
Qty. 2
M5 Nut
Qty. 2
AA
BB CC
DD
Hardware Used
M6x12Bolt
x4
AA
M6x12 Bolt
Qty. 34
M5x12 Bolt
Qty. 8
Spring Clip
Qty. 2
M5 Nut
Qty. 2
AA
BB CC
DD
