MEASURING RESISTANCE
1.
2.
3.
4.
Connect the black test lead to the "COM" terminal and
the red test lead to the "INPUT" terminal.

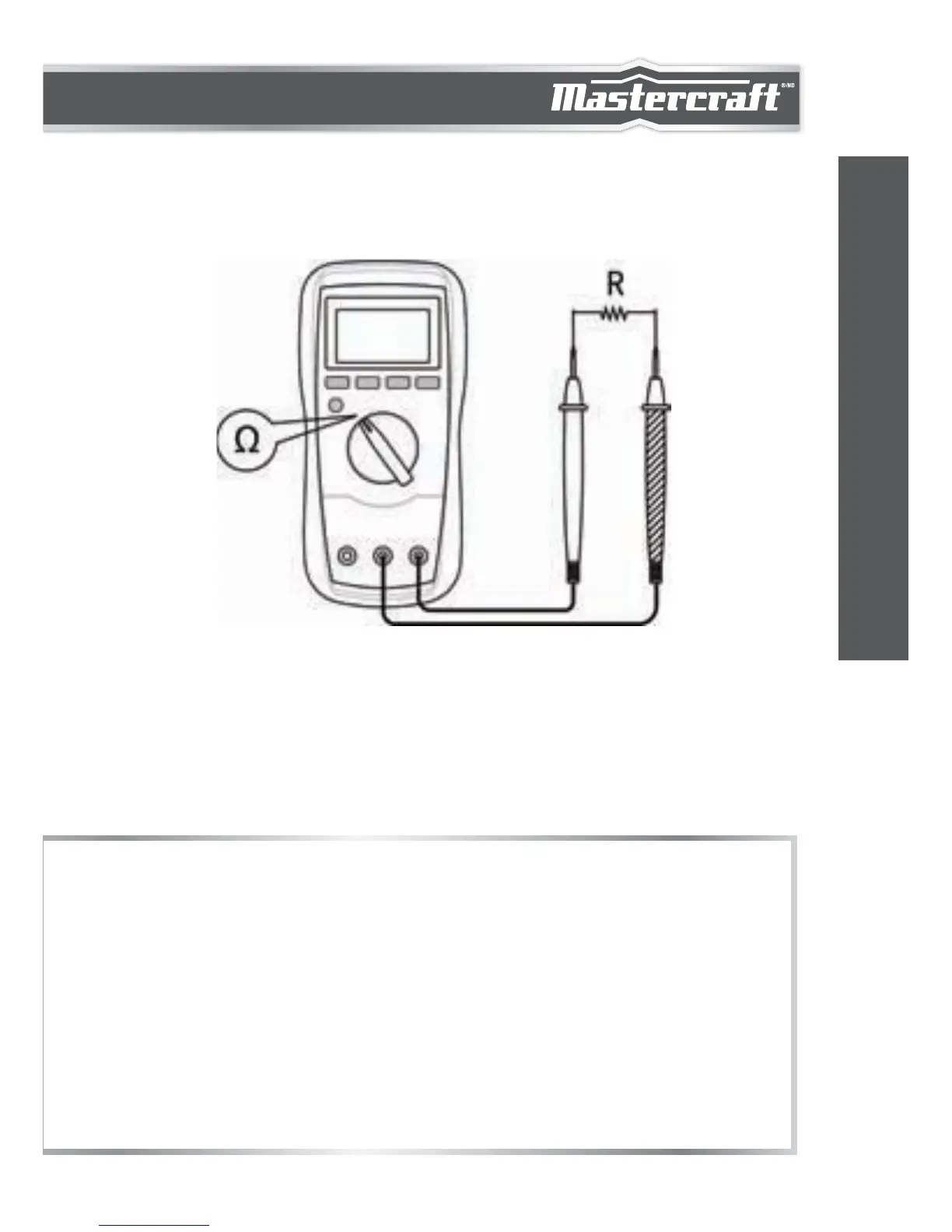

Set the function switch to Ω position.
Connect the test leads across the object to be tested.
Read the reading on the display.
1.
2.
3.
4.
For measurements > 1 M, the meter may take a few seconds
to stabilize reading. This is normal for high resistance measurements.
When the input is not connected, i.e. at open circuit, "OL" will be
displayed as an overrange indication.
Before measurement, disconnect all power to the circuit to be
tested and discharged all capacitors thoroughly.
In manual range mode, when the display shows “OL”, a higher
range should be selected.
NOTE:
24
OPERATING INSTRUCTIONS
